SF32LB56xV - Hardware Design Guide¶

Introduction¶

The primary purpose of this document is to assist developers in the development of watch solutions based on the SF32LB56xV series of chips. This document focuses on hardware design considerations during the development process, aiming to minimize the workload of developers and shorten the product’s time to market.

The SF32LB56xV chip is a highly integrated, high-performance system-on-chip (SoC) MCU designed for ultra-low-power artificial intelligence of things (AIoT) applications. The chip innovatively adopts a big.LITTLE architecture based on the ARM Core-M33 STAR processor, and integrates the industry’s highest-performance 2.5D graphics engine, an artificial intelligence neural network accelerator, and Bluetooth Low Energy 5.3. It can be widely used in various applications, including wearable electronic devices, smart mobile terminals, and smart home devices.

The SF32LB56xV chip’s processor peripheral resources are as follows:

120 GPIOs
6x UART
7x I2C
5x GPTIM
4x SPI
1x I2S audio interface
2x SDIO storage interface
1x differential analog audio output
1x differential analog audio input
Supports single/dual/quad data line SPI display interface, DBI 8080, DPI, and serial/parallel JDI display interfaces
Supports displays with and without GRAM
Supports SWD and UART for downloading and software debugging

Packaging¶

Packaging Introduction¶

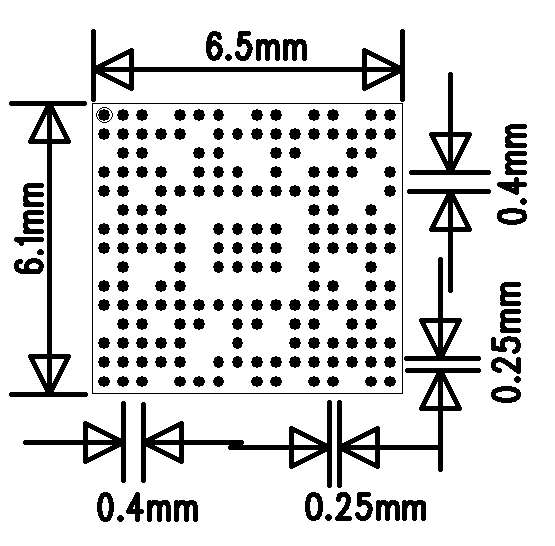

The packaging information for the SF32LB56xV is shown in Table 2-1.

Table 2-1 Packaging Information List

Package Name	Size	Pin Pitch	Ball Diameter
WBBGA175	6.5x6.1x0.94 mm	0.4 mm	0.25 mm

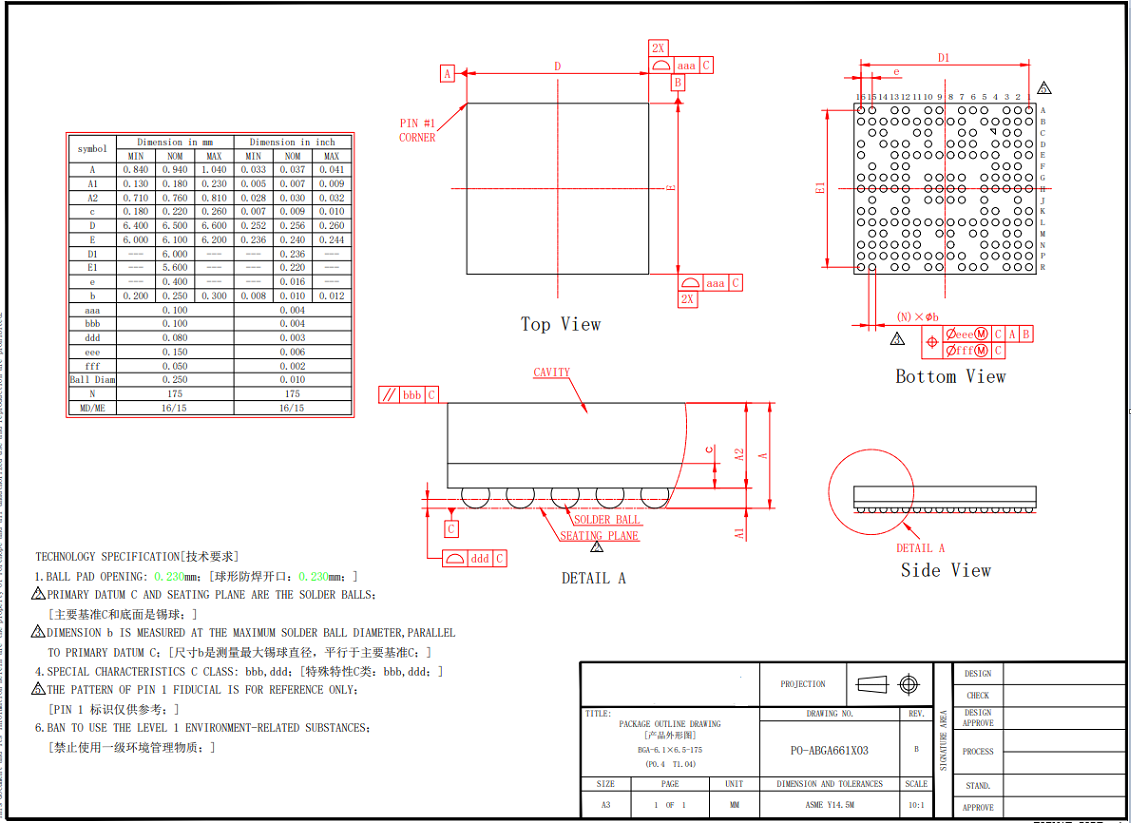

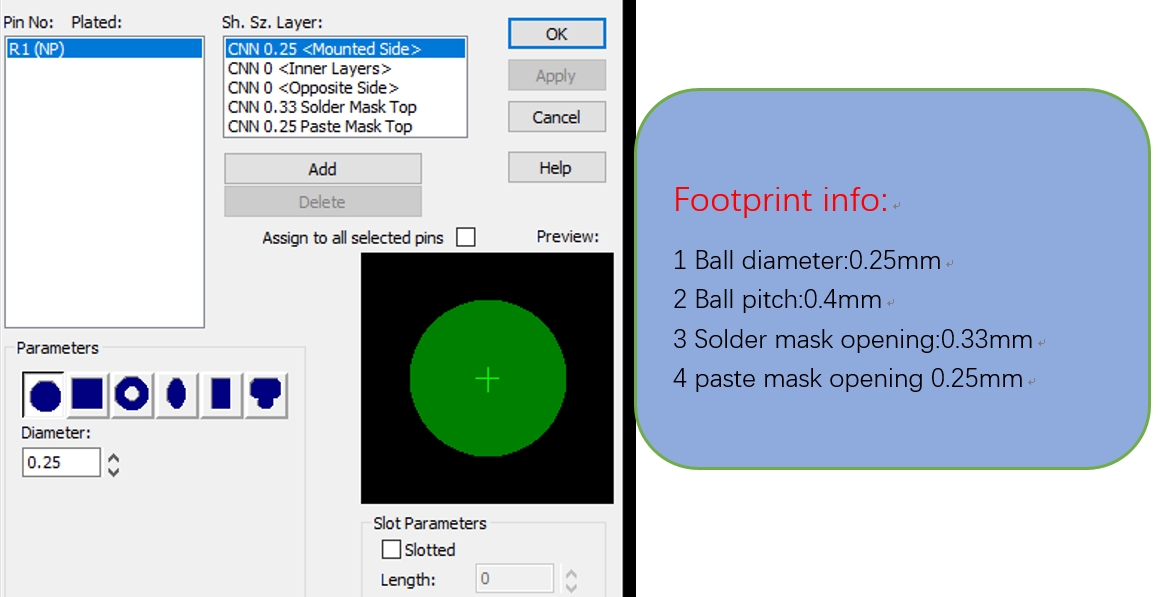

WBBGA175 Package¶

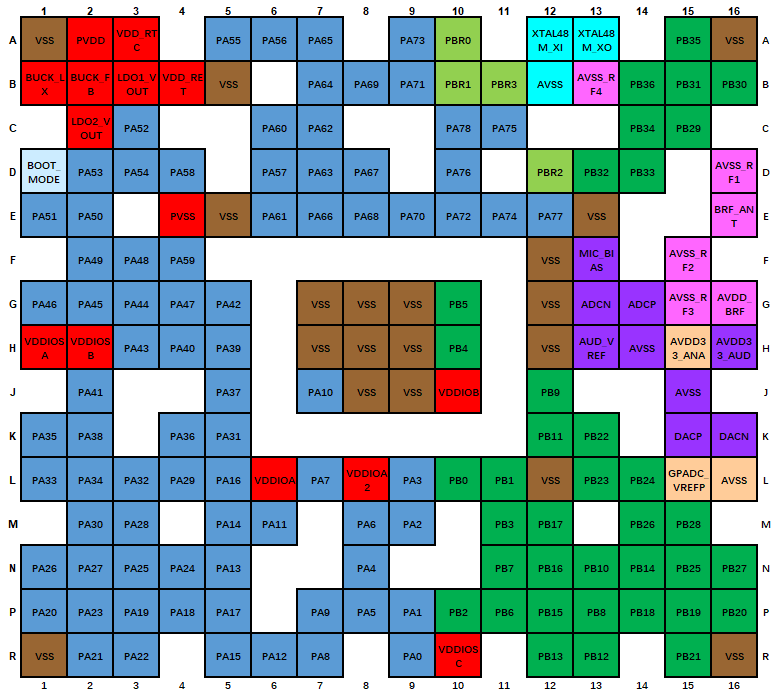

Figure 2-1 SF32LB56xV WBBGA175 Pin Distribution

Typical Application Schemes¶

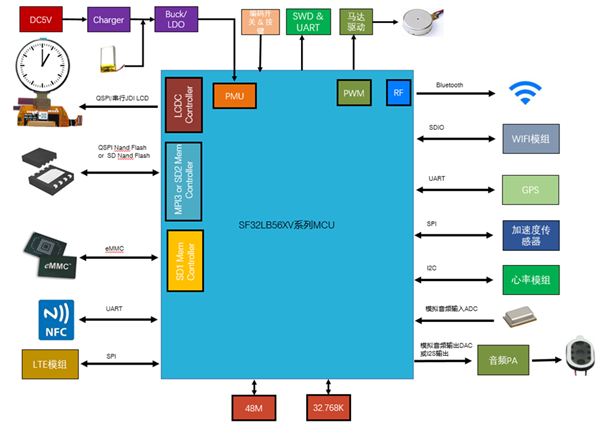

Figure 3-1 is a typical block diagram of a sports watch, which includes display, storage, sensors, vibration motor, and audio input and output.

../_images/sf32lb56xV-watch-app-diagram.png

Figure 3-1 Sports Watch Block Diagram

Note

Big.LITTLE dual CPU architecture, balancing high performance and low power consumption design requirements
External charging management chip
Supports GPADC for battery voltage detection
Power supply uses Buck, LDO, and Load Switch solutions
Supports 3/4-wire SPI, Dual/Quad data SPI, DBI 8080, DPI, and serial/parallel JDI displays, with a maximum resolution of 1024*1024
Supports PWM backlight control
Supports external QSPI interface for Nor Flash storage chips
Supports external QSPI interface for NAND Flash storage chips
Supports external SDIO interface for NAND Flash storage chips
Supports Bluetooth 5.3 communication
Supports analog audio input
Supports analog audio output
Supports I2S audio interface

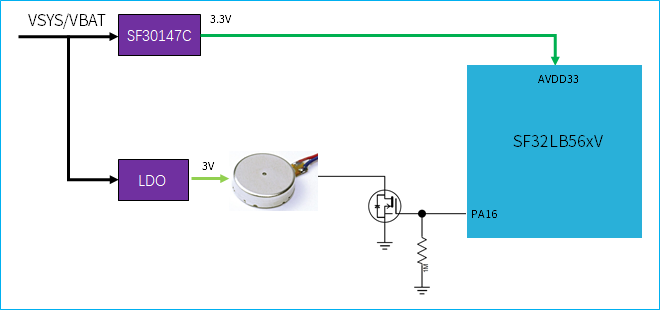

Supports PWM vibration motor control
Supports SPI/I2C interface for accelerometer/magnetometer/gyro sensors
Supports I2C interface for heart rate/blood oxygen/ECG sensors
Supports SEGGER J-Link SWD debugging and programming tools
Supports UART debugging print interface
Supports Bluetooth HCI debugging interface
Supports production line multi-device programming
Supports production line crystal calibration function
Supports OTA online upgrade function

Schematic Design Guidelines¶

Power Supply¶

The series of chips includes a PMU unit, and PVDD can support a power input range of 1.71~3.6V. The PMU supports one Buck and multiple LDOs to power the internal circuits of the chip. Refer to Table 4-1 for the detailed connections of the power pins.

Processor Power Supply Requirements¶

SF32LB56xV power specifications:

Table 4-1 PMU Power Specifications

PMU Power Pins	Minimum Voltage (V)	Typical Voltage (V)	Maximum Voltage (V)	Maximum Current (mA)	Detailed Description
PVDD	1.71	1.8	3.6	100	PVDD power input
BUCK_LX BUCK_FB	-	1.25	-	100	BUCK_LX output, connected to the internal power input of the inductor, and the other end of the inductor, with an external capacitor
LDO1_VOUT	-	1.1	-	50	LDO1 output, with an external capacitor
LDO2_VOUT	-	0.9	-	20	LDO2 output, with an external capacitor
VDD_RET	-	0.9	-	1	RET LDO output, with an external capacitor
VDD_RTC	-	1.1	-	1	RTC LDO output, with an external capacitor
MIC_BIAS	1.4	-	2.8	-	MIC power output
AVDD_BRF	1.71	1.8	3.3	1	RF power input
AVDD33_ANA	3.15	3.3	3.45	50	Analog power + RF PA power input
AVDD33_AUD	3.15	3.3	3.45	50	Analog audio power
VDDIOA	1.71	1.8	3.45	-	PA12-PA78 I/O power input
VDDIOA2	1.71	1.8	3.45	-	PA0-PA11 I/O power input
VDDIOB	1.71	1.8	3.45	-	PB I/O power input
VDDIOSA	1.71	1.8	1.98	-	SIPA power input
VDDIOSB	1.71	1.8	1.98	-	SIPB power input
VDDIOSC	1.71	1.8	1.98	-	SIPC power input

The recommended values for external capacitors connected to the power pins of the SF32LB56xV series chips are shown in Table 4-2.

Table 4-2 Capacitor Recommended Values

Power Pin	Capacitor	Detailed Description
PVDD	0.1uF + 10uF	Place at least 2 capacitors, 10uF and 0.1uF, close to the pin.
BUCK_LX BUCK_FB	0.1uF + 4.7uF	Place at least 2 capacitors, 4.7uF and 0.1uF, close to the pin.
LDO1_VOUT	4.7uF	Place at least 1 capacitor, 4.7uF, close to the pin.
LDO2_VOUT	4.7uF	Place at least 1 capacitor, 4.7uF, close to the pin.
VDD_RET	0.47uF	Place at least 1 capacitor, 0.47uF, close to the pin.
VDD_RTC	1uF	Place at least 1 capacitor, 1uF, close to the pin.
AVDD_BRF	4.7uF	Place at least 1 capacitor, 4.7uF, close to the pin.
AVDD33_ANA	4.7uF	Place at least 1 capacitor, 4.7uF, close to the pin.
AVDD33_AUD	4.7uF	Place at least 1 capacitor, 4.7uF, close to the pin.
MIC_BIAS	1uF	Place at least 1 capacitor, 1uF, close to the pin.
VDDIOA	1uF	Place at least 1 capacitor, 1uF, close to the pin.
VDDIOA2	1uF	Place at least 1 capacitor, 1uF, close to the pin.
VDDIOB	1uF	Place at least 1 capacitor, 1uF, close to the pin.
VDDIOSA	0.1uF	Place at least 1 capacitor, 0.1uF, close to the pin.
VDDIOSB	0.1uF	Place at least 1 capacitor, 0.1uF, close to the pin.
VDDIOSC	0.1uF	Place at least 1 capacitor, 0.1uF, close to the pin.

SiCh PMIC Chip Power Distribution¶

SF30147C is a highly integrated, efficient, and cost-effective power management chip designed for ultra-low-power wearable products. SF30147C integrates one high-efficiency and low-static-current BUCK, which outputs 1.8V and can provide up to 500mA of drive current. SF30147C also integrates four low-dropout and low-static-current LDOs, which output 2.8~3.3V and can provide up to 100mA of drive current.

SF30147C integrates seven low-static-current, low-on-resistance load switches. Among them, 2 high-voltage load switches are suitable for peripherals directly driven by battery voltage, such as audio amplifiers; 5 low-voltage switches are suitable for peripherals powered by 1.8V.

SF32LB56XV can communicate with SF30147C via the TWI interface. The usage of each power output of SF30147C is shown in Table 4-3. For detailed information about the chip, please refer to the document “DS0002-SF30147C-Chip Technical Specification”.

Table 4-3 SF30147C Power Distribution Table

SF30147C Power Pin	Minimum Voltage(V)	Maximum Voltage(V)	Maximum Current(mA)	Detailed Description
VBUCK	1.8	1.8	500	1.8V power input for PVDD, VDDIOA, VDDIOA2, VDDIOB, VDDIOSA, VDDIOSB, VDDIOSC, AVDD_BRF of SF32LB56xV
LVSW1	1.8	1.8	100	1.8V power input for I2S Class-K PA logic power supply
LVSW2	1.8	1.8	100	1.8V power input for G-SENSOR
LVSW3	1.8	1.8	150	1.8V power input for heart rate
LVSW4	1.8	1.8	150	1.8V power input for LCD
LVSW5	1.8	1.8	150	1.8V power input for EMMC CORE
LDO1	2.8	3.3	100	3.3V power input for AVDD33_ANA, AVDD33_AUD, VDDIOA2 of SF32LB56xV
LDO2	2.8	3.3	100	3.3V power input for EMMC or SD NAND
LDO3	2.8	3.3	100	3.3V power input for LCD
LDO4	2.8	3.3	100	3.3V power input for heart rate
HVSW1	2.8	5	150	3.3V to 5V power input for analog Class-K PA
HVSW2	2.8	5	150	3.3V to 5V power input for GPS

Power-Up Sequence and Reset¶

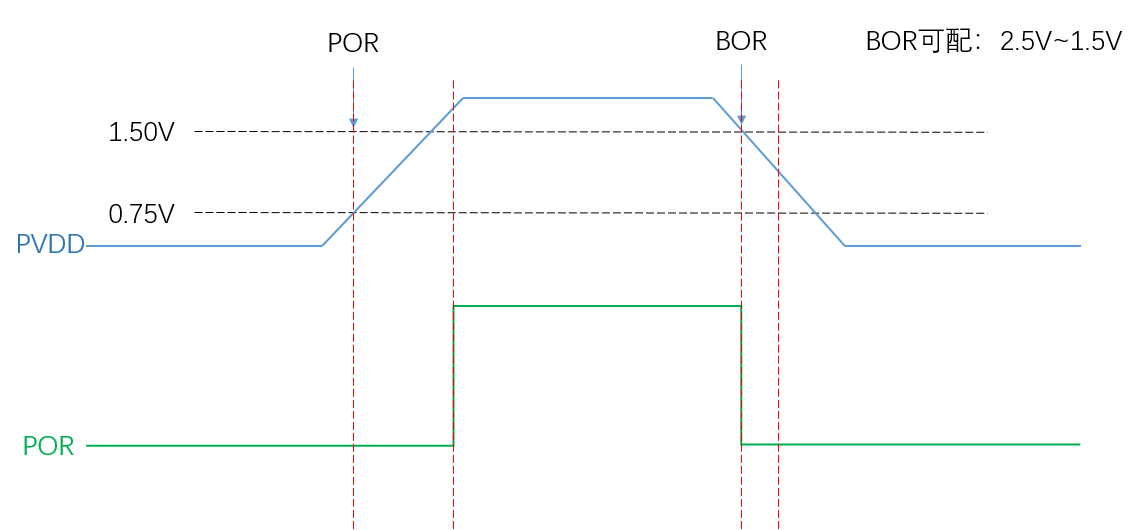

The SF32LB56xV chip PMU integrates POR (Power on reset) and BOR (Brownout reset) functions, as shown in Figure 4-1.

Figure 4-1 Power-Up/Power-Down Sequence Diagram

When the system is powered up, PVDD rises to 1.5V, and the system completes the POR. When PVDD drops to the BOR trigger voltage (configurable between 2.5V and 1.5V), the PMU outputs a reset signal, and the system resets.

Typical Power Circuit¶

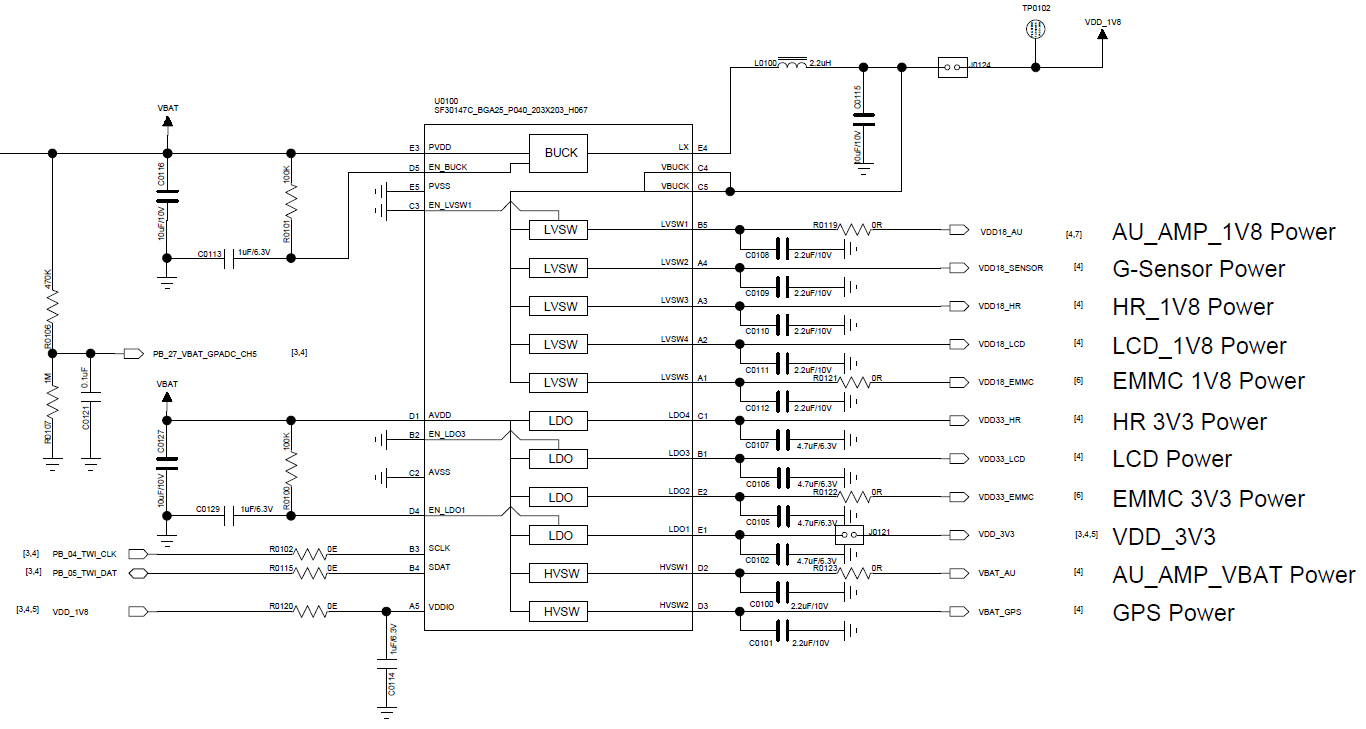

It is recommended to use the SF30147C to power the SF32LB56xV and various peripherals. The circuit diagram is shown in Figure 4-2, and specific details are provided in Table 4-1.

Figure 4-2 SF30147C Power Supply Diagram

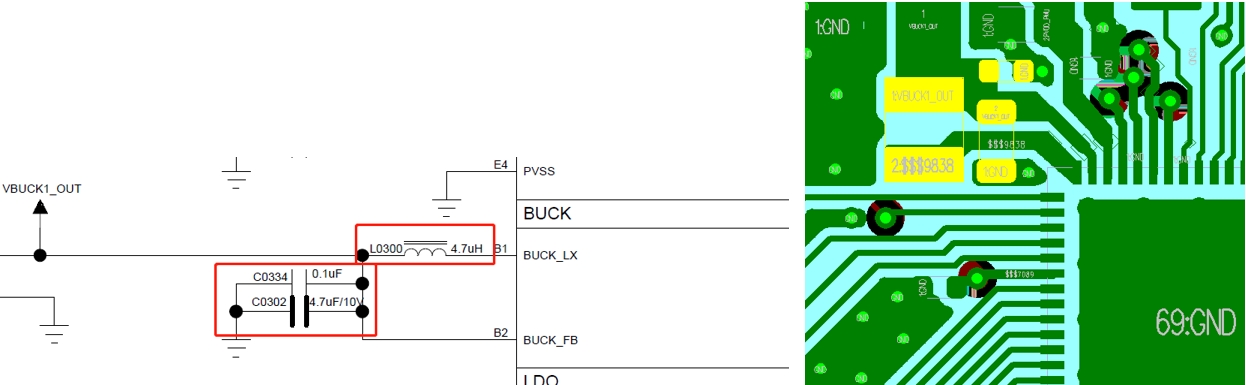

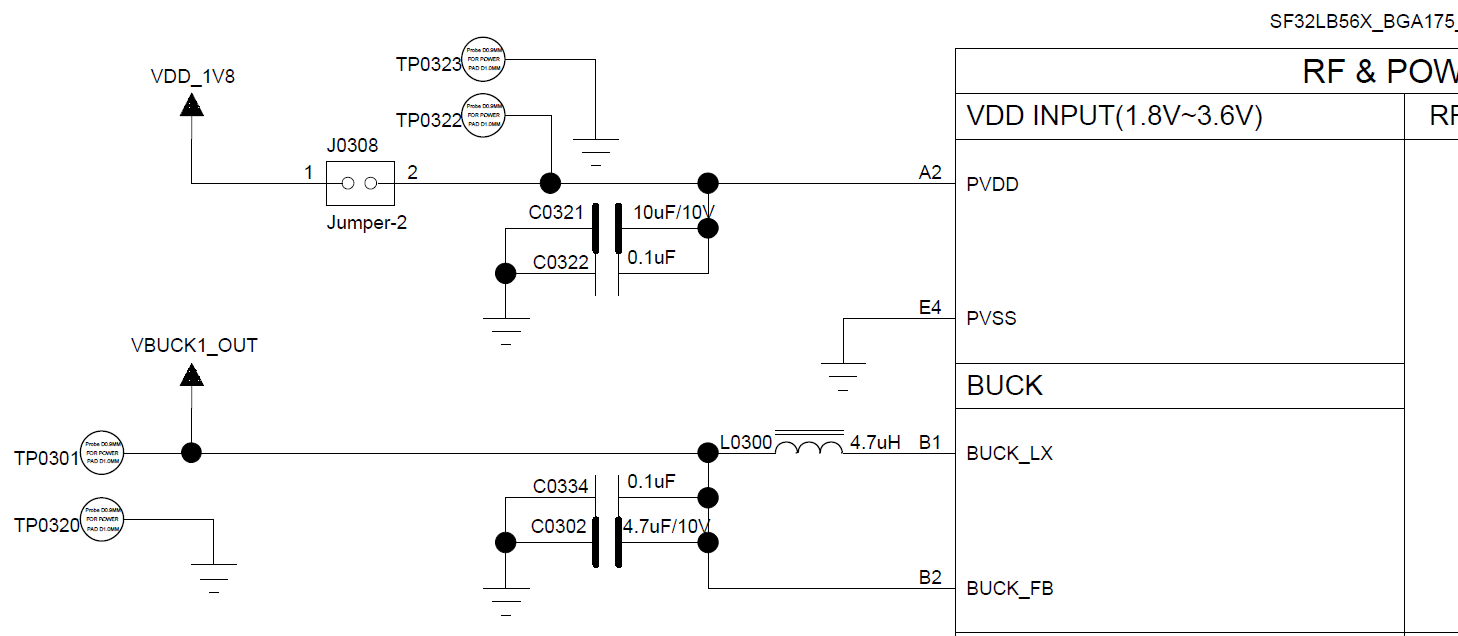

The SF32LB56xV series of chips includes one BUCK output, as shown in Figure 4-3.

Figure 4-3 Built-in BUCK Circuit Diagram

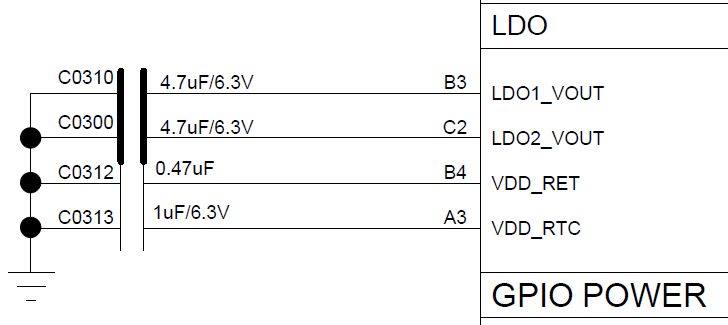

The SF32LB56xV series of chips includes four LDOs, as shown in Figure 4-4.

Figure 4-4 Built-in LDO Circuit Diagram

Processor BUCK Inductor Selection Requirements¶

Important

Key Parameters for Power Inductor

L (Inductance) = 4.7uH ± 20%, DCR (DC Resistance) ≦ 0.4 ohm, Isat (Saturation Current) ≧ 450mA.

Battery and Charging Control¶

A typical smartwatch usually contains a built-in polymer lithium battery pack. The entire power system requires a charging circuit to charge the battery.

A typical charging circuit consists of a protection circuit (EOS, ESD, and OVP protection), a charging management chip, and the battery. In the circuit shown in Figure 4-5, the charging management chip does not have path management functionality, and the system power is directly connected to the battery VBAT. This solution is cost-effective, but the downside is that downstream modules cannot be completely disconnected from VBAT, leading to higher leakage power consumption and potential over-discharge of the battery over long periods of storage.

<img src="assets/56xV/sf32lb56xV-CHG-1.png" width="80%" align="center" />

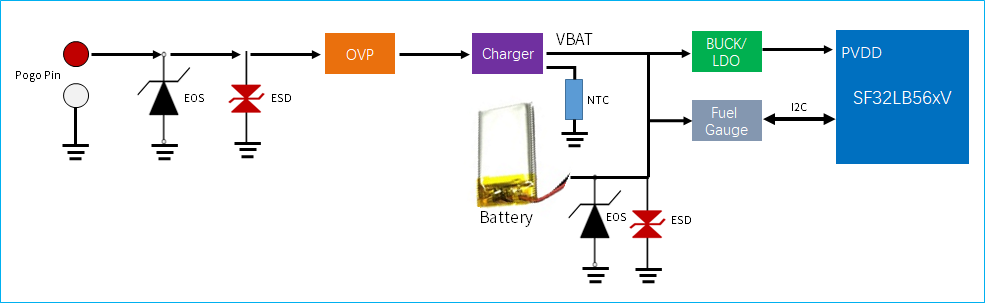

<div align="center"> Figure 4-5 Typical Charging Circuit One </div>  <br>  <br>  <br>

As shown in Figure 4-6, the trickle charge current of the charging management chip must be greater than i1+i2 to charge an over-discharged battery. If the trickle charge current is less than i1+i2, it will result in the inability to charge the over-discharged battery.

<img src="assets/56xV/sf32lb56xV-CHG-2.png" width="80%" align="center" />

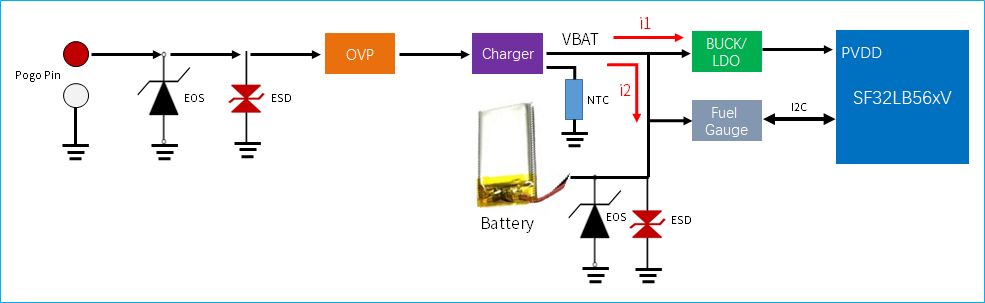

<div align="center"> Figure 4-6 Schematic Diagram of Over-discharged Battery Charging Circuit </div>  <br>  <br>  <br>

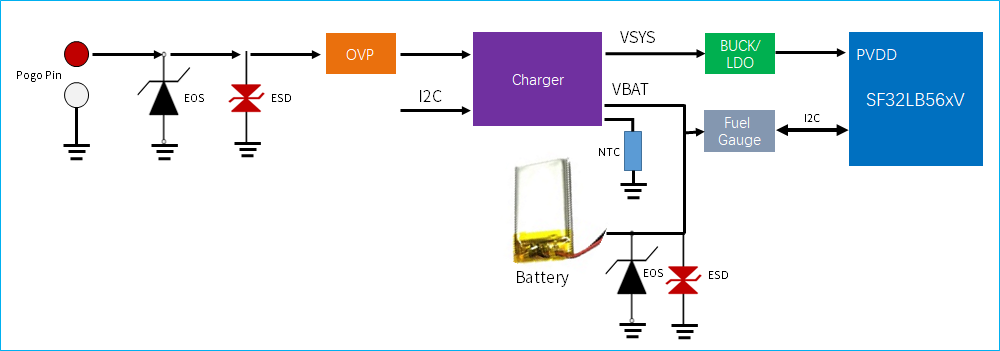

In the circuit of Figure 4-7, the charging management chip has a path management function. Since VSYS powers the system and VBAT charges the battery separately, even if the battery is over-discharged, it does not affect the power supply to the downstream system.

<img src="assets/56xV/sf32lb56xV-CHG-3.png" width="80%" align="center" />

<div align="center"> Figure 4-7 Typical Charging Circuit Two </div>  <br>  <br>  <br>

### Boot Mode

The SF32LB56xV series chips provide a Mode pin to configure the boot mode. When not in use, it can be left floating. The reference circuit diagram is shown in Figure 4-8:

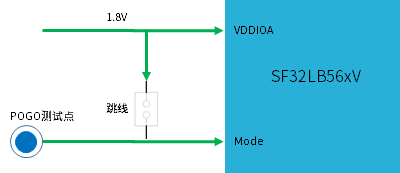

<img src="assets/56xV/sf32lb56xV-MODE.png" width="80%" align="center" />

<div align="center"> Figure 4-8 Recommended Circuit Diagram for Mode Pin </div>  <br>  <br>  <br>

:::{attention}
**Mode Pin Definition:**

=1, the system enters download mode at startup and does not enter the user program;
=0, the system checks for the existence of a user program at startup. If it exists, it enters the user program; otherwise, it enters download mode.

**Precautions:**

1. The voltage domain of Mode is the same as VDDIOA;
2. Connect a 10K resistor to the power supply or GND to keep the level stable. It should not be left floating or have toggle interference;
3. A test point for the Mode pin must be left on the production board for program download or crystal calibration. Jumper can be omitted;
4. It is recommended to reserve a jumper for the Mode pin on the test board to facilitate program download in download mode after a program crash.
:::

### Processor Operating Modes and Wake-up Sources

The SF32LB56xV series chips support multiple operating modes for both HCPU and LCPU as listed in Table 4-4.

<div align="center"> Table 4-4 CPU Operating Mode List </div>

```{table}
:align: center
| Operating Mode | CPU   | Peripherals | SRAM                              | IO       | LPTIM | Wake-up Source                                    | Wake-up Time         |
| ------------- | ----- | ----------- | --------------------------------- | -------- | ----- | ------------------------------------------------- | --------------------- |
| Active        | Run   | Run         | Accessible                        | Flippable | Run   | -                                                | -                     |
| WFI/WFE       | Stop  | Run         | Accessible                        | Flippable | Run   | Any interrupt                                     | < 0.5us              |
| DEEPWFI       | Stop  | Run         | Accessible                        | Flippable | Run   | Any interrupt                                     | < 5us                |
| Light sleep   | Stop  | Stop        | Not accessible, fully retained    | Level held | Run   | RTC/GPIO/LPTIM/LPCOMP/cross-system interrupt/Bluetooth | < 100us              |
| Deep sleep    | Stop  | Stop        | Not accessible, fully retained    | Level held | Run   | RTC/GPIO/LPTIM/LPCOMP/cross-system interrupt/Bluetooth | < 300us              |
| Standby       | Reset | Reset       | Not accessible, LP fully retained, HP retains 160KB | Level held | Run   | RTC/Key/LPTIM/cross-system interrupt/Bluetooth   | 1.5ms + recovery     |
| Hibernate rtc | Reset | Reset       | Data not retained                  | High impedance | Reset | RTC/Key                                          | > 2ms                |
| Hibernate pin | Reset | Reset       | Data not retained                  | High impedance | Reset | Key                                              | > 2ms                |

As shown in Table 4-5, the entire series of chips supports 14 wake-up interrupt sources, which can wake up the large core or small core CPU.

Table 4-5 Wake-up Interrupt Source List

Interrupt Source	Pin	Detailed Description
WKUP_PIN0	PB32	Interrupt Signal 0
WKUP_PIN1	PB33	Interrupt Signal 1
WKUP_PIN2	PB34	Interrupt Signal 2
WKUP_PIN3	PB35	Interrupt Signal 3
WKUP_PIN4	PB36	Interrupt Signal 4
WKUP_PIN5	PA50	Interrupt Signal 5
WKUP_PIN6	PA51	Interrupt Signal 6
WKUP_PIN7	PA52	Interrupt Signal 7
WKUP_PIN8	PA53	Interrupt Signal 8
WKUP_PIN9	PA54	Interrupt Signal 9
WKUP_PIN10	PBR0	Interrupt Signal 10
WKUP_PIN11	PBR1	Interrupt Signal 11
WKUP_PIN12	PBR2	Interrupt Signal 12
WKUP_PIN13	PBR3	Interrupt Signal 13

Clock¶

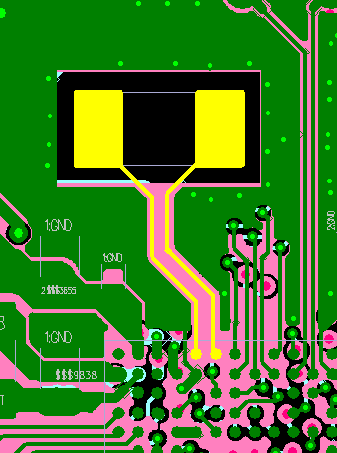

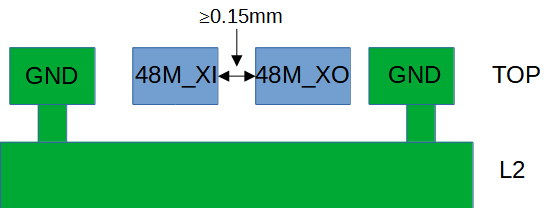

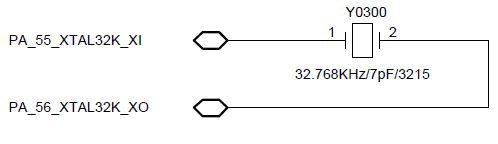

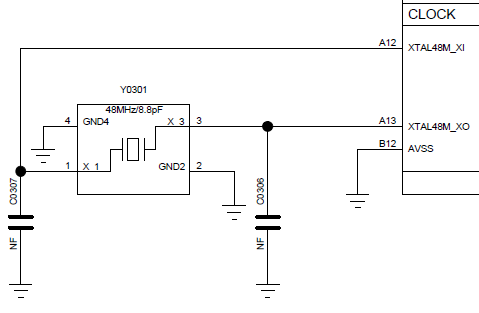

The SF32LB56xV series of chips require two external clock sources: a 48MHz main crystal and a 32.768KHz RTC crystal. The specific specifications and selection criteria for the crystals are shown in Table 4-6 and Table 4-7.

Important

Crystal Key Parameters

Table 4-6 Crystal Specification Requirements

Crystal	Specification Requirements	Detailed Description
48MHz	7pF≦CL≦12pF (recommended value 8.8pF) △F/F0≦±10ppm ESR≦30 ohms (recommended value 22ohms)	The power consumption of the crystal is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use materials with relatively smaller CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12pF, no capacitors need to be soldered.
32.768KHz	CL≦12.5pF (recommended value 7pF) △F/F0≦±20ppm ESR≦80k ohms (recommended value 38Kohms)	The power consumption of the crystal is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use materials with relatively smaller CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12.5pF, no capacitors need to be soldered.

Crystal Recommendations

Table 4-7 Recommended Crystal List

Model	Manufacturer	Parameters
E1SB48E001G00E	Hosonic	F0 = 48.000000MHz, △F/F0 = -6 ~ 8 ppm, CL = 8.8 pF, ESR = 22 ohms Max, TOPR = -30 ~ 85℃, Package = (2016 metric)
ETST00327000LE	Hosonic	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max, TOPR = -40 ~ 85℃, Package = (3215 metric)
SX20Y048000B31T-8.8	TKD	F0 = 48.000000MHz, △F/F0 = -10 ~ 10 ppm, CL = 8.8 pF, ESR = 40 ohms Max, TOPR = -20 ~ 75℃, Package = (2016 metric)
SF32K32768D71T01	TKD	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max, TOPR = -40 ~ 85℃, Package = (3215 metric)

Note: The ESR of SX20Y048000B31T-8.8 is slightly larger, which will also result in slightly higher static power consumption. When routing the PCB, at least the second layer GND copper should be removed under the crystal to reduce the parasitic load capacitance on the clock signal.

For detailed material certification information, please refer to: SIFLI-MCU-AVL-Certification Table

RF¶

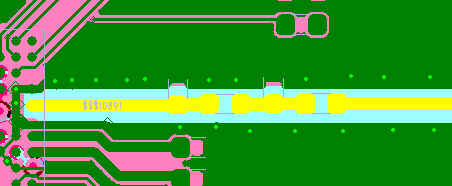

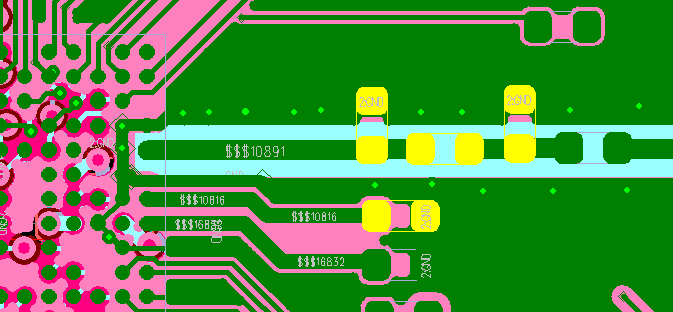

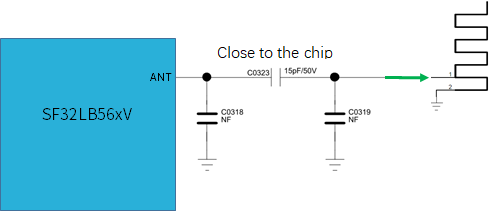

The RF PCB routing requirements for the SF32LB56xV series of chips are 50ohms characteristic impedance. If the antenna is properly matched, no additional components are required on the RF path. It is recommended to reserve a π-type matching network for stray filtering. Please refer to the circuit shown in Figure 4-9.

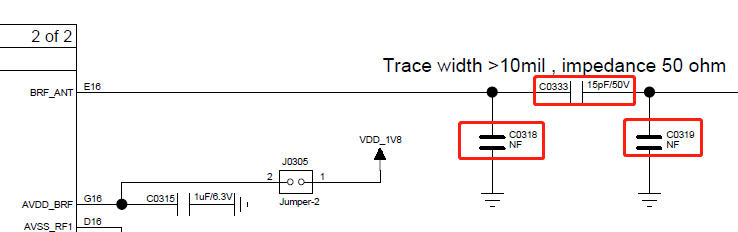

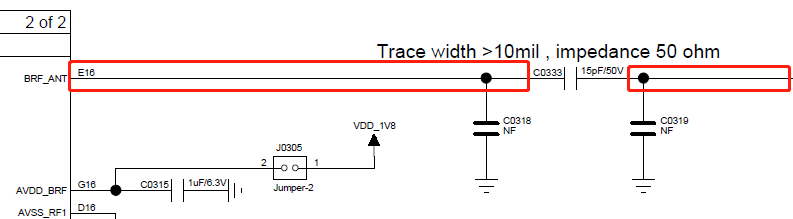

Figure 4-9 RF Circuit Diagram

How to Connect Peripherals to the Big and Little Core Processors¶

The SF32LB56xV series of chips have two processor systems internally. The GPIOs of PAx are connected to the HCPU system, and the GPIOs of PBx are connected to the LCPU system. The HCPU can access all peripheral resources of the LCPU, but it is not recommended for the LCPU to access the resources of the HCPU. The HCPU can run at a maximum frequency of 240MHz, providing high-performance computing, graphics processing, and high-resolution/frame-rate display. External memory, display interfaces, and other high-power devices should be connected to the HCPU.

The LCPU typically runs at 48MHz at 0.9V and can run up to 96MHz at 1.1V. It is used to handle the BLE protocol stack and control heart rate and acceleration sensors in low-power modes, as well as manage charging, PMIC, voltage monitoring, and power-on/off.

Display¶

The SF32LB56xV series of chips support 3-Line SPI, 4-Line SPI, Dual Data SPI, Quad Data SPI, DBI 8080, DPI, and serial/parallel JDI interfaces. They support 16.7M-colors (RGB888), 262K-colors (RGB666), 65K-colors (RGB565), and 8-color (RGB111) color depth modes. The maximum supported resolution is 1024RGBx1024. The supported LCD driver list is shown in Table 4-8.

Table 4-8 Supported LCD Driver List

Model	Manufacturer	Resolution	Type	Interface
RM69090	Raydium	368*448	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, MIPI-DSI
RM69330	Raydium	454*454	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, 8-bits 8080-Series MCU, MIPI-DSI
ILI8688E	ILITEK	368*448	Amoled	Quad data SPI, MIPI-DSI
SH8601A	晟合技术	454*454	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, 8-bits 8080-Series MCU, MIPI-DSI
SPD2012	Solomon	356*400	TFT	Quad data SPI
GC9C01	Galaxycore	360*360	TFT	Quad data SPI
ST77903	Sitronix	400*400	TFT	Quad data SPI

SPI/QSPI Display Interface¶

The SF32LB56xV series chips support 3/4-wire SPI and Quad-SPI interfaces to connect to LCD displays, as described in Table 4-9.

Table 4-9 SPI/QSPI Screen Signal Connection Methods

SPI Signal	I/O	Detailed Description
CSX	PA36	Enable signal
WRX_SCL	PA37	Clock signal
DCX	PA39	Data/command signal in 4-wire SPI mode, Data1 in Quad-SPI mode
SDI_RDX	PA38	Data input signal in 3/4-wire SPI mode, Data0 in Quad-SPI mode
SDO	PA38	Data output signal in 3/4-wire SPI mode, connect to SDI_RDX together
D[0]	PA40	Data2 in Quad-SPI mode
D[1]	PA41	Data3 in Quad-SPI mode
REST	PA43	Reset display signal
TE	PA33	Tearing effect to MCU frame signal

MCU8080 Display Interface¶

The SF32LB56xV series chips support the MCU8080 interface to connect to LCD displays, as shown in Table 4-10.

Table 4-10 MCU8080 Screen Signal Connection Methods

MCU8080 Signal	I/O	Detailed Description
CSX	PA36	Chip select
WRX	PA37	Writes strobe signal to write data
DCX	PA39	Display data / command selection
RDX	PA38	Reads strobe signal to write data
D[0]	PA40	Data 0
D[1]	PA1	Data 1
D[2]	PA28	Data 2
D[3]	PA29	Data 3
D[4]	PA30	Data 4
D[5]	PA31	Data 5
D[6]	PA32	Data 6
D[7]	PA34	Data 7
REST	PA43	Reset
TE	PA33	Tearing effect to MCU frame signal

DPI Display Interface¶

The SF32LB56xV series of chips supports the DPI interface to connect to LCD displays, as shown in Table 4-11.

Table 4-11 DPI Screen Signal Connection Method

DPI Signal	I/O	Detailed Description
CLK	PA45	Clock signal
DE	PA47	Data enable signal
HSYNC	PA44	Horizontal synchronization signal
VSYNC	PA42	Vertical synchronization signal
SD	PA50	Control to turn off Display
CM	PA51	Switch between Normal Color and Reduce Color Mode
R0	PA14	Pixel signal
R1	PA13	Pixel signal
R2	PA16	Pixel signal
R3	PA15	Pixel signal
R4	PA19	Pixel signal
R5	PA21	Pixel signal
R6	PA23	Pixel signal
R7	PA25	Pixel signal
G0	PA28	Pixel signal
G1	PA30	Pixel signal
G2	PA32	Pixel signal
G3	PA33	Pixel signal
G4	PA34	Pixel signal
G5	PA29	Pixel signal
G6	PA31	Pixel signal
G7	PA35	Pixel signal
B0	PA36	Pixel signal
B1	PA37	Pixel signal
B2	PA38	Pixel signal
B3	PA43	Pixel signal
B4	PA41	Pixel signal
B5	PA39	Pixel signal
B6	PA40	Pixel signal
B7	PA46	Pixel signal

JDI Display Interface¶

The SF32LB56xV series of chips supports both parallel and serial JDI interfaces to connect to LCD displays. The parallel JDI is shown in Table 4-12, and the serial JDI is shown in Table 4-13.

Table 4-12 Parallel JDI Screen Signal Connection Method

JDI Signal	I/O	Detailed Description
JDI_VCK	PA41	Shift clock for the vertical driver
JDI_VST	PA40	Start signal for the vertical driver
JDI_XRST	PA39	Reset signal for the horizontal and vertical driver
JDI_HCK	PA36	Shift clock for the horizontal driver
JDI_HST	PA38	Start signal for the horizontal driver
JDI_ENB	PA43	Write enable signal for the pixel memory
JDI_R1	PA29	Red image data (odd pixels)
JDI_R2	PA31	Red image data (even pixels)
JDI_G1	PA34	Green image data (odd pixels)
JDI_G2	PA32	Green image data (even pixels)
JDI_B1	PA30	Blue image data (odd pixels)
JDI_B2	PA28	Blue image data (even pixels)
JDI_XFRP	PBR1	Liquid crystal driving signal (“On” pixel)
JDI_VCOM/FRP	PBR2	Common electrode driving signal/ Liquid crystal driving signal (“Off” pixel)

Table 4-13 Serial JDI Display Signal Connections

JDI Signal	Pin	Detailed Description
JDI_SCS	PA39	Chip Select Signal
JDI_SCLK	PA41	Serial Clock Signal
JDI_SO	PA40	Serial Data Output Signal
JDI_DISP	PA36	Display ON/OFF Switching Signal
JDI_EXTCOMIN	PA38	COM Inversion Polarity Input

Touch and Backlight Interface¶

The SF32LB56xV series of chips support an I2C format touch screen control interface and touch status interrupt input, as well as a single PWM signal to control the enablement and brightness of the backlight power supply, as shown in Table 4-14.

Table 4-14 Touch and Backlight Control Connections

Touch Screen and Backlight Signal	Pin	Detailed Description
Interrupt	PA50	Touch status interrupt signal (wakeup capable)
I2C1_SCL	PA48	Touch screen I2C clock signal
I2C1_SDA	PA49	Touch screen I2C data signal
BL_PWM	PA35	Backlight PWM control signal
Reset	PA44	Touch reset signal

Storage¶

External Memory for SF32LB56xV¶

The SF32LB56xV supports SPI Nor/Nand, SD Nand Flash, and eMMC peripherals. The SPI Nor/NAND Flash uses the MPI interface, and the SD NAND Flash uses the SD interface. These types of flash chips are physically pin-compatible. The interface definitions are shown in Tables 4-15 and 4-16. The GPIO power supply pins PA06~PA11 in the table are VDDIOA2, which is independent of the voltage domain of other GPIOs.

The MPI signal definitions are shown in Table 4-15, the SD signal definitions in Table 4-16, and the eMMC signal definitions in Table 4-17.

Table 4-15 SPI Nor/Nand Flash Signal Connections

Flash Signal	I/O Signal	Detailed Description
CS#	PA06	Chip select, active low.
SO	PA07	Data Input (Data Input Output 1)
WP#	PA08	Write Protect Output (Data Input Output 2)
SI	PA09	Data Output (Data Input Output 0)
SCLK	PA10	Serial Clock Output
Hold#	PA11	Data Output (Data Input Output 3)

Note

The Hold# pin of the SPI NAND Flash needs to be pulled up to the power supply of the SPI NAND Flash through a 10K resistor.

Table 4-16 SD Nand Flash Signal Connections

Flash Signal	I/O Signal	Detailed Description
SD2_CMD	PA09	Command signal
SD2_D1	PA11	Data 1
SD2_D0	PA10	Data 0
SD2_CLK	PA08	Clock signal
SD2_D2	PA06	Data 2
SD2_D3	PA07	Data 3

Table 4-17 eMMC Signal Connections

eMMC Signal	I/O Signal	Detailed Description
SD1_CMD	PA27	Command signal
SD1_CLK	PA26	Clock signal
SD1_D0	PA22	Data 0
SD1_D1	PA15	Data 1
SD1_D2	PA12	Data 6
SD1_D3	PA20	Data 3
SD1_D4	PA21	Data 4
SD1_D5	PA19	Data 5
SD1_D6	PA13	Data 6
SD1_D7	PA14	Data 7

Buttons¶

The PB32 pin of the SF32LB56xV series chips supports the long-press reset function. It is recommended to design PB32 as a button, which supports both short-press power on/off function and long-press reset function. As shown in Figure 4-10, the design uses a high-level effective method, and the long-press reset function requires holding for more than 10 seconds to automatically reset the chip.

The SF32LB56xV series chips support function button input and rotary encoder signal input. The button or rotary encoder signal needs to be pulled up. The button usage is shown in Figure 4-11. It also supports optical tracking sensors, and it is recommended to use the I2C4 interface. The signal connections are shown in Table 4-18.

Table 4-18 Optical Tracking Sensor Signal Connections

I2C Signal	I/O	Detailed Description
SDA	PA18	Optical tracking sensor I2C data signal
SCL	PA17	Optical tracking sensor I2C clock signal

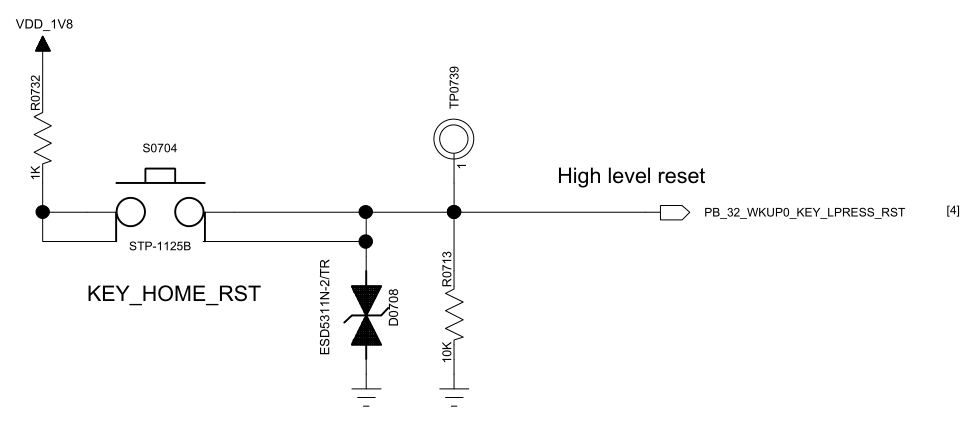

Figure 4-10 Power On/Off Button Circuit Diagram

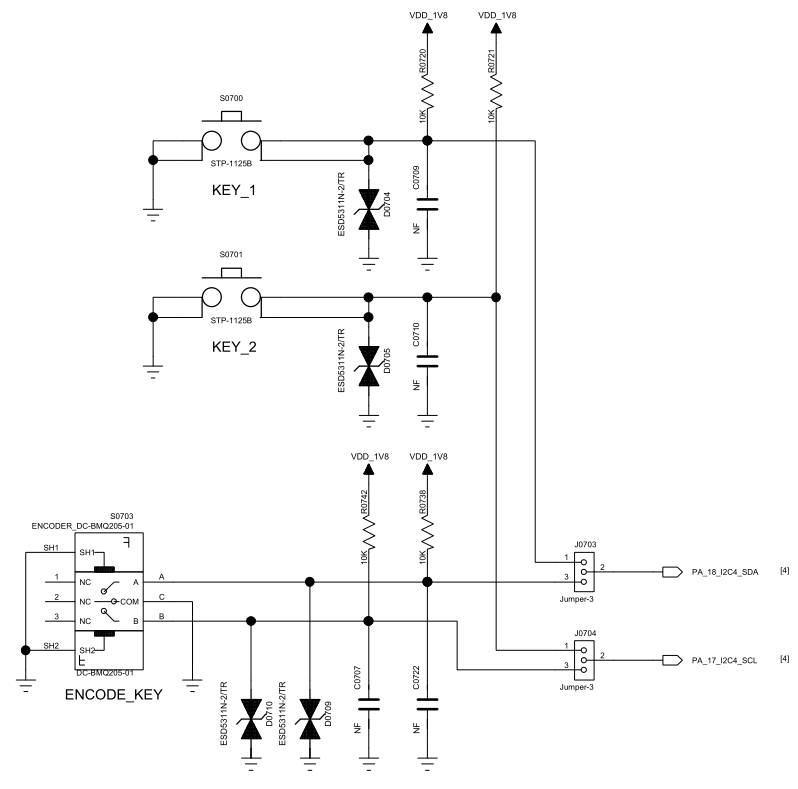

Figure 4-11 Function Button or Rotary Encoder Circuit Diagram

Note

For general mechanical rotary encoder switches, the switch does not return to the off state after rotation, so the pull-up resistor should be connected to a power source that can be turned off during standby to prevent leakage.

Vibration Motor¶

The SF32LB56xV series chips support multiple PWM outputs, which can be used as drive signals for vibration motors. The recommended circuit is shown in Figure 4-12. If the current drawn by the motor during vibration does not cause system instability, VBAT can also be used directly to power the motor.

Figure 4-12 Vibration Motor Circuit Diagram

Important

If the software enables the #define BSP PM FREQ SCALING 1 macro to reduce the HCPU clock frequency, the HCPU clock frequency will decrease when the HCPU enters the idle thread, and the PWM frequency of the HCPU’s PA port will also change. Therefore, it is recommended to use the PB interface to output the PWM signal.

Audio Interface¶

The audio-related interfaces of the SF32LB56xV series chips are shown in Table 4-19. The audio interface signals have the following characteristics:

Supports one differential ADC input, connected to an external analog MIC, with a coupling capacitor of at least 2.2uF added in between, and the power supply for the analog MIC is connected to the MIC_BIAS power output pin of the chip;
Supports one differential DAC output, connected to an external analog audio PA. The DAC output traces should be routed as differential lines with proper ground shielding, and the following should be noted: Trace Capacitance < 10pF, Length < 2cm.

Table 4-19 Audio Signal Connection Methods

Audio Signal	I/O	Detailed Description
AU_ADC1P	ADCP	Differential P or single-ended analog MIC input
AU_ADC1N	ADCN	Differential analog MIC input N or GND
AU_DAC1P	DACP	Differential analog output P
AU_DAC1N	DACN	Differential analog output N
I2S1_LRCK	PA71	I2S2 frame clock
I2S1_SDI	PA69	I2S2 data input
I2S1_SDO	PA64	I2S2 data output
I2S1_BCK	PA73	I2S2 bit clock

The recommended circuit for the analog MEMS MIC of the SF32LB56xV series chips is shown in Figure 4-13, the recommended circuit for the single-ended analog ECM MIC is shown in Figure 4-14, and the recommended circuit for the differential analog ECM MIC is shown in Figure 4-15, where AU_ADC1P and AU_ADC1N are connected to the ADC input pins of the SF32LB56xV.

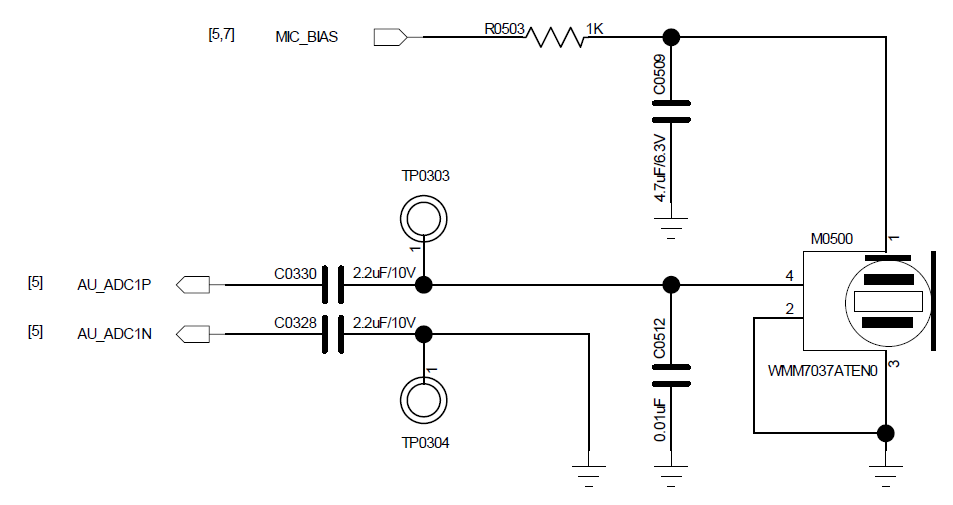

Figure 4-13 Analog MEMS MIC Input Circuit

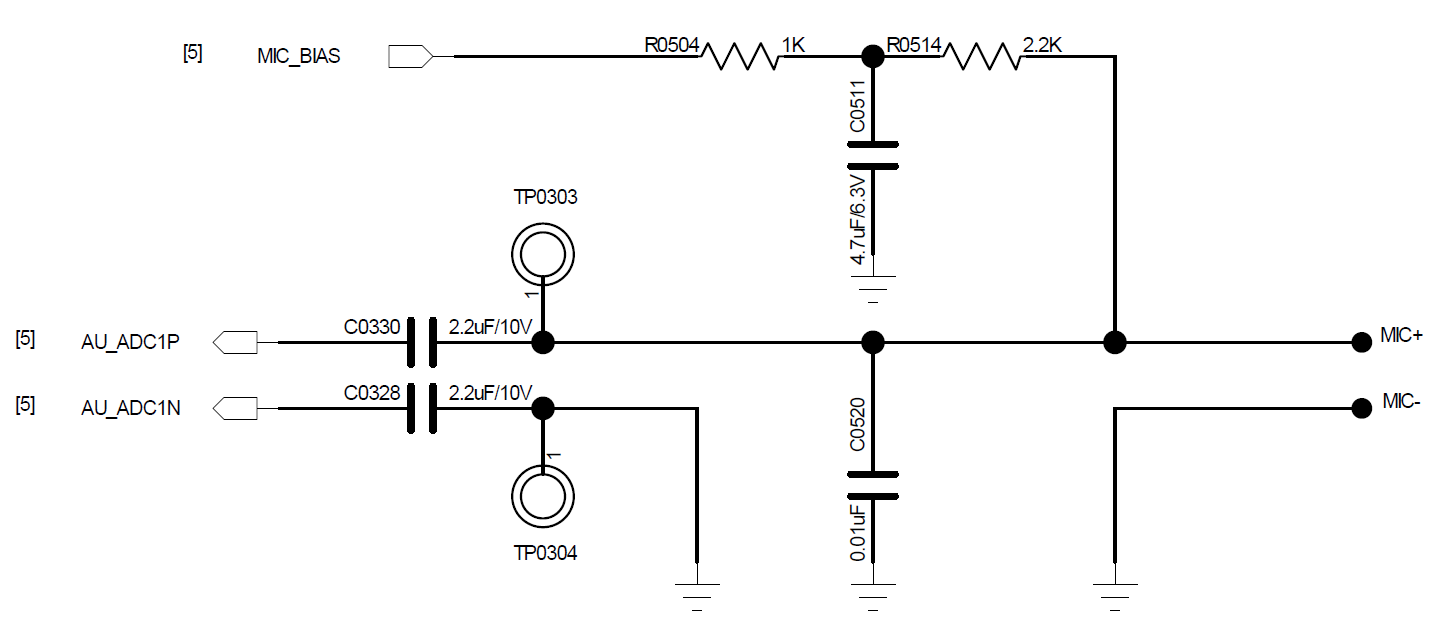

Figure 4-14 Single-Ended Analog ECM MIC Input Circuit

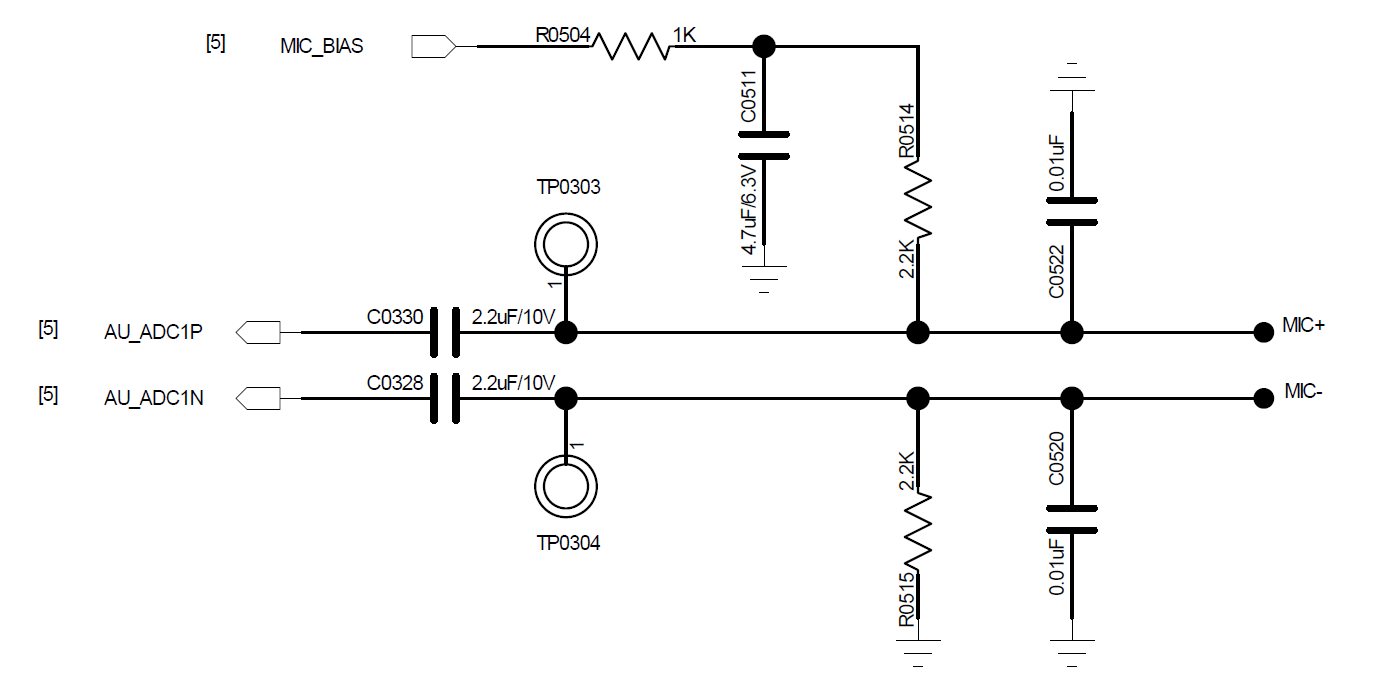

Figure 4-15 Differential Analog ECM MIC Input Circuit

The recommended circuit for the analog audio output of the SF32LB56xV series chips is shown in Figure 4-16, note that the differential low-pass filter within the dashed line should be placed close to the chip.

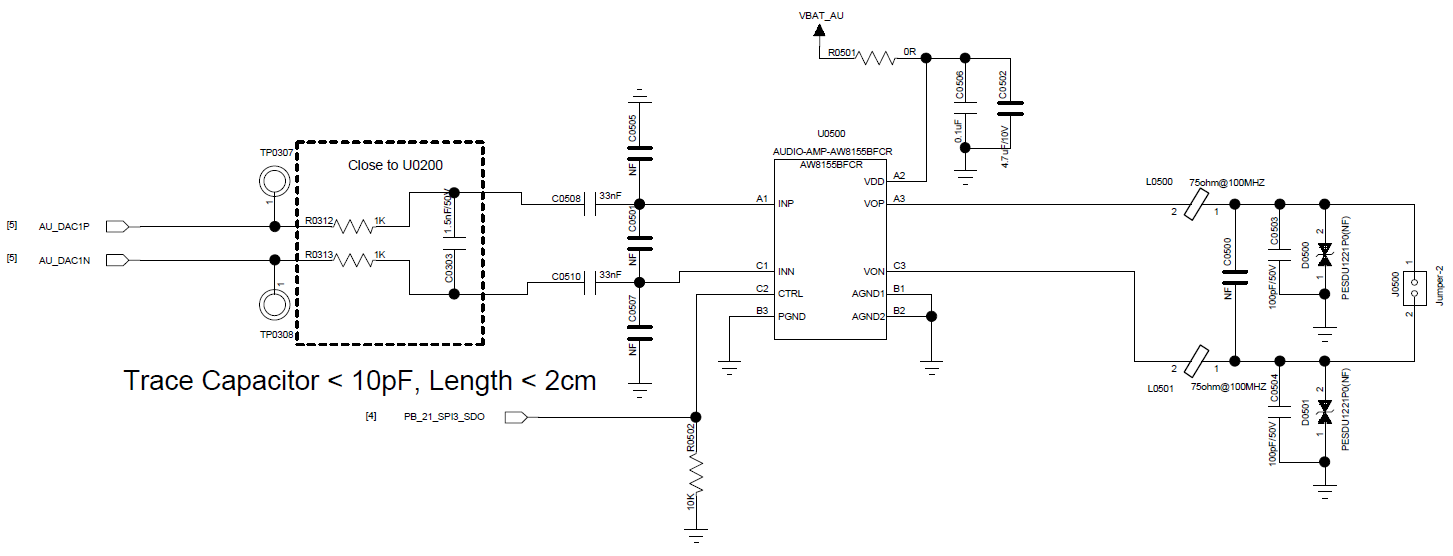

Figure 4-16 Analog Audio PA Circuit

The I2S audio PA connection circuit is shown in Figure 4-17, and I2C3 is used to configure the I2S audio PA registers.

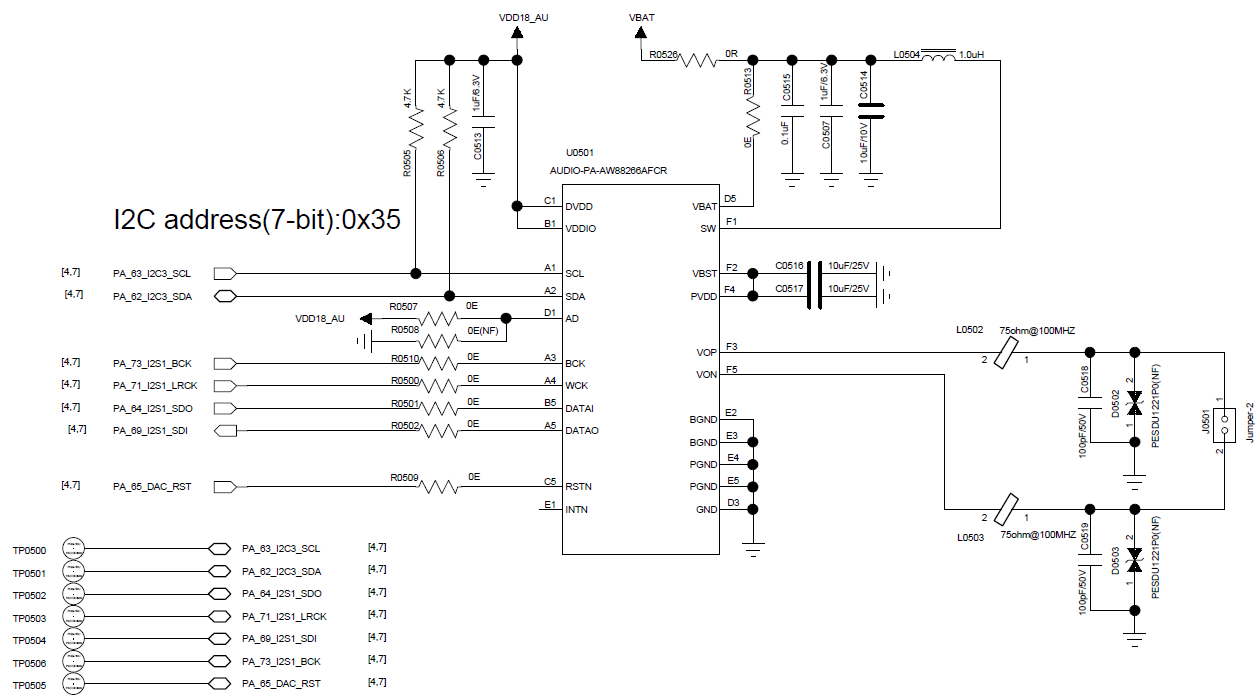

Figure 4-17 I2S Audio PA Circuit

PBR Interface Description¶

The SF32LB56xV series chips provide 4 PBR interfaces, with the following main features:

PBR0 changes from 0 to 1 during the power-on stage, used for certain external LSW control, PBR1-PBR3 are all default to output 0;
PBR0-PBR3 can be used as outputs in both standby and hibernate modes;
PBR0-PBR3 can output LPTIM signals;
PBR1-PBR3 can output 32K clock signals;
PBR0-PBR3 can be configured as inputs for wake-up signal input, and the MCU will not receive interrupts when it wakes up.

Sensors¶

The SF32LB56xV series chips support heart rate and accelerometer sensors, etc. In the design, attention should be paid to the I2C, SPI, control interfaces, and interrupt wake-up interfaces of the heart rate and accelerometer sensors. It is recommended to use the LCPU’s PB interface. The power supply for the heart rate and accelerometer sensors can be provided by the LVSWx or LDO output of the SF30147C, which can be turned on or off as needed.

UART and I2C Pin Configuration¶

The SF32LB56xV series chips support the mapping of UART and I2C functions to any pin. All PA interfaces can be mapped to UART or I2C function pins. All IOs on the PB port, except PB32~36 and PBR0~3, can be mapped to UART or I2C function pins.

GPTIM Pin Configuration¶

The SF32LB56xV series chips support the mapping of GPTIM functions to any pin. All PA interfaces can be mapped to GPTIM function pins. All IOs on the PB port, except PB32~36 and PBR0~3, can be mapped to GPTIM function pins.

Debug and Download Interface¶

The SF32LB56xV series chips support the Arm® standard SWD debug interface, which can be connected to EDA tools for step-by-step debugging. As shown in Figure 4-18, when connecting to the SEEGER® J-Link® tool, the power supply of the debug tool should be modified to external interface input, and the J-Link tool should be powered by the SF32LB56xV circuit board.

The SF32LB56xV series has one SWD for debug information output, please refer to Table 4-20 for details.

Table 4-20 Debug Port Connection Method

SWD Signal	Pin	Detailed Description
SWCLK	PB15	JLINK clock signal
SWDIO	PB13	JLINK data signal

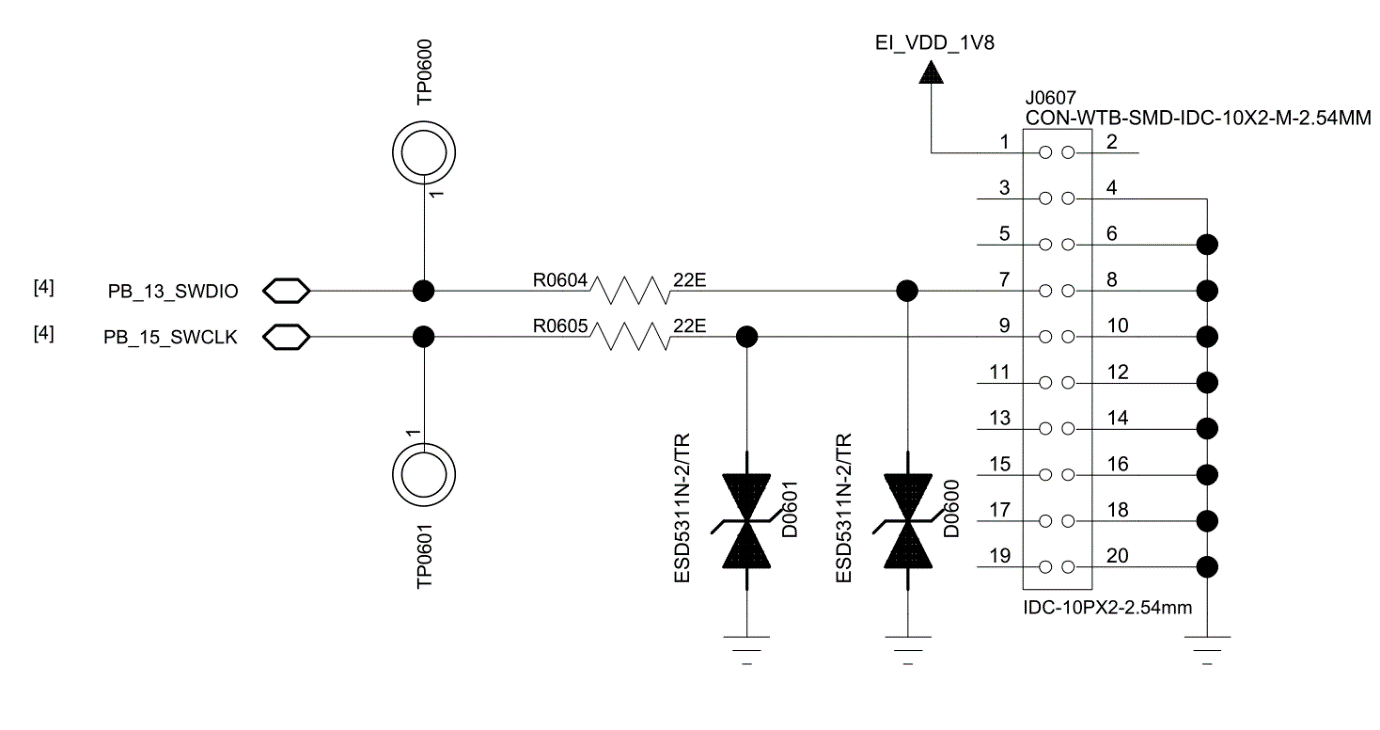

Figure 4-18 Debug Interface Circuit

Production Programming and Crystal Calibration¶

Siches Technology provides an offline programmer to complete the production program burning and crystal calibration.

When designing the hardware, please ensure that at least the following test points are reserved: VBAT, GND, VDDIOB, Mode, SWDIO, SWCLK, RXD4, TXD4, PB20 or PB21 or PB25.

For detailed programming and crystal calibration, refer to the “Offline Programmer User Guide.pdf” document, which is included in the development package.

Schematic and PCB Drawing Checklists¶

Refer to the “Schematic checklist.xlsx” and “PCB checklist.xlsx” documents, which are included in the development package.

PCB Design Guidelines¶

PCB Package Design¶

Package Dimensions

The SF32LB56xV chip uses a WBBGA package, with dimensions: 6.5mm x 6.1mm x 0.94mm, and 175 pins; the ball pitch is 0.4mm. The detailed dimensions are shown in Figure 5-1.

Figure 5-1 WBBGA Package Dimensions

Package Shape

Figure 5-2 WBBGA Package Shape

Pad Design

Figure 5-3 WBBGA Package PCB Pad Design Reference

Package PINOUT/BALLMAP

The WBBGA package PINOUT information for the SF32LB56xV is shown in Figure 5-4.

Figure 5-4 SF32LB56xV Package PINOUT Information

Package Substrate

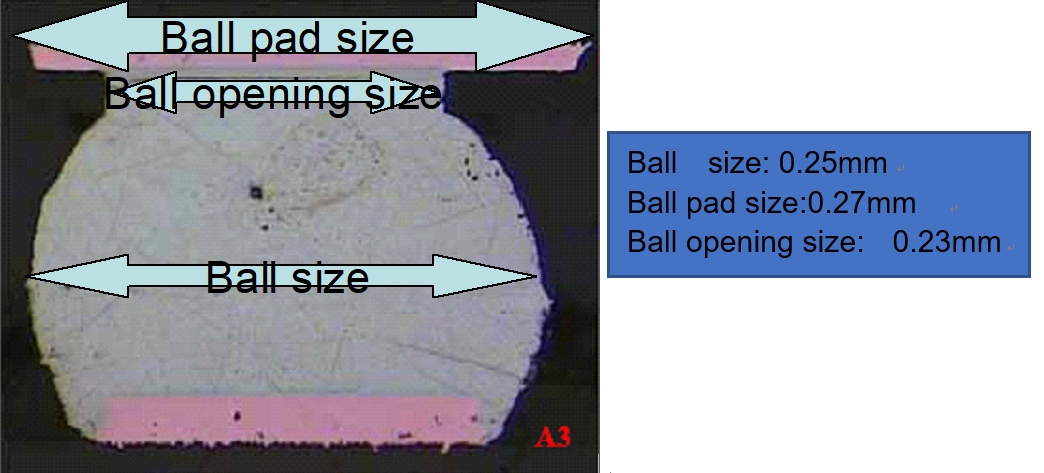

Figure 5-5 Package Substrate BALL Information

PCB Stackup Design¶

The SF32LB56xV series chip layout supports single and double-sided PCBs. The PCB does not support PTH boards and only supports HDI boards. The recommended stackup is shown in Figure 5-6.

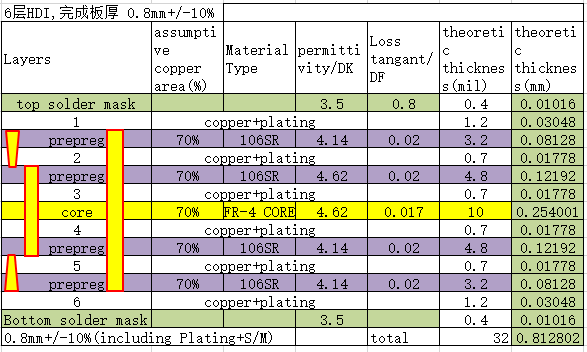

Figure 5-6 Reference Stackup Structure

General PCB Design Rules¶

The general design rules for HDI PCBs are shown in Figure 5-7, with units in mm.

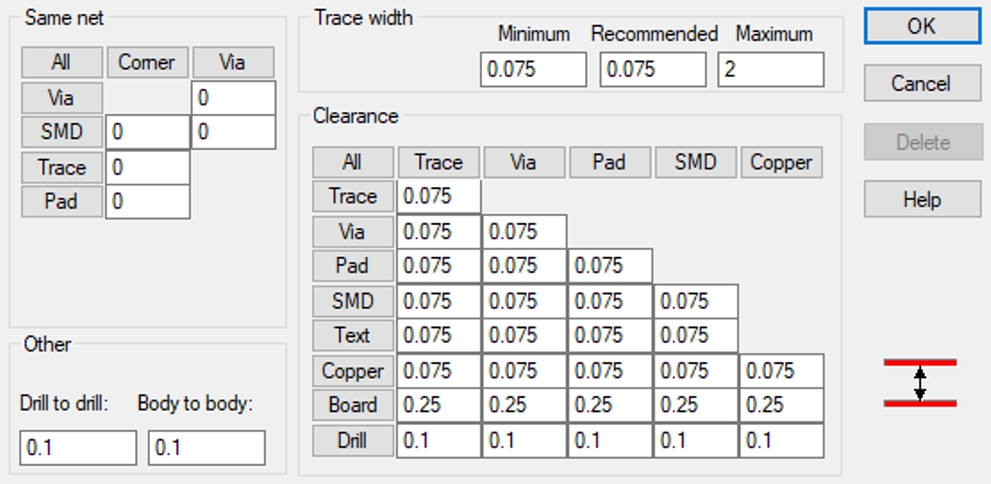

Figure 5-7 General Design Rules

Buried Via Design¶

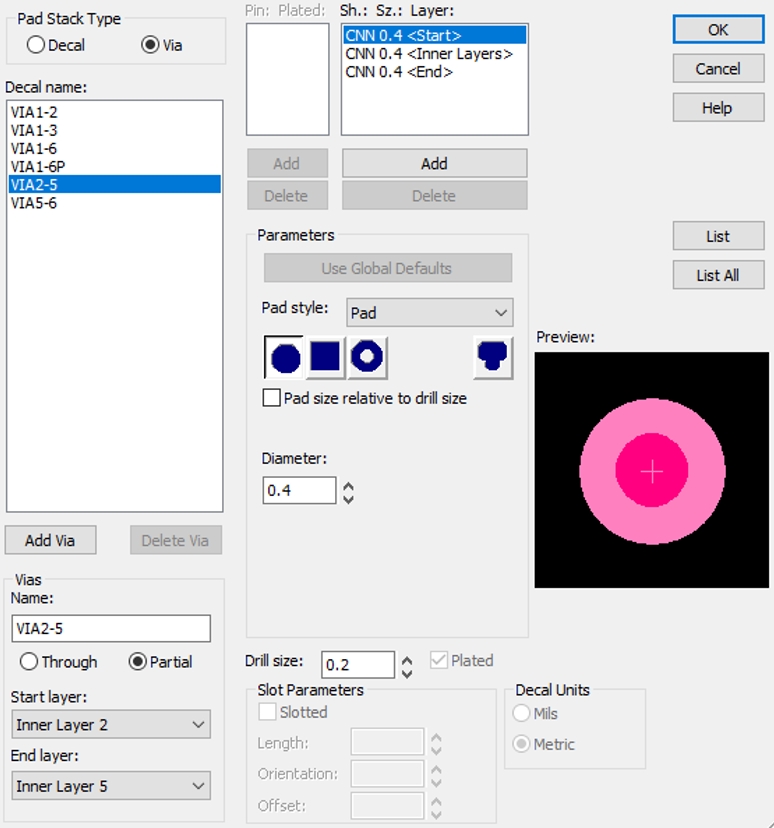

The buried via design for the PCB is shown in Figure 5-9, with units in mm.

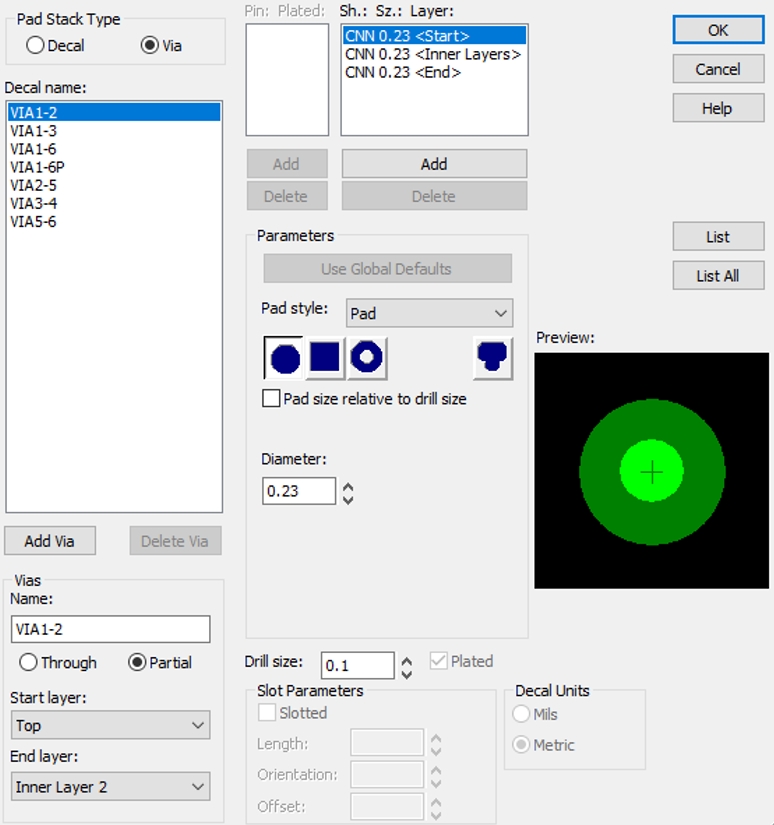

Figure 5-9 Buried Via Design

Chip Routing Fanout¶

The first two rows of balls in the WBBGA package are routed through the surface layer as shown in Figure 5-10, while the other balls are routed through the inner layers as shown in Figure 5-11.

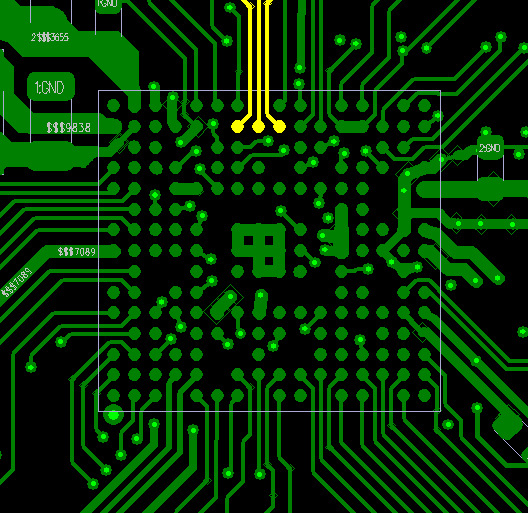

Figure 5-10 Surface Layer Fanout Reference

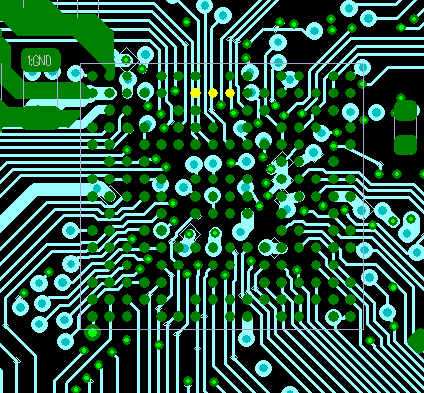

Figure 5-11 Inner Layer Fanout Reference

Clock Interface Routing¶

The crystal should be placed inside the shield, with a distance greater than 1mm from the PCB edge. It should be placed as far as possible from high-heat-generating components such as PA, Charge, and PMU circuits, with a distance of more than 5mm to avoid affecting the crystal frequency. The no-layout area around the crystal circuit should be greater than 0.25mm to avoid other metals and components, as shown in Figure 5-12.

Figure 5-12 Crystal Layout Diagram

The 48MHz crystal trace should be routed on the surface layer with a length controlled between 3-10mm, a line width of 0.075mm, and must be surrounded by a ground plane. The trace should be kept away from VBAT, DC/DC, and high-speed signal lines. The surface layer and adjacent layers below the 48MHz crystal area should be kept clear of other traces, as shown in Figures 5-13, 5-14, and 5-15.

Figure 5-13 48MHz Crystal Schematic

Figure 5-14 48MHz Crystal Trace Model

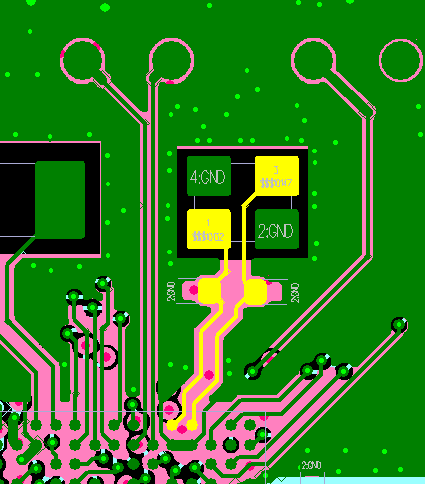

Figure 5-15 48MHz Crystal Trace Reference

The 32.768KHz crystal trace should be routed on the surface layer with a length controlled to ≤10mm, a line width of 0.075mm, and a parallel trace spacing of ≥0.15mm for 32K_XI/32_XO. The trace must be surrounded by a ground plane. The surface layer and adjacent layers below the 32.768KHz crystal area should be kept clear of other traces, as shown in Figures 5-16, 5-17, and 5-18.

Figure 5-16 32.768KHz Crystal Schematic

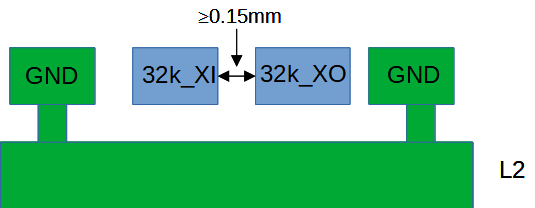

Figure 5-17 32.768KHz Crystal Trace Model

Figure 5-18 32.768KHz Crystal Trace Reference

RF Interface Trace¶

The RF matching circuit should be placed as close as possible to the chip end, not close to the antenna end. The filter capacitors for the AVDD_BRF RF power supply should be placed as close as possible to the chip pins, and the capacitor ground pins should be connected directly to the main ground through vias. The schematic and PCB layout of the π network and power circuit are shown in Figures 5-19 and 5-20, respectively.

Figure 5-19 Schematic of π Network and Power Circuit

Figure 5-20 PCB Layout of π Network and Power Circuit

It is recommended to route the RF traces on the surface layer to avoid vias that can affect RF performance. The trace width should be greater than 10 mils, and the traces should be surrounded by ground planes to avoid sharp and right angles. Multiple ground vias should be placed along the RF traces, and the RF traces should be impedance-controlled to 50 ohms, as shown in Figures 5-21 and 5-22.

Figure 5-21 Schematic of RF Signal Circuit

Figure 5-22 PCB Trace of RF Signal

RF traces must not be routed through areas with DC-DC, VBAT, and high-speed digital signals, such as oscillators, high-frequency clocks, and digital interface signals (I2C, SPI, SDIO, I2S, UART, etc.).

AVSS_RRF, AVSS_TRF, AVSS_TRF2, and AVSS_BB are the ground pins for the RF circuit and must be well-grounded. It is recommended to place blind vias directly on their pads and connect them to the main ground, as shown in Figure 5-23.

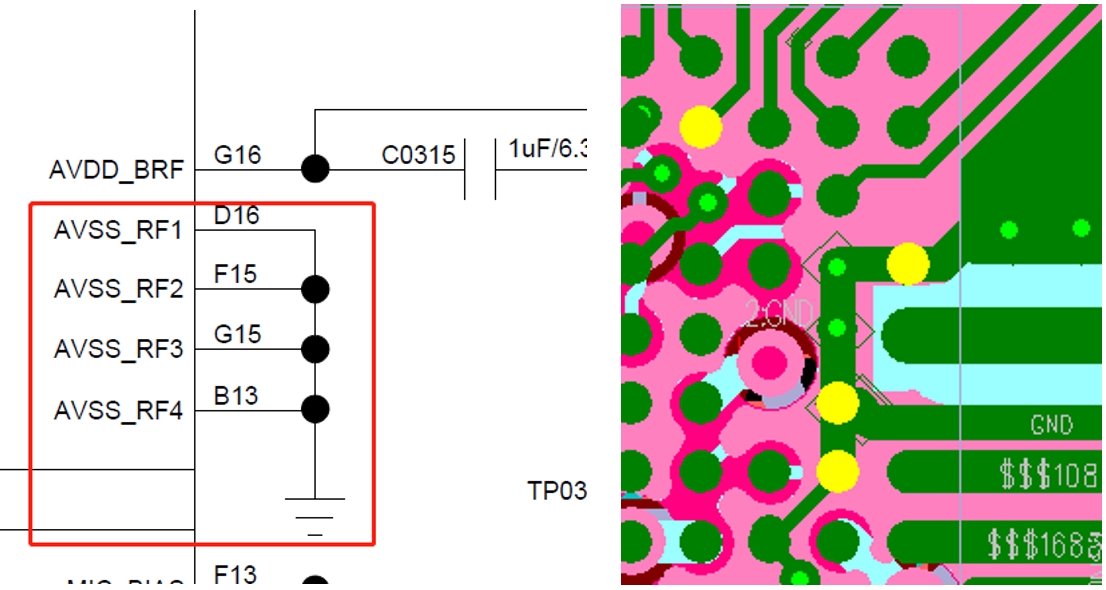

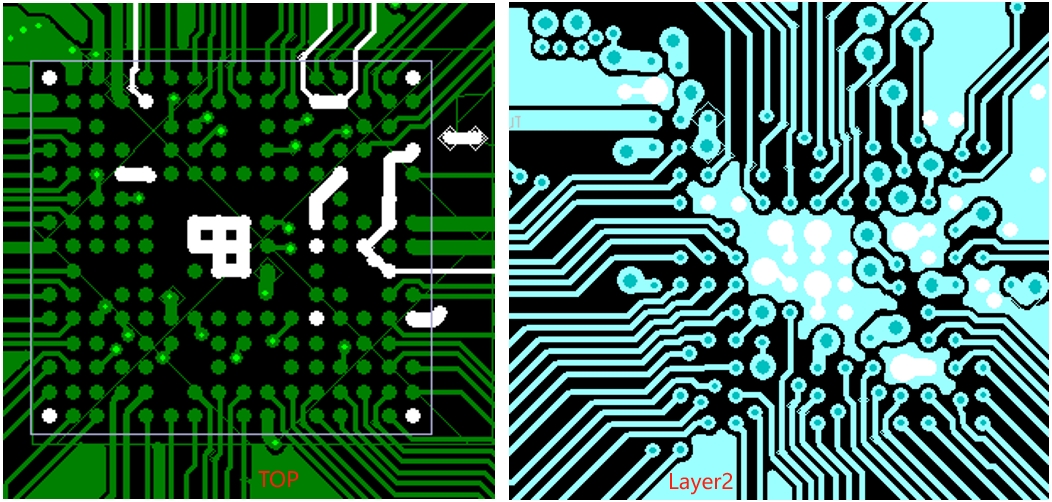

Figure 5-23 RF Circuit Ground Trace Reference

Audio Interface Trace¶

AVDD33_AUD is the power supply pin for the audio interface. The filter capacitors should be placed close to the corresponding pins, and their ground pins should be well-connected to the main ground. MIC_BIAS is the power supply circuit for the audio interface microphone, and the corresponding filter capacitors should be placed close to the corresponding pins, with their ground pins well-connected to the main ground. The filter capacitor for AUD_VREF should be placed close to the pin, as shown in Figure 5-24.

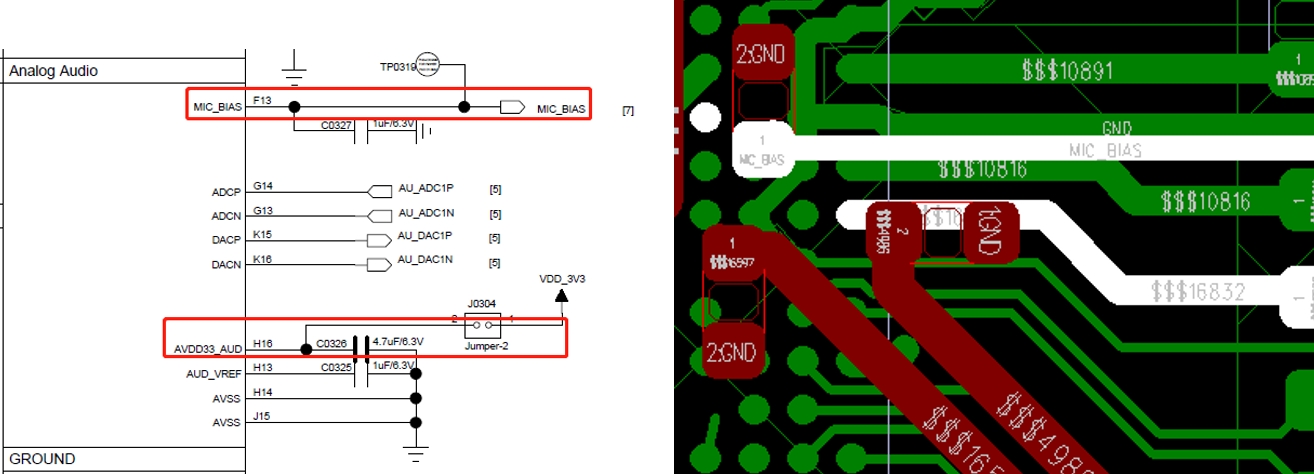

Figure 5-24 Audio Circuit Power Trace Reference

ADCP/ADCN are the analog signal inputs. The corresponding circuit components should be placed as close as possible to the corresponding pins, and each P/N pair should be routed as differential lines. The trace length should be as short as possible, and the differential pairs should be surrounded by ground planes. Other strong interference signals should be kept away from these traces, as shown in Figure 5-25.

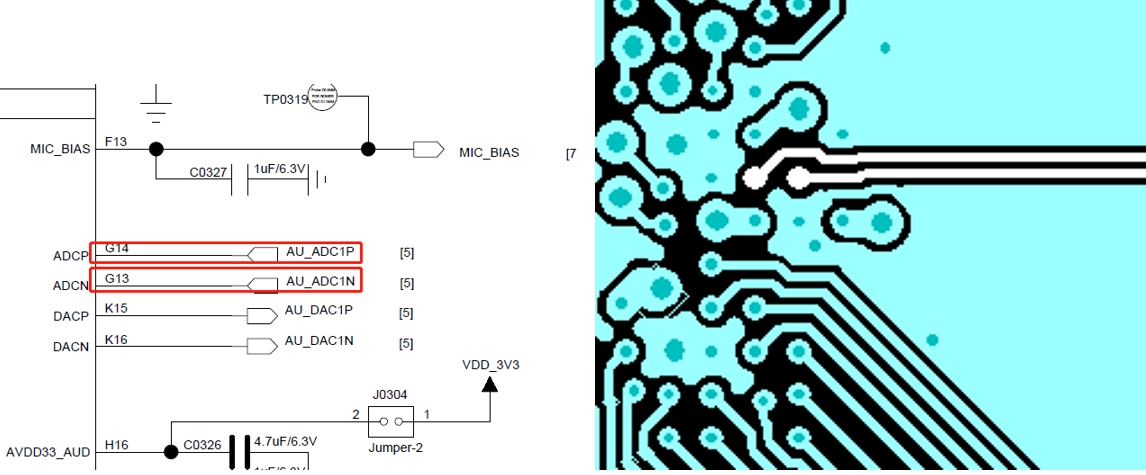

Figure 5-25 Reference Trace for Analog Audio Input

DACP/DACN are the analog signal outputs. The corresponding circuit components should be placed as close as possible to the corresponding pins, and each P/N pair should be routed as differential lines. The trace length should be as short as possible, and the parasitic capacitance should be less than 10pf. The differential pairs should be surrounded by ground planes, and other strong interference signals should be kept away from these traces, as shown in Figure 5-26.

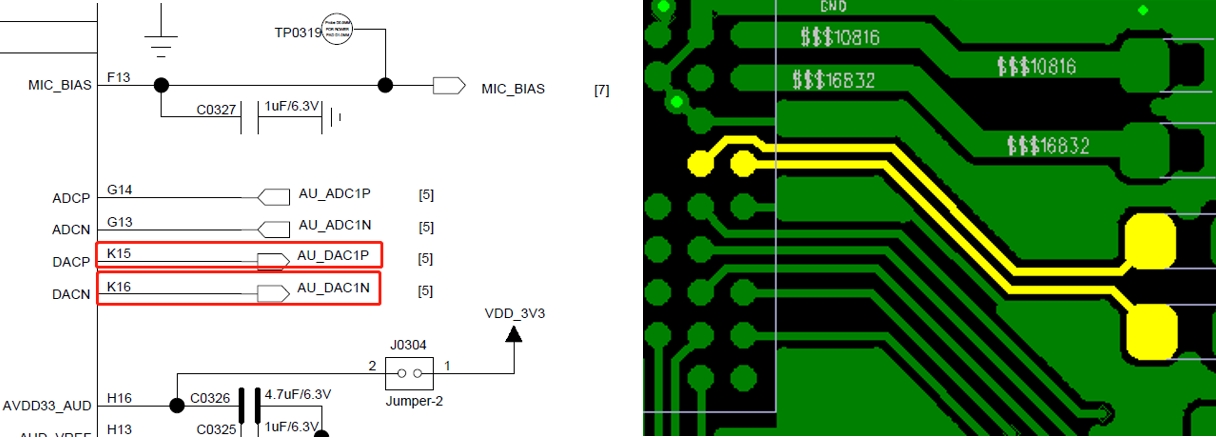

Figure 5-26 Reference Trace for Analog Audio Output

USB Interface Trace¶

USB traces must first pass through the ESD device pins and then to the chip end. The ground pin of the ESD device must be well-connected to the main ground. PA17(USB DP)/PA18(USB_DN) should be routed as differential lines, controlled to 90 ohms differential impedance, and surrounded by ground planes, as shown in Figure 5-27. Figure 5-28 shows the component placement reference and PCB trace model for USB signals.

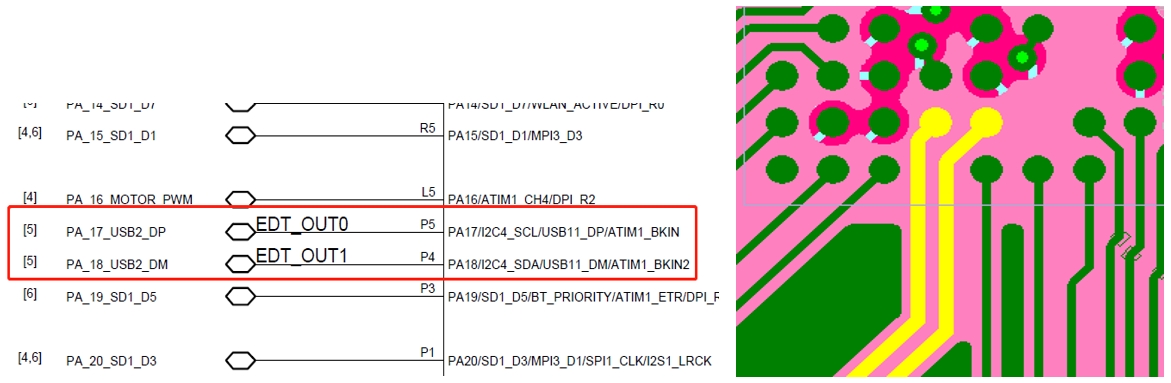

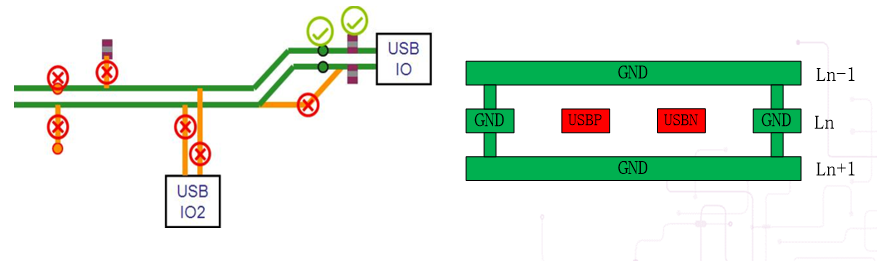

Figure 5-27 USB Signal PCB Design

Figure 5-28 Component Placement Reference and USB PCB Trace Model

SDIO Interface Trace¶

The SF32LB56xV supports two SDIO interfaces, SDIO1 and SDIO2. All SDIO signals should be routed together, avoiding separate routing. The total trace length should be ≤50mm, and the length difference within the group should be ≤6mm. The SDIO clock signal should be surrounded by ground planes, and the DATA and CM signals should also be surrounded by ground planes, as shown in Figures 5-29a and 5-29b.

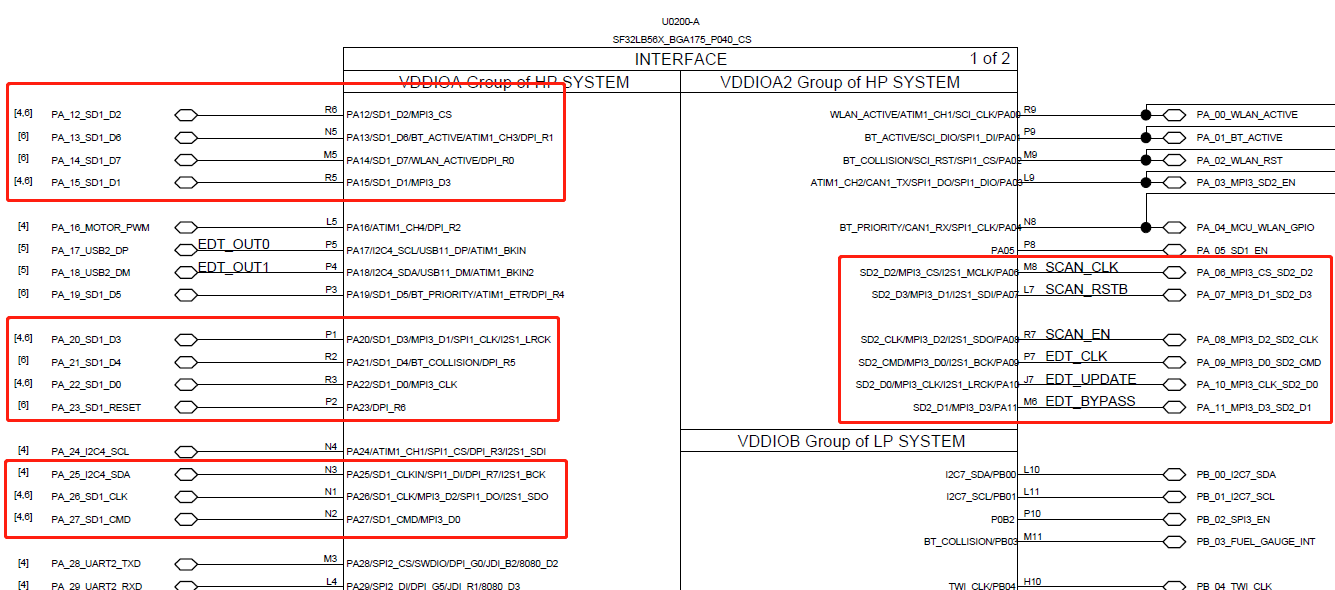

Figure 5-29a SDIO Interface Circuit Diagram

Figure 5-29b SDIO PCB Trace Model

DC-DC Circuit Traces¶

The power inductor and filter capacitors of the DC-DC circuit must be placed close to the chip’s pins. The BUCK_LX trace should be as short and thick as possible to ensure a low inductance loop for the entire DC-DC circuit. All DC-DC output filter capacitors should have multiple vias connecting their ground pins to the main ground plane. The BUCK_FB pin feedback trace must not be too thin and must be greater than 0.25mm. The surface layer of the power inductor area must not be copper-clad, and the adjacent layer must be a complete reference ground to avoid other traces running through the inductor area, as shown in Figure 5-30.

Figure 5-30 DC-DC Key Components PCB Layout

Power Supply Traces¶

PVDD is the power input pin for the built-in PMU module of the chip. The corresponding capacitors must be placed close to the pin, and the traces should be as thick as possible, not less than 0.5mm. PVSS is the ground pin for the PMU module and must be connected to the main ground through vias to avoid floating and affecting the entire PMU performance, as shown in Figure 5-31.

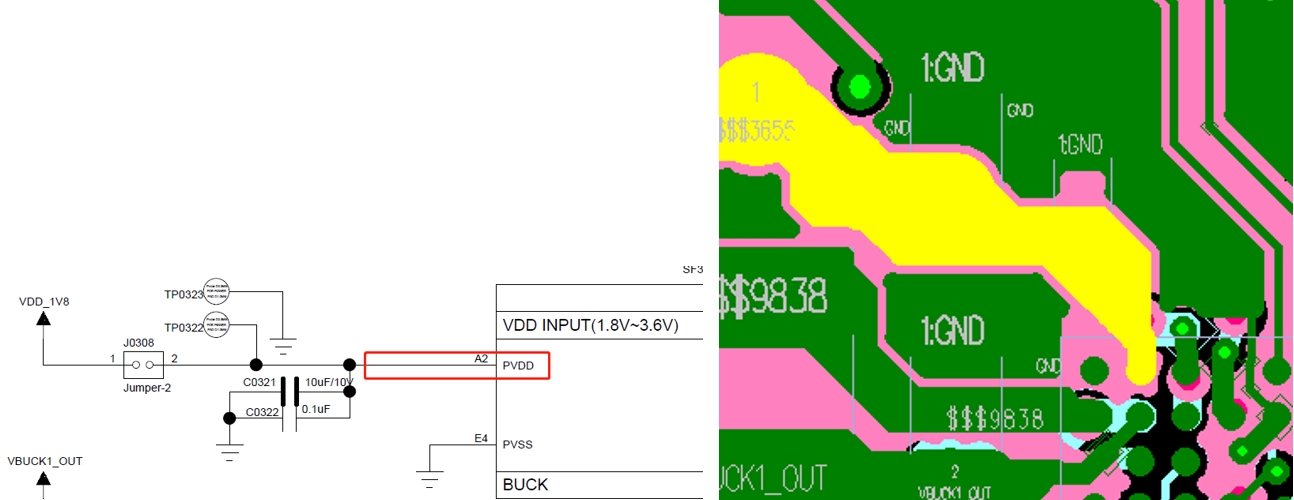

Figure 5-31 PVDD Input Trace

LDO and IO Power Input Traces¶

All LDO outputs and IO power input pins must have their filter capacitors placed close to the corresponding pins. The trace width must meet the input current requirements and should be as short and thick as possible to reduce power ripple and improve system stability, as shown in Figure 5-32.

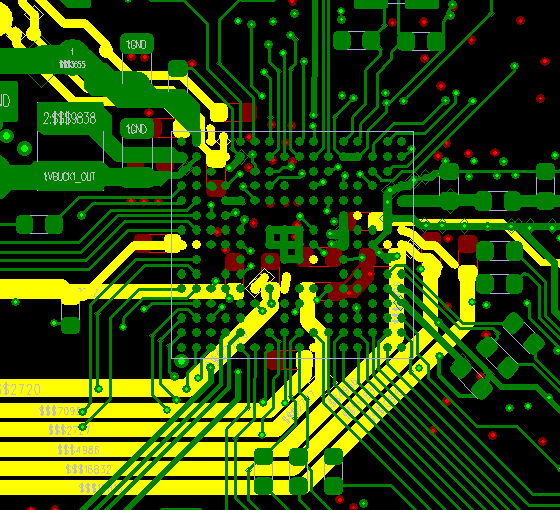

Figure 5-32 LDO and IO Power Input Traces

Other Interface Traces¶

Pins configured as GPADC signal pins must be surrounded by a ground plane to isolate them from other interference signals, such as battery level circuits and temperature check circuits.

PBR0~3 pins can be configured as clock output signal networks and must be surrounded by a ground plane to isolate them from other interference signals, such as 32K outputs.

SF32LB56xV Chip Ground Traces¶

The ground network in the center area of the SF32LB56xV chip must be connected by traces to ensure a sufficient ground plane and connected to the main ground plane through blind vias, as shown in Figures 5-33a and 5-33b.

Figure 5-33a Chip Layers 1-2 Ground Signal

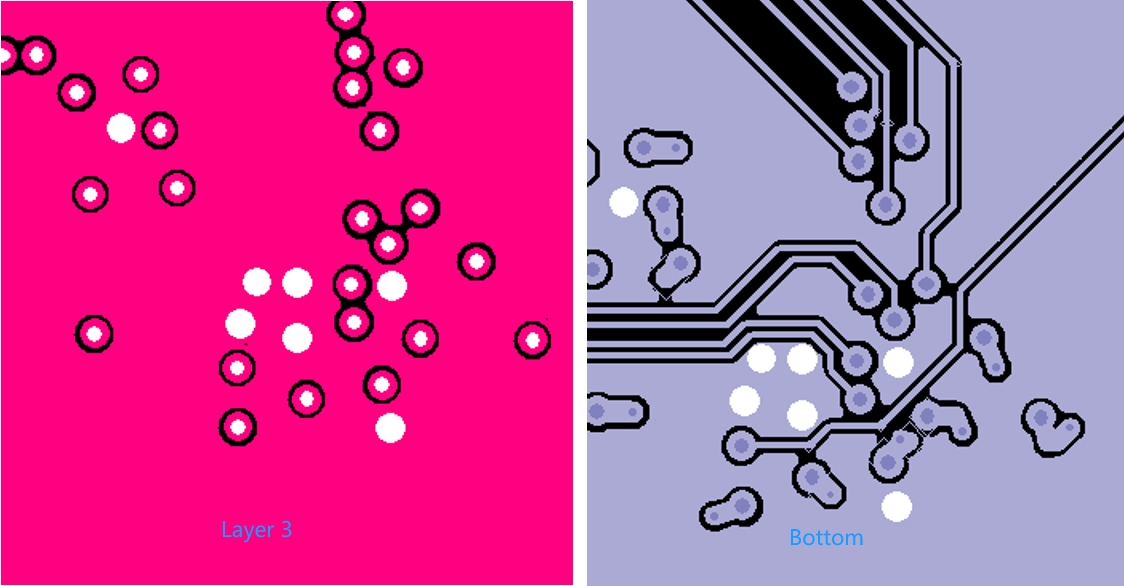

Figure 5-33b Chip Layers 3-4 Ground Signal

EMI&ESD Traces¶

Avoid long traces on the surface layer outside the shield, especially for clock and power signals, which should be routed on inner layers and not on the surface layer. ESD protection devices must be placed close to the corresponding connector pins. Signal traces should pass through the ESD protection device pins first to avoid signal branching and ensure that the ESD device ground pins are connected to the main ground through vias, with short and thick ground traces to reduce impedance and improve ESD device performance.

Other¶

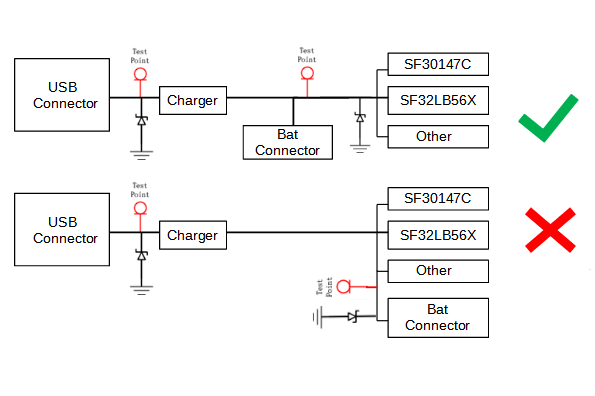

The USB charging line test points must be placed before the TVS diode. The TVS diode for the battery connector must be placed at the front of the platform, and the traces must ensure that they pass through the TVS diode before reaching the chip, as shown in Figure 5-34.

Figure 5-34 Power TVS Layout Reference

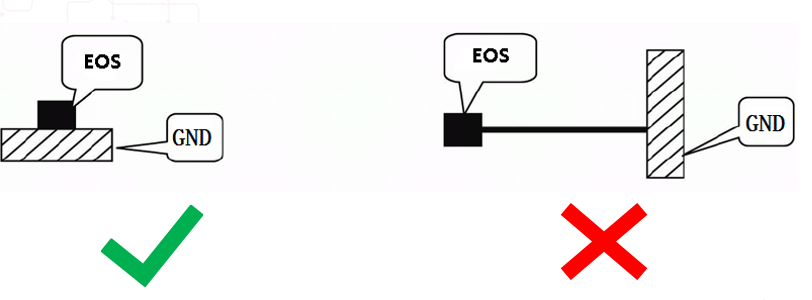

The TVS diode ground pin should avoid long traces and should be connected directly to the ground, as shown in Figure 5-35.

Figure 5-35 TVS Trace Reference

Q&A¶

Question 1: Why are the default states of some GPIOs different from the SPEC description when Mode = 1 is started?

Answer: When Mode = 1 is started, it enters download mode, which changes the states of the MPI3-related GPIOs connected to the external Flash.

Question 2: Why might a soldering iron cause a system hang when soldering a battery, and how can this be avoided?

Answer: Poor grounding of the soldering iron can cause a surge that leads to a system hang. Adding surge and ESD protection at the battery interface and ensuring good grounding of the soldering iron can prevent these issues.

Revision History¶

Version	Date	Release Notes
0.0.1	9/2022	Draft Version

SF32LB56xV - Hardware Design Guide¶

Introduction¶

Packaging¶

Packaging Introduction¶

WBBGA175 Package¶

Typical Application Schemes¶

Schematic Design Guidelines¶

Power Supply¶

Processor Power Supply Requirements¶

SiCh PMIC Chip Power Distribution¶

Power-Up Sequence and Reset¶

Typical Power Circuit¶

Processor BUCK Inductor Selection Requirements¶

Battery and Charging Control¶

Clock¶

RF¶

How to Connect Peripherals to the Big and Little Core Processors¶

Display¶

SPI/QSPI Display Interface¶

MCU8080 Display Interface¶

DPI Display Interface¶

JDI Display Interface¶

Touch and Backlight Interface¶

Storage¶

External Memory for SF32LB56xV¶

Buttons¶

Vibration Motor¶

Audio Interface¶

PBR Interface Description¶

Sensors¶

UART and I2C Pin Configuration¶

GPTIM Pin Configuration¶

Debug and Download Interface¶

Production Programming and Crystal Calibration¶

Schematic and PCB Drawing Checklists¶

PCB Design Guidelines¶

PCB Package Design¶

PCB Stackup Design¶

General PCB Design Rules¶

Blind Via Design¶

Buried Via Design¶

Chip Routing Fanout¶

Clock Interface Routing¶

RF Interface Trace¶

Audio Interface Trace¶

USB Interface Trace¶

SDIO Interface Trace¶

DC-DC Circuit Traces¶

Power Supply Traces¶

LDO and IO Power Input Traces¶

Other Interface Traces¶

SF32LB56xV Chip Ground Traces¶

EMI&ESD Traces¶

Other¶

Q&A¶

Revision History¶
