SF32LB52x Hardware Design Guide¶

Attention

This document applies to chips with the numerical suffixes 0, 3, 5, and 7, which are powered by a lithium battery and support USB charging.

Chips with the suffixes B, E, G, J, and H belong to the SF32LB52X series and use a 3.3 V power supply. Refer to the Hardware Design Guide.

Basic Introduction¶

The main purpose of this document is to help developers develop watch solutions based on the SF32LB52x series chips. This document focuses on hardware design considerations during solution development, with the goal of minimizing developers’ workload and shortening the product time to market.

SF32LB52x is a series of highly integrated, high-performance MCU chips for ultra-low-power artificial intelligence Internet of Things (AIoT) scenarios. The chips use a big/little-core architecture based on the Arm Cortex-M33 STAR-MC1 processor, and integrate a high-performance 2D/2.5D graphics engine, an artificial intelligence neural network accelerator, dual-mode Bluetooth 5.3, and an audio CODEC. They can be widely used in various application scenarios, such as wristband-type wearable electronic devices, smart mobile terminals, and smart homes.

Attention

SF32LB52x is the lithium-battery-powered version of the SF32LB52 series, with a supply voltage of 3.2~4.7V and charging support. It specifically includes the following models:
SF32LB520U36, co-packaged 1MB QSPI-NOR Flash
SF32LB523UB6, co-packaged 4MB OPI-PSRAM
SF32LB525UC6, co-packaged 8MB OPI-PSRAM
SF32LB527UD6, co-packaged 16MB OPI-PSRAM

The processor peripheral resources are as follows:

44x GPIO
3x UART
4x I2C
2x GPTIM
2x SPI
1x I2S audio interface
1x SDIO storage interface
1x PDM audio interface
1x differential analog audio output
1x single-ended analog audio input
Supports single-/dual-/quad-data-line SPI display interfaces and serial JDI-mode display interfaces
Supports both displays with GRAM and displays without GRAM
Supports UART firmware download and software debugging

Package¶

Table 2-1 Package Information Table

Package Name	Dimensions	Pin Pitch
QFN68L	7x7x0.85 mm	0.35 mm

../_images/sf32lb52x-A-package-layout.png

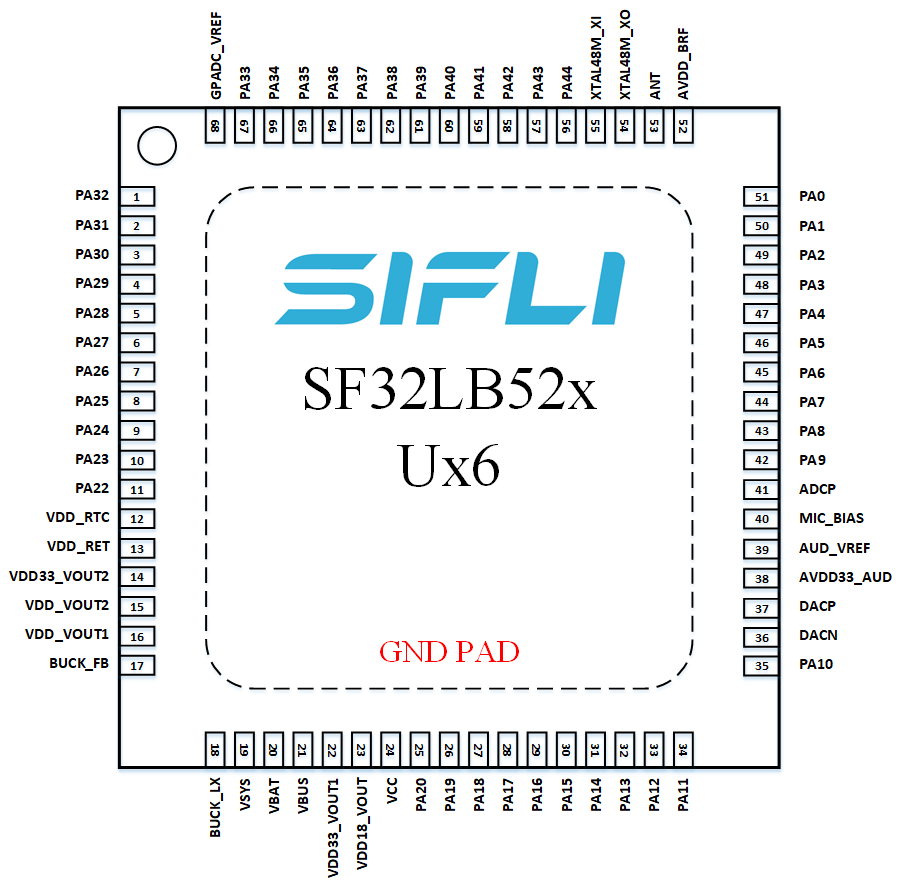

Figure 2-1 QFN68L Pin Distribution

Typical Application Solution¶

The following figure shows the block diagram of a typical SF32LB52x sports watch. The main functions include display, storage, sensors, a vibration motor, and audio input and output.

../_images/sf32lb52x-A-watch-app-diagram-52x.png

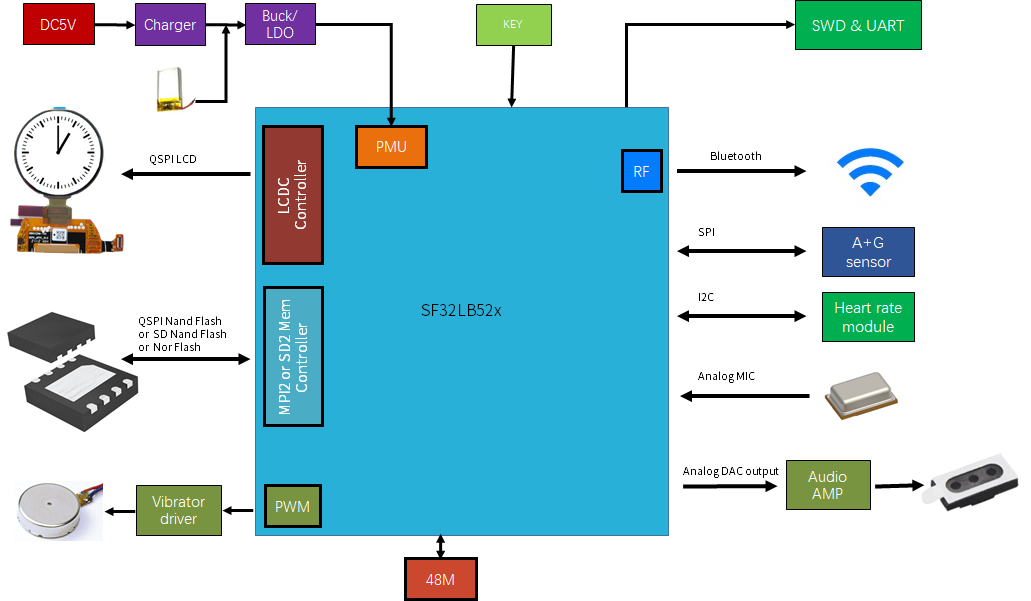

Figure 3-1 Sports Watch Block Diagram

Note

Big/little dual-CPU architecture, meeting both high-performance and low-power design requirements
Integrates charging management and PMU modules on-chip
Supports TFT or AMOLED displays with a QSPI interface, with support for resolutions up to 512*512
Supports PWM backlight control
Supports external QSPI NOR/NAND Flash and SD NAND Flash memory chips
Supports dual-mode Bluetooth 5.3
Supports analog audio input
Supports analog audio output
Supports PWM vibration motor control
Supports accelerometer/geomagnetic/gyroscope sensors with SPI/I2C interfaces
Supports heart rate/blood oxygen/ECG/geomagnetic sensors with SPI/I2C interfaces
Supports UART debug print interface and flashing tools
Supports Bluetooth HCI debug interface
Supports one-to-many firmware flashing on the production line
Supports crystal calibration on the production line
Supports OTA online upgrade functionality

Schematic Design Guidelines¶

Power Supply¶

Processor Power Supply Requirements¶

Table 4-1 Power Supply Requirements

Power Supply pin	Minimum voltage (V)	Typical voltage (V)	Maximum voltage (V)	Maximum current (mA)	Detailed description
VBUS	4.6	5.0	5.5	500	VBUS Power Supply input
VBAT	3.2	-	4.7	500	VBAT Power Supply output
VCC	3.2	-	4.7	500	System Power Supply input⁽¹⁾
VSYS	-	3.3	-	500	VSYS Power Supply output⁽²⁾
BUCK_LX	-	1.25	-	50	BUCK output pin, connected to an inductor
BUCK_FB	-	1.25	-	50	BUCK feedback and internal Power Supply input pin, connected to the other end of the inductor and an external capacitor
VDD_VOUT1	-	1.1	-	50	Internal LDO, external capacitor, internal Power Supply, does not supply power to peripherals
VDD_VOUT2	-	0.9	-	20	Internal LDO, external capacitor, internal Power Supply, does not supply power to peripherals
VDD_RET	-	0.9	-	1	Internal LDO, external capacitor, internal Power Supply, does not supply power to peripherals
VDD_RTC	-	1.1	-	1	Internal LDO, external capacitor, internal Power Supply, does not supply power to peripherals
VDD18_VOUT	-	1.8	-	30	SIP Power Supply⁽³⁾ internal Power Supply, does not supply power to peripherals; can be supplied externally when the LDO is disabled
VDD33_VOUT1	-	3.3	-	150	3.3V LDO output 1⁽⁴⁾, no output by default; software configuration is required for 3.3V output
VDD33_VOUT2	-	3.3	-	150	3.3V LDO output 2, no output by default; software configuration is required for 3.3V output
AVDD33_AUD	2.97	3.3	3.63	50	3.3V audio Power Supply input
AVDD_BRF	2.97	3.3	3.63	100	RF Power Supply input
MIC_BIAS	1.4	-	2.8	-	MIC Power Supply output

Note

⁽¹⁾ VCC power input, powered by a lithium battery. The default software setting for the low battery voltage is 3.48 V. When powered by a constant-voltage power supply, the supply range is 3.6–4.7 V, and a 3.8 V supply is recommended.

⁽²⁾ VSYS power supply, supplies power to AVDD_BRF

⁽³⁾ VDD18_VOUTPower Supply
SF32LB520U36, externally supplied 3.3V Power Supply
SF32LB523UB6, SF32LB525UC6, SF32LB527UD6, use the internal LDO and do not require an external Power Supply
When configuring the software, configure the internal VDD18 LDO according to the chip model; do not enable it when using an external Power Supply

⁽⁴⁾ VDD33_VOUT1Power Supply
SF32LB520U36, only supplies power to VDD18_VOUT, external Flash, and AVDD33_AUD
SF32LB523UB6, SF32LB525UC6, SF32LB527UD6, only supply power to the external Flash and AVDD33_AUD

Processor BUCK Inductor Selection Requirements¶

Key Parameters of the Power Inductor

Important

L (inductance) = 4.7 uH ± 20%, DCR (DC resistance) ≦ 0.4 ohm, Isat (saturation current) ≧ 450 mA.

Battery and Charging Control¶

There are two usage scenarios for the charging circuit: an external charging management chip and an on-chip integrated charging management module.

External Charging Management Chip¶

External charging management chips are divided into two types: those without PPM (power path management) and those with PPM. Figure 4-1 shows a typical charging circuit using a charging chip without PPM. The battery directly supplies power to the VBAT and VCC pins of the SF32LB52x. Figure 4-2 shows a typical charging circuit using a charging chip with PPM. The VSYS of the charging chip supplies power to the VCC pin of the SF32LB52x, and the VBAT of the charging chip is connected to the battery and the SF32LB52x VBAT pin. Both solutions measure the battery voltage through the VBAT pin of the SF32LB52x. The VBAT pin has an integrated GPADC channel that can sample the VBAT voltage, with a sampling accuracy within +/-30 mV.

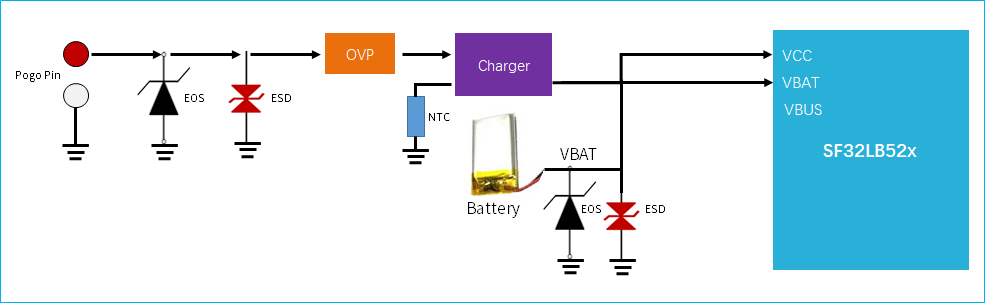

Figure 4-1 Schematic Diagram of External Charging Chip Circuit without PPM Function

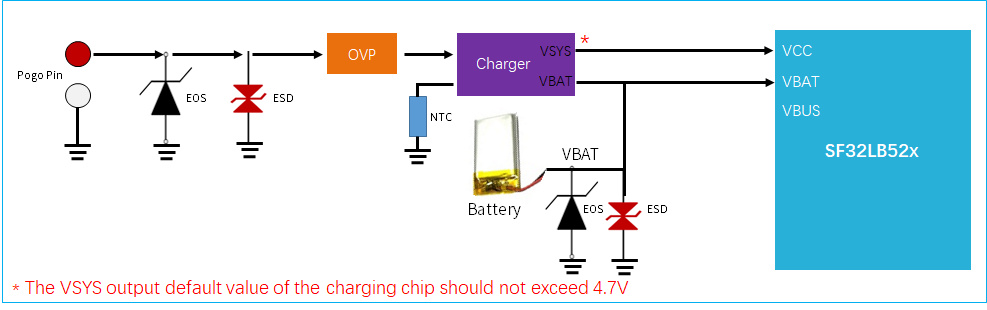

Figure 4-2 Schematic Diagram of External Charging Chip Circuit with PPM Function

On-Chip Integrated Charging Management Module¶

When using the on-chip integrated charging management module of the SF32LB52x, as shown in Figure 4-3, if the battery level is low and the device is powered off, after the charger is plugged in, the battery must be charged to the power-on voltage before the system can start normally and display the charging interface.

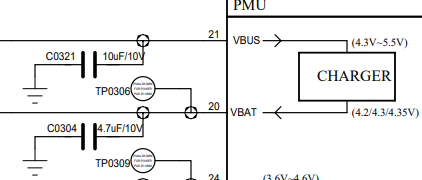

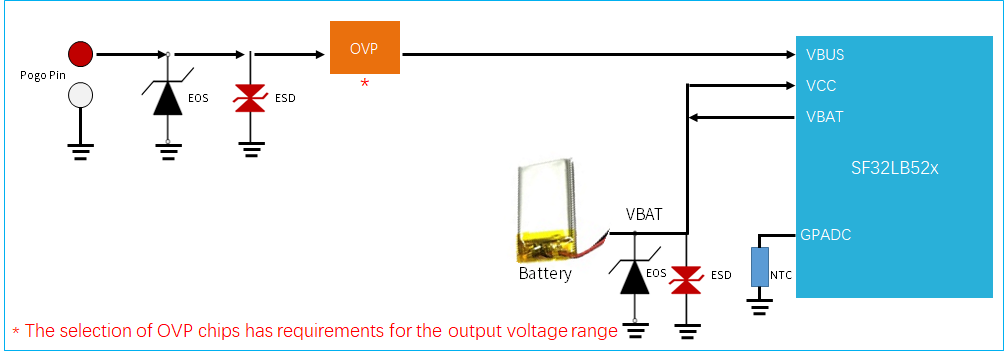

Figure 4-3 Schematic Diagram of Integrated Charging Management Circuit

OVP Chip Selection When Using the On-Chip Integrated Charging Management Module¶

SF32LB52x VBUS pin input voltage range: 4.5 V ~ 5.5 V, so only the following two types of OVP chips can be selected:

OVP chip with adjustable OVLO; reference chip model: AW32905FCR
OVP chip with regulator output; reference chip models: SGM4064YDE8G, LP5305AQVF

Figure 4-4 shows a typical application circuit of an OVP chip with adjustable OVLO. The output voltage VIN_OVLO of the OVP chip should be set between 5.2V and 5.5V, and the tolerances of the chip and resistors should be considered in the calculation. The specific formula is:

Requirement: The tolerance of VOVLO_TH must be ≦3%, and the resistance tolerance of R1 and R2 must be ≦1%

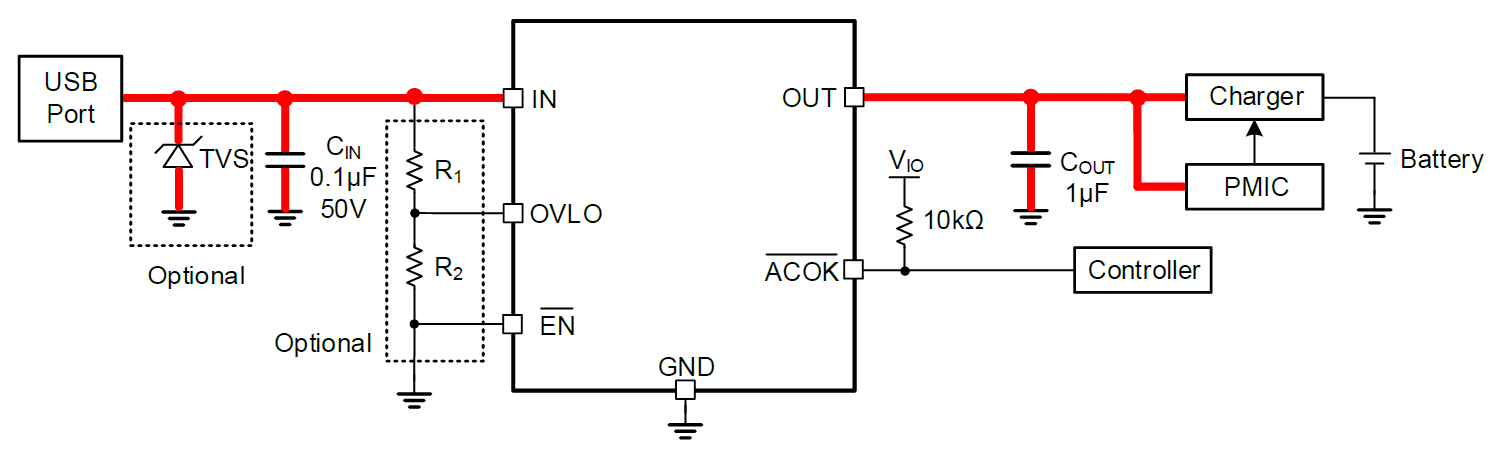

Figure 4-4 Application Circuit Diagram of OVP Chip with Adjustable OVLO

Figure 4-5 shows a typical application circuit diagram of an OVP chip with a regulator output. The fixed regulator output of the OVP chip is less than 5.5V and is used to supply power to the VBUS pin of SF32LB52x.

Requirement: The LDO output voltage of the OVP chip must be 4.5V ~ 5.4V

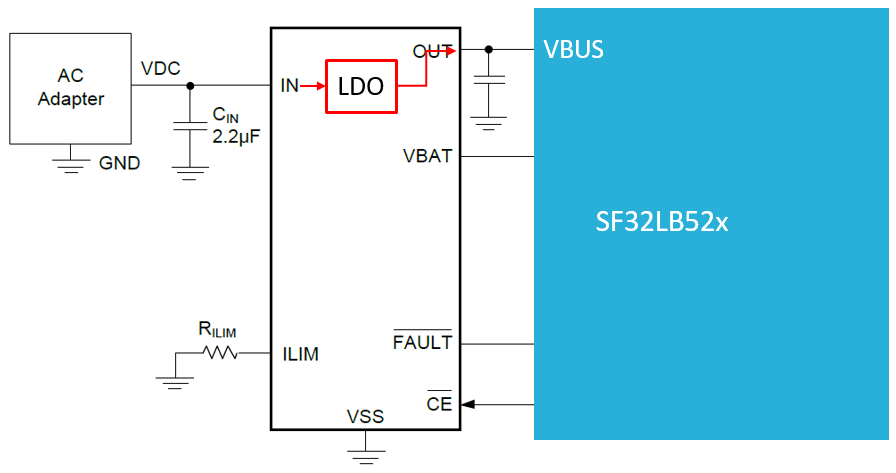

Figure 4-5 Application Circuit Diagram of OVP Chip with Regulator Output

Notes on Using the Internal Charging Management Module and Integrated LDO¶

Important

Notes on using the SF32LB52x internal integrated charging management module:

VBUS input voltage range: 4.6V~5.5V
VCC input voltage range: 3.2V~4.7V
The default trickle current of the charger is 56mA.
The default trickle-to-constant-current transition voltage of the charger is 3.0V.
The default constant current of the Charger is 65 mA and can be adjusted. The adjustment range is 5 to 560 mA.
The default full-charge voltage of the Charger is 4.2 V and can be adjusted. The maximum supported full-charge voltage is 4.45 V.
The recharge voltage of the Charger is the full-charge voltage minus 0.15 V.
The charger VBUS must provide at least 350 mA of current supply capability.
Pay attention to the DC impedance on the VBUS path; it should not be too high. At the maximum current during the charging process, the voltage at the chip VBUS pin must not be lower than 4.6 V.
When using wireless charging, ensure that the power supply capability of the wireless charger is greater than the constant-current charging current.

Notes on using the SF32LB52x integrated LDO:

On the output paths of the internally integrated VDD33_VOUT1 and VDD33_VOUT2, the total capacitance must not exceed 9.6 uF.
AVDD33_AUD can only be powered by VDD33_VOUT1 and cannot use VSYS.
The LCD cannot be powered by the internal LDO; it must be powered by an external LDO.

How to Reduce Standby Power Consumption¶

To meet the long battery life requirements of watch products, it is recommended to use load switches in the hardware design for dynamic power management of each functional module. For modules or paths that are always on, select appropriate devices to reduce quiescent current.

As shown in Figure 4-6, in the typical power architecture diagram of the SF32LB52x system, it is recommended to use VDD33_VOUT2 to power the Motor, VDD33_VOUT1 to power external peripherals such as Flash and Sensor, and an external LDO to power the LCD.

During design, pay attention to the hardware default state of the GPIO pin that controls the power switch, and add pull-up or pull-down resistors with MΩ-level resistance to ensure that the load switch is off by default.

When selecting power devices, choose LDO and Load Switch chips with low quiescent current Iq and low shutdown current Istb. In particular, pay attention to the Iq parameter for always-on power chips.

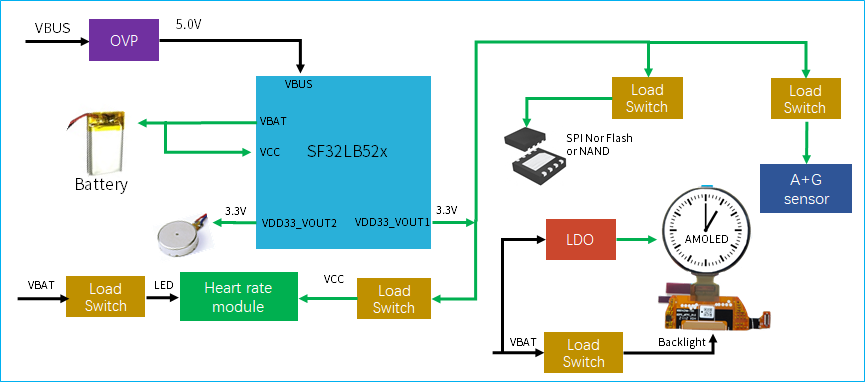

Figure 4-6 SF32LB52x System Power Supply Structure Diagram

Processor Operating Modes and Wake-up Sources¶

Table 4-4 CPU Mode Table

Operating Mode	CPU	Peripherals	SRAM	IO	LPTIM	Wake-up Source	Wake-up Time
Active	Run	Run	Accessible	Can toggle	Run	-	-
Sleep	Stop	Run	Accessible	Can toggle	Run	Any interrupt	<0.5us
DeepSleep	Stop	Stop	Inaccessible, fully retained	Level held	Run	RTC, wake-up IO, GPIO, LPTIM, Bluetooth	250us
Standby	Reset	Reset	Inaccessible, fully retained	Level held	Run	RTC, wake-up IO, LPTIM, Bluetooth	1ms
Hibernate	Reset	Reset	Inaccessible, not retained	High-Z	Reset	RTC, wake-up IO	>2ms

As shown in Table 4-5, the full series of chips supports 15 interrupt sources that can wake up the system in Standby and Hibernate modes.

Table 4-5 Interrupt Wake-Up Source Table

Interrupt Source	Pin	Detailed Description
LWKUP_PIN0	PA24	Interrupt signal 0
LWKUP_PIN1	PA25	Interrupt signal 1
LWKUP_PIN2	PA26	Interrupt signal 2
LWKUP_PIN3	PA27	Interrupt signal 3
LWKUP_PIN10	PA34	Interrupt signal 10
LWKUP_PIN11	PA35	Interrupt signal 11
LWKUP_PIN12	PA36	Interrupt signal 12
LWKUP_PIN13	PA37	Interrupt signal 13
LWKUP_PIN14	PA38	Interrupt signal 14
LWKUP_PIN15	PA39	Interrupt signal 15
LWKUP_PIN16	PA40	Interrupt signal 16
LWKUP_PIN17	PA41	Interrupt signal 17
LWKUP_PIN18	PA42	Interrupt signal 18
LWKUP_PIN19	PA43	Interrupt signal 19
LWKUP_PIN20	PA44	Interrupt signal 20

Clock¶

The chip requires two external clock sources: a 48 MHz main crystal and a 32.768 kHz RTC crystal. The detailed specification requirements and selection criteria for the crystals are as follows:

Important

Table 4-6 Crystal Specification Requirements

Crystal	Crystal specification requirements	Detailed description
48MHz	7pF≦CL≦12pF (recommended value 8.8pF) △F/F0≦±10ppm ESR≦30 ohms (recommended value 22ohms)	Crystal oscillator power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use components with relatively smaller CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12pF, no capacitors need to be mounted
32.768KHz	CL≦12.5pF (recommended value 7pF) △F/F0≦±20ppm ESR≦80k ohms (recommended value 38Kohms)	Crystal power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power consumption performance, it is recommended to use components with relatively small CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12.5pF, no capacitor needs to be soldered

Table 4-7 Recommended Crystal List

Model	Manufacturer	Parameters
E1SB48E001G00E	Hosonic	F0 = 48.000000MHz, △F/F0 = -6 ~ 8 ppm, CL = 8.8 pF, ESR = 22 ohms Max TOPR = -30 ~ 85℃, Package = (2016 metric)
ETST00327000LE	Hosonic	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)
SX20Y048000B31T-8.8	TKD	F0 = 48.000000MHz, △F/F0 = -10 ~ 10 ppm, CL = 8.8 pF, ESR = 40 ohms Max TOPR = -20 ~ 75℃, Package = (2016 metric)
SF32K32768D71T01	TKD	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)

** Note: The ESR of SX20Y048000B31T-8.8 is slightly larger, and the static power consumption will also be slightly higher. When routing the PCB, remove at least the second-layer GND copper under the crystal to reduce the parasitic load capacitance on the Clock signal. **

For detailed material certification information, refer to: SIFLI-MCU-AVL Certification List

RF¶

The RF traces require a 50-ohm characteristic impedance. If the antenna is already matched, no additional RF components are required. It is recommended to reserve a π-type matching network in the design for spurious filtering or antenna matching.

Figure 4-7 RF Circuit Diagram

Display¶

The chip supports 3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, and serial JDI interfaces. It supports 16.7M-color (RGB888), 262K-color (RGB666), 65K-color (RGB565), and 8-color (RGB111) color depth modes. The maximum supported resolution is 512RGBx512. The list of supported LCD drivers is shown in Table 4-8.

Table 4-8 LCD Driver Support List

Model	Manufacturer	Resolution	Type	Interface
RM69090	Raydium	368*448	Amoled	3-Line SPI，4-Line SPI，Dual data SPI， Quad data SPI，MIPI-DSI
RM69330	Raydium	454*454	Amoled	3-Line SPI，4-Line SPI，Dual data SPI， Quad data SPI，8-bits 8080-Series MCU ，MIPI-DSI
ILI8688E	ILITEK	368*448	Amoled	Quad data SPI，MIPI-DSI
SH8601A	Shine World Technology	454*454	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, 8-bits 8080-Series MCU, MIPI-DSI
SPD2012	Solomon	356*400	TFT	Quad data SPI
GC9C01	Galaxycore	360*360	TFT	Quad data SPI
GC9B71	Galaxycore	320*380	TFT	Quad data SPI
ST77903	Sitronix	400*400	TFT	Quad data SPI
ICNA3311	Chipone	454*454	Amoled	Quad data SPI
FT2308	FocalTech	410*494	Amoled	Quad data SPI

SPI/QSPI Display Interface¶

The chip supports 3/4-wire SPI and Quad-SPI interfaces for connecting LCD displays. The signals are described in the table below.

Table 4-9 SPI/QSPI Signal Connection Method

spi signal	Pin	Detailed description
CSx	PA03	Enable signal
WRx_SCL	PA04	Clock signal
DCx	PA06	Data/command signal in 4-wire SPI mode; data 1 in Quad-SPI mode
SDI_RDx	PA05	Data input signal in 3/4-wire SPI mode; data 0 in Quad-SPI mode
SDO	PA05	Data output signal in 3/4-wire SPI mode; short it together with SDI_RDX
D[0]	PA07	Data 2 in Quad-SPI mode
D[1]	PA08	Data 3 in Quad-SPI mode
RESET	PA00	Signal for resetting the Display screen
TE	PA02	Tearing effect to MCU frame signal

JDI Display Interface¶

The chip supports a parallel JDI interface for connecting LCD displays, as shown in the table below.

Table 4-10 Parallel JDI Display Signal Connection Method

JDI Signal	I/O	Detailed Description
JDI_VCK	PA39	Shift clock for the vertical driver
JDI_VST	PA08	Start signal for the vertical driver
JDI_XRST	PA40	Reset signal for the horizontal and vertical driver
JDI_HCK	PA41	Shift clock for the horizontal driver
JDI_HST	PA06	Start signal for the horizontal driver
JDI_ENB	PA07	Write enable signal for the pixel memory
JDI_R1	PA05	Red image data (odd pixels)
JDI_R2	PA42	Red image data (even pixels)
JDI_G1	PA04	Green image data (odd pixels)
JDI_G2	PA43	Green image data (even pixels)
JDI_B1	PA03	Blue image data (odd pixels)
JDI_B2	PA02	Blue image data (even pixels)

Touch and Backlight Interfaces¶

The chip supports an I2C-format touchscreen control interface and a touch status interrupt input. It also supports one PWM signal to control the enable and brightness of the backlight power supply, as shown in the table below.

Table 4-11 Touch and Backlight Control Connection Method

Touchscreen and Backlight Signal	Pin	Detailed Description
Interrupt	PA43	Touch status interrupt signal (wake-up capable)
I2C1_SCL	PA42	Clock signal for the touchscreen I2C
I2C1_SDA	PA41	Data signal for the touchscreen I2C
BL_PWM	PA01	Backlight PWM control signal
Reset	PA44	Touch reset signal

Storage¶

Memory Connection Interface Description¶

The chip supports four types of external storage media: SPI NOR Flash, SPI NAND Flash, SD NAND Flash, and eMMC.

Table 4-12 SPI Nor/Nand Flash Signal Connection

Flash Signal	I/O Signal	Detailed Description
CS#	PA12	Chip select, active low.
SO	PA13	Data Input (Data Input Output 1)
WP#	PA14	Write Protect Output (Data Input Output 2)
SI	PA15	Data Output (Data Input Output 0)
SCLK	PA16	Serial Clock Output
Hold#	PA17	Data Output (Data Input Output 3)

Table 4-13 SD Nand Flash and eMMC Signal Connection

Flash Signal	I/O Signal	Detailed Description
SD2_CMD	PA15	Command signal
SD2_D1	PA17	Data 1
SD2_D0	PA16	Data 0
SD2_CLK	PA14	Clock signal
SD2_D2	PA12	Data 2
SD2_D3	PA13	Data 3

Note

The eMMC chip has two power domains, VCC and VCCQ. Method 1: the two power supplies can be controlled together, resulting in low shutdown power consumption, but the eMMC recovers slowly from sleep and the CPU average power consumption is high. Method 2: VCC can be controlled independently while VCCQ remains continuously powered; shutdown power consumption is higher than in Method 1, but the eMMC recovers quickly from sleep and the CPU average power consumption is lower than in Method 1.

Boot Settings¶

The chip supports booting from internally co-packaged SPI NOR Flash, external SPI NOR Flash, external SPI NAND Flash, and external SD NAND Flash. Specifically:

SF32LB520Ux6 has internally co-packaged flash and boots from the internally co-packaged flash by default.
SF32LB523/5/7Ux6 has internally co-packaged PSRAM and must boot from an external storage medium.

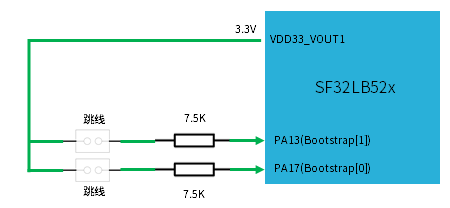

Figure 4-8 Recommended Circuit Diagram for Bootstrap Pins

Table 4-14 Boot Option Settings

Bootstrap[1] (PA13)	Bootstrap[0] (PA17)	Boot From ext memory
L	L	SPI Nor Flash
L	H	SPI Nand Flash
H	X	SD Nand Flash

Boot Storage Media Power Control¶

The chip supports power switch control for the boot storage media to reduce shutdown power consumption. The enable pin of the power switch must be controlled by PA21, and the required enable level for the switch is [high on, low off].

Important

SF32LB520Ux6 has internally co-packaged flash. Please use VDD33_VOUT1 to power VDD18_VOUT, and set the internal LDO of VDD18_VOUT to the off state.
SF32LB523/5/7Ux6 has internally co-packaged PSRAM, which is powered by the internal LDO. Simply connect VDD18_VOUT to the external power supply.
When the external storage medium is NOR Flash, use VDD33_VOUT1 for power supply; no additional power switch is required in between.
When the external storage medium is SPI NAND or SD NAND, use VDD33_VOUT1 for power supply, and a power switch must be added.
In the reference design, pull-up resistor locations are reserved for both PA13 and PA17. Select the pull-up resistor according to the storage medium type. The recommended resistance is 7.5 kΩ.

Buttons¶

Power On/Off Button¶

The chip’s PA34 supports a long-press reset function and can be designed as a button to implement power on/off plus long-press reset. The long-press reset function of PA34 is active high, so it should be designed with a default pull-down to low, and the level becomes high after the button is pressed, as shown in Figure 4-9.

Figure 4-9 Power On/Off Button Circuit Diagram

Mechanical Rotary Knob Button¶

Figure 4-10 Power On/Off Button Circuit Diagram

Vibration Motor¶

The chip supports PWM output to control a vibration motor.

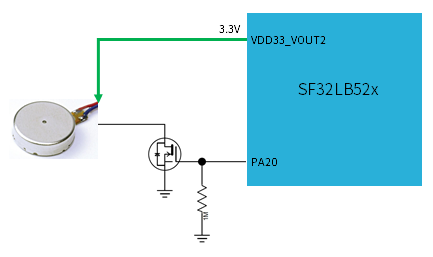

Figure 4-11 Vibration Motor Circuit Diagram

Audio Interface¶

The chip’s audio-related interfaces are shown in Table 4-15. The audio interface signals have the following characteristics:

Supports one single-ended ADC input for connecting an external analog MIC. A DC-blocking capacitor with a capacitance of at least 2.2uF must be added in series, and the analog MIC power supply should be connected to the chip’s MIC_BIAS power output pin;
Supports one differential DAC output for connecting an external analog audio PA. The DAC output traces should be routed as differential traces with proper ground shielding. Also note: trace capacitance < 10pF, length < 2cm.

Table 4-15 Audio Signal Connection Method

Audio signal	Pin	Detailed description
BIAS	MIC_BIAS	Microphone Power Supply
AU_ADC1P	ADCP	Single-ended analog MIC input
AU_DAC1P	DACP	Differential analog output P
AU_DAC1N	DACN	Differential analog output N

The recommended circuit for an analog MEMS MIC is shown in Figure 4-12, and the recommended single-ended circuit for an analog ECM MIC is shown in Figure 4-13. MEMS_MIC_ADC_IN and ECM_MIC_ADC_IN are connected to the ADCP input pin of SF32LB52x.

Figure 4-12 Analog MEMS MIC Single-Ended Input Circuit Diagram

Figure 4-13 Analog ECM Single-Ended Input Circuit Diagram

The recommended circuit for analog audio output is shown in Figure 4-14. Note that the differential low-pass filter inside the dashed box should be placed close to the chip.

Figure 4-14 Analog Audio PA Circuit Diagram

Sensors¶

The chip supports sensors such as heart rate, accelerometer, and geomagnetic sensors. For the sensor power supply, select a load switch with a relatively low Iq to control power switching.

UART and I2C Pin Settings¶

The chip supports mapping UART and I2C functions to any pin. All PA interfaces can be mapped as UART or I2C function pins.

GPTIM Pin Settings¶

The chip supports mapping the GPTIM function to any pin. All PA interfaces can be mapped as GPTIM function pins.

Debug and Flashing Interface¶

The chip supports the DBG_UART interface for flashing and debugging, and connects to a PC through a UART-to-USB dongle board with a 3.3 V interface.

The SWD interface and DGB_UART interface are multiplexed on PA18 and PA19. The default configuration after power-on is the DBG_UART function.

DBG_UART supports single-step debugging and log output. For details, refer to the user manuals for SFtool and Impeller.

Table 4-16 Debug Port Connection Method

DBG signal	Pin	Detailed description
DBG_UART_RXD	PA18	Debug UART receive
DBG_UART_TXD	PA19	Debug UART transmit

Production Line Flashing and Crystal Calibration¶

SiFli provides an offline downloader to complete production line firmware flashing and crystal calibration. During hardware design, be sure to reserve at least the following test points: PVDD, GND, AVDD33, DB_UART_RXD, DB_UART_RXD, PA01.

For detailed flashing and crystal calibration, see the “**_Offline Downloader User Guide.pdf” document included in the development package.

Schematic and PCB Drawing Checklist¶

See the “Schematic checklist.xlsx” and “PCB checklist.xlsx” documents included in the development package.

PCB Design Guidelines¶

PCB Footprint Design¶

The QFN68L package dimensions of the SF32LB52x series chips are 7 mm × 7 mm × 0.85 mm; pin count: 68; pin pitch: 0.35 mm. The detailed dimensions are shown in Figure 5-1.

Figure 5-1 QFN68LPackage Dimension Drawing

Figure 5-2 QFN68LPackage Outline Drawing

Figure 5-3 QFN68LPackage PCB Pad Design Reference

PCB Stackup Design¶

The SF32LB52x series chips support single-sided and double-sided layouts. Components can be placed on one side, or capacitors and other components can be placed on the back side of the chip. The PCB supports a PTH through-hole design. A 4-layer PTH design is recommended. The recommended reference stack-up structure is shown in Figure 5-4.

Figure 5-4 Reference Stackup Structure Diagram

General PCB Design Rules¶

The general PCB design rules for a PTH board are shown in Figure 5-5.

Figure 5-5 General Design Rules

PCB Trace Fanout¶

For QFN package signal fanout, all pins are fanned out through the top layer, as shown in Figure 5-6.

Figure 5-6 Top-Layer Fanout Reference

Clock Interface Routing¶

The crystal must be placed inside the shielding can, with a clearance of more than 1 mm from the PCB outline. Keep it as far away as possible from components that generate significant heat, such as PA, Charge, PMU, and other circuit components. The distance should preferably be greater than 5 mm to avoid affecting the crystal frequency offset. The crystal circuit keep-out area should have a clearance greater than 0.25 mm to avoid other metals and components, as shown in Figure 5-7.

Figure 5-7 Crystal Layout Diagram

It is recommended to route the 48 MHz crystal traces on the top layer, with the length controlled within the range of 3–10 mm and the trace width 0.1 mm. Three-dimensional ground shielding is required, and the traces must be kept away from VBAT, DC/DC, and high-speed signal lines. No plane voids or copper cutouts are allowed on the top layer under the 48 MHz crystal area or on adjacent layers. Other traces are prohibited from passing through this area, as shown in Figures 5-8, 5-9, and 5-10.

Figure 5-8 48MHz Crystal Schematic

Figure 5-9 48MHz Crystal Routing Model

../_images/sf32lb52X-B-PCB-48M-ROUTE-REF.png

Figure 5-10 48MHz Crystal Routing Reference

It is recommended to route the 32.768 kHz crystal traces on the top layer, with the length controlled to ≤10 mm and a trace width of 0.1 mm. The spacing between the parallel 32K_XI/32_XO traces must be ≥0.15 mm, and three-dimensional ground shielding is required. No plane voids or copper cutouts are allowed on the top layer under the crystal area or on adjacent layers, and no other traces are allowed to pass through this area, as shown in Figures 5-11, 5-12, and 5-13.

Figure 5-11 32.768KHz Crystal Schematic

Figure 5-12 32.768KHz Crystal Routing Model

../_images/sf32lb52X-B-PCB-32K-ROUTE-REF.png

Figure 5-13 32.768KHz Crystal Routing Reference

RF Interface Routing¶

The RF matching circuit should be placed as close as possible to the chip side, not near the antenna side. The filter capacitor for the AVDD_BRF RF power supply should be placed as close as possible to the chip pin, and the capacitor ground pin should be connected directly to the main ground through a via. The schematic and PCB layout of the π-type network for the RF signal are shown in Figures 5-14 and 5-15, respectively.

Figure 5-14 π-Type Network and Power Supply Circuit Schematic

Figure 5-15 π-Type Network and Power Supply PCB Layout

It is recommended to route RF traces on the top layer to avoid vias and layer transitions that may affect RF performance. The trace width should preferably be greater than 10 mil. Three-dimensional ground shielding is required, and acute-angle and right-angle routing should be avoided. RF traces should be controlled to 50 Ω impedance, with plenty of shielding ground vias placed on both sides, as shown in Figures 5-16 and 5-17.

Figure 5-16 RF Signal Circuit Schematic

Figure 5-17 RF Signal PCB Routing Diagram

Audio Interface Routing¶

AVDD33_AUD is the audio power supply pin, and its filter capacitor should be placed close to the corresponding pin so that the ground pin of the filter capacitor has a solid connection to the PCB main ground. MIC_BIAS is the power output pin that supplies power to the microphone peripheral, and its corresponding filter capacitor should be placed close to the corresponding pin. Similarly, the filter capacitor for the AUD_VREF pin should also be placed close to the pin, as shown in Figures 5-18a and 5-18b.

../_images/sf32lb52X-B-SCH-AUDIO-PWR.png

Figure 5-18a Audio-Related Power Supply Filter Circuit

../_images/sf32lb52X-B-PCB-AUDIO-PWR.png

Figure 5-18b Reference PCB Routing for the Audio-Related Power Supply Filter Circuit

For the analog signal input ADCP pin, place the corresponding circuit components as close as possible to the chip pin, keep the trace length as short as possible, apply three-dimensional ground shielding, and keep it away from other strong interference signals, as shown in Figures 5-19a and 5-19b.

../_images/sf32lb52X-B-SCH-AUDIO-ADC.png

Figure 5-19a Analog Audio Input Schematic

../_images/sf32lb52X-B-PCB-AUDIO-ADC.png

Figure 5-19b Analog Audio Input PCB Design

For the analog signal output DACP/DACN pins, place the corresponding circuit components as close as possible to the chip pins. Each P/N pair must be routed as differential traces, with trace lengths kept as short as possible and parasitic capacitance less than 10 pF. Three-dimensional ground shielding is required, and the traces should be kept away from other strong interference signals, as shown in Figures 5-20a and 5-20b.

../_images/sf32lb52X-B-SCH-AUDIO-DAC.png

Figure 5-20a Analog Audio Output Schematic

../_images/sf32lb52X-B-PCB-AUDIO-DAC.png

Figure 5-20b Analog Audio Output PCB Design

USB Interface Routing¶

The USB traces PA35(USB DP)/PA36(USB_DN) must first pass through the ESD device pins and then go to the chip side. Ensure that the ESD device ground pins are properly connected to the main ground. The traces must be routed as differential traces with 90-ohm differential impedance control, and three-dimensional ground shielding must be applied, as shown in Figures 5-21a and 5-21b.

5-21a USB Signal Schematic

5-21b USB Signal PCB Design

Figure 5-22a is a reference diagram for the component layout of USB signals, and Figure 5-22b is the PCB routing model.

../_images/sf32lb52X-B-PCB-USB-LAYOUT.png

Figure 5-22a USB Signal Device Layout Reference

../_images/sf32lb52X-B-PCB-USB-ROUTE.png

Figure 5-22b USB Signal Routing Model

SDIO Interface Routing¶

SDIO signal traces should be routed together as much as possible and should not be routed separately. The total trace length should be ≤50 mm, and the length matching within the group should be controlled to ≤6 mm. The clock signal of the SDIO interface requires three-dimensional ground shielding, and the DATA and CMD signals also require ground shielding, as shown in Figures 5-23a and 5-23b.

Figure 5-23a SDIO Interface Circuit Diagram

Figure 5-23b SDIO PCB Routing Model

DCDC Circuit Routing¶

The power inductor and filter capacitors of the DC-DC circuit must be placed close to the chip pins. The BUCK_LX trace should be as short and wide as possible to ensure low loop inductance for the entire DC-DC circuit. The feedback trace for the BUCK_FB pin must not be too narrow and must be greater than 0.25 mm. The ground pins of all DC-DC output filter capacitors should be connected to the main ground plane with multiple vias. Copper pouring is prohibited on the top layer in the power inductor area, and the adjacent layer must be a complete reference ground. Avoid routing other traces through the inductor area, as shown in Figures 5-24a and 5-24b.

Figure 5-24a DC-DC Critical Component Circuit Diagram

Figure 5-24b DC-DC Critical Component PCB Layout Diagram

Power Supply Routing¶

VCC is the power input pin for the chip’s built-in PMU module. The corresponding capacitor must be placed close to the pin, and the trace should be as wide as possible and no less than 0.4 mm, as shown in Figures 5-25a and 5-25b.

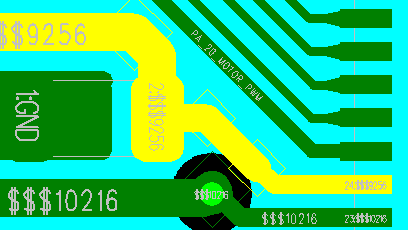

Figure 5-25a VCCPower Supply Routing Diagram

Figure 5-25b VCCPower Supply Routing Diagram

Place the filter capacitors for pins such as VDD_VOUT1, VDD_VOUT2, VDD_RET, VDD_RTC, VDD18_VOUT, VDD33_VOUT1, VDD33_VOUT2, AVDD33_AUD, and AVDD_BRF close to their corresponding pins. The trace width must meet the input current requirements, and the traces should be as short and wide as possible to reduce power ripple and improve system stability.

Charging Circuit Routing¶

VBUS and VBAT are the input and output pins of the chip’s integrated charging module, respectively. Place the corresponding filter capacitors close to the pins. Because the charging loop current is relatively high, the pin trace width must be at least 0.4 mm. Do not route sensitive signals in parallel with these traces to avoid interference during charging. Use star routing and do not share the routing path with other traces, so that charging does not interfere with other circuit modules.

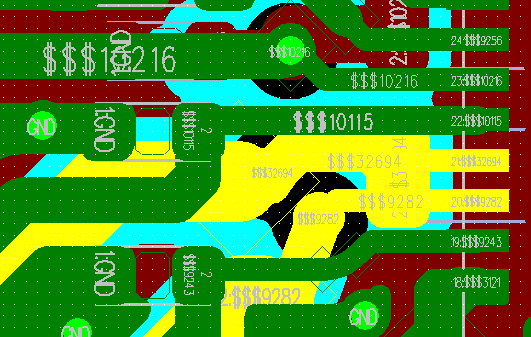

Figure 5-26a VBUS&VBATPower Supply Routing Diagram

Figure 5-26b VBUS&VBATPower Supply Routing Diagram

Other Interface Routing¶

When a pin is configured as a GPADC signal pin, three-dimensional ground shielding is required, and it must be kept away from other interfering signals, such as the battery level circuit and temperature check circuit.

EMI&ESD¶

Avoid long-distance routing on the outer layer outside the shielding can. In particular, interfering signals such as clocks and power should be routed on inner layers as much as possible and must not be routed on the outer layer.
ESD protection devices must be placed close to the corresponding connector pins. Signal traces should first pass through the ESD protection device pins to avoid signal branches that bypass the ESD protection pins.
The ground pins of ESD devices must be connected to the main ground through vias. Ensure that the ground pad traces are short and wide to reduce impedance and improve ESD device performance.

Other¶

The USB charging cable test point must be placed in front of the TVS diode, and the battery holder TVS diode must be placed in front of the platform. The routing must ensure that the trace passes through the TVS diode first and then reaches the chip end, as shown in Figure 5-27.

Figure 5-27 Power SupplyTVS Layout Reference

Figure 5-28 TVS Routing Reference

Avoid routing a long trace from the ground pin of the TVS diode before connecting it to ground whenever possible, as shown in Figure 5-28.

Revision History¶

Version	Date	Release Notes
0.0.1	10/2024	Initial version
