SF32LB58x Hardware Design Guide

Basic Introduction

The main purpose of this document is to help hardware engineers complete schematic and PCB designs based on the SF32LB58x series chips.

SF32LB58x is a series of highly integrated, high-performance system-on-chip (SoC) MCU chips for ultra-low-power artificial intelligence of things (AIoT) applications. The processor in the chip can effectively balance the high computing performance required for human-machine interaction with the ultra-low operating and sleep power consumption required for long standby time. It can be widely used in various application scenarios such as wristband wearable electronic devices, smart mobile terminals, and smart home products.

This chip integrates a world-class low-power Bluetooth 5.3 transceiver, featuring high receive sensitivity, high transmit power, and low power consumption.

The chip provides abundant internal and external storage resources. The fully packaged chip has multiple QSPI memory interfaces and SD/eMMC interfaces. In addition, for different models, the chip’s internal SiP provides different-capacity combinations of NorFlash and PSRAM.

To better support display applications, the chip provides a comprehensive set of display interfaces, including MIPI-DSI, 3/4-wire SPI, Dual/Quad data SPI, DBI 8080, DPI, and parallel/serial JDI.

Schematic Design Guidelines

Power Supply

The SF32LB58x series chips integrate a PMU power unit and support two BUCK outputs, which require external inductors and capacitors before being routed back to the chip’s internal power inputs. There are also three internal LDO power supplies that require capacitors outside the chip. For SF32LB58x watch solution designs, SiFli Technology’s SF30147C PMIC chip can be connected externally to provide power not only to the SF32LB58x, but also to related peripherals.

SiFli PMIC chip power distribution

SF30147C is a highly integrated, high-efficiency, cost-effective power management chip for ultra-low-power wearable products. SF30147C integrates four LDOs, each with a wide input and output voltage range and capable of providing a maximum load current of 100 mA. For different peripherals, SF30147C integrates seven low-leakage, low on-resistance load switches: two high-voltage load switches, suitable for peripherals driven directly by the battery voltage, such as audio power amplifiers; and five low-voltage switches, suitable for peripherals powered by 1.8 V. SF32LB58x uses two GPIO interfaces to emulate TWI signals and control SF30147C. For the usage of each power output of SF30147C, see Table 2.1. For details about this chip, refer to the document DS0002-SF30147C-Chip Datasheet.

Table 2.1 SF30147C Power Supply Allocation Table

SF30147C Power Supply Pin	Minimum Voltage (V)	Maximum Voltage (V)	Maximum Current (mA)	Detailed Description
VBUCK	1.8	1.8	500	1.8 V Power Supply for SF32LB58x PVDD1, PVDD2, VDDIOA, VDDIOA2, VDDIOB, AVDD_BRF, AVDD18_DSI, etc.
LVSW1	1.8	1.8	100	I2S Class-K PA logic power supply
LVSW2	1.8	1.8	100	G-SENSOR 1.8V power supply
LVSW3	1.8	1.8	150	Heart rate 1.8V power supply
LVSW4	1.8	1.8	150	LCD 1.8V power supply
LVSW5	1.8	1.8	150	EMMC CORE power supply
LDO1	2.8	3.3	100	SF32LB58x AVDD33_USB, AVDD33_ANA, AVDD33_AUD, AVDDIOA2, etc. 3.3V Power Supply
LDO2	2.8	3.3	100	EMMC or SD NAND power supply
LDO3	2.8	3.3	100	LCD 3.3V power supply
LDO4	2.8	3.3	100	Heart rate 3.3V power supply
HVSW1	2.8	5	150	Analog Class-K PA power supply
HVSW2	2.8	5	150	GPS power supply

SF32LB58x Power Supply Requirements

The specifications of the PMU power supplies integrated in the SF32LB58x series chips are shown in Table 2.2.

Table 2.2 PMU Power Supply Specifications

PMU Power Supply Pins	Minimum Voltage (V)	Typical Voltage (V)	Maximum Voltage (V)	Maximum Current (mA)	Detailed Description
PVDD1	1.71	1.8	3.6	100	PVDD1 Power Supply input
PVDD2	1.71	1.8	3.6	50	PVDD2 Power Supply input
BUCK1_LX BUCK1_FB	-	1.25	-	100	BUCK1_LX output, connected to internal Power Supply input 1 of the inductor, connected to the other end of the inductor, and connected to an external capacitor
BUCK2_LX BUCK2_FB	-	0.9	-	50	BUCK2_LX output, connected to internal Power Supply input 2 of the inductor, connected to the other end of the inductor, and connected to an external capacitor
LDO_VOUT1	-	1.1	-	100	LDO output, connected to an external capacitor
VDD_RET	-	0.9	-	1	RET LDO output, connect an external capacitor
VDD_RTC	-	1.1	-	1	RTC LDO output, connect an external capacitor
MIC_BIAS	1.4	-	2.8	-	MIC Power Supply output

The specifications of other power supplies requiring external power for the SF32LB58x series chips are shown in Table 2.3.

Table 2.3 Other Power Supply Specifications

Other Power Supply Pins	Minimum Voltage (V)	Typical Voltage (V)	Maximum Voltage (V)	Maximum Current (mA)	Detailed Description
AVDD_BRF	1.71	1.8	3.3	1	RF Power Supply input
AVDD18_DSI	1.71	1.8	2.5	20	MIPI DSI Power Supply input; leave floating if unused
AVDD33_ANA	3.15	3.3	3.45	50	Analog Power Supply + RFPA Power Supply input
AVDD33_AUD	3.15	3.3	3.45	50	Analog audio Power Supply input
AVDD33_USB	3.15	3.3	3.45	50	USB Power Supply input
VDDIOA	1.71	1.8	3.45	-	PA12-PA93 I/O Power Supply input
VDDIOA2	1.71	1.8	3.45	-	PA0-PA11 I/O Power Supply input
VDDIOB	1.71	1.8	3.45	-	PB I/O Power Supply input
VDDIOSA	1.71	1.8	1.98	-	SIPA Power Supply input
VDDIOSB	1.71	1.8	1.98	-	SIPB Power Supply input
VDDIOSC	1.71	1.8	1.98	-	SIPC Power Supply input
GPADC_VREFP	-	-	-	-	GPADC reference voltage input; connect only an external capacitor, no external power supply required
AUD_VREF	-	-	-	-	Audio reference voltage input; connect only an external capacitor, no external power supply required

The recommended values for external capacitors on the power pins of the SF32LB58x series chips are shown in Table 2.4.

Table 2.4 Recommended Capacitor Values

Power Supply pin	Capacitor	Detailed description
PVDD1	0.1uF + 10uF	Place at least two capacitors, 10uF and 0.1uF, close to the pin.
PVDD2	0.1uF + 10uF	Place at least two capacitors, 10uF and 0.1uF, close to the pin.
BUCK1_LX BUCK1_FB	0.1uF + 4.7uF	Place at least two capacitors, 4.7uF and 0.1uF, close to the pin.
BUCK2_LX BUCK2_FB	0.1uF + 4.7uF	Place at least two capacitors, 4.7uF and 0.1uF, close to the pin.
LDO_VOUT1	4.7uF	Place at least one 4.7uF capacitor close to the pin.
VDD_RET	0.47uF	Place at least one 0.47uF capacitor close to the pin.
VDD_RTC	0.1uF	Place at least one 0.1uF capacitor close to the pin.
AVDD_BRF	1uF	Place at least one 1uF capacitor close to the pin.
AVDD18_DSI	4.7uF	Place at least one 4.7uF capacitor close to the pin.
AVDD33_ANA	1uF	Place at least one 1uF capacitor close to the pin.
AVDD33_AUD	4.7uF	Place at least one 4.7uF capacitor close to the pin.
AVDD33_USB	1uF	Place at least one 1uF capacitor close to the pin.
MIC_BIAS	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOA	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOA2	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOB	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOSA	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOSB	1uF	Place at least one 1uF capacitor close to the pin.
VDDIOSC	1uF	Place at least one 1uF capacitor close to the pin.

Power-On Sequence and Reset

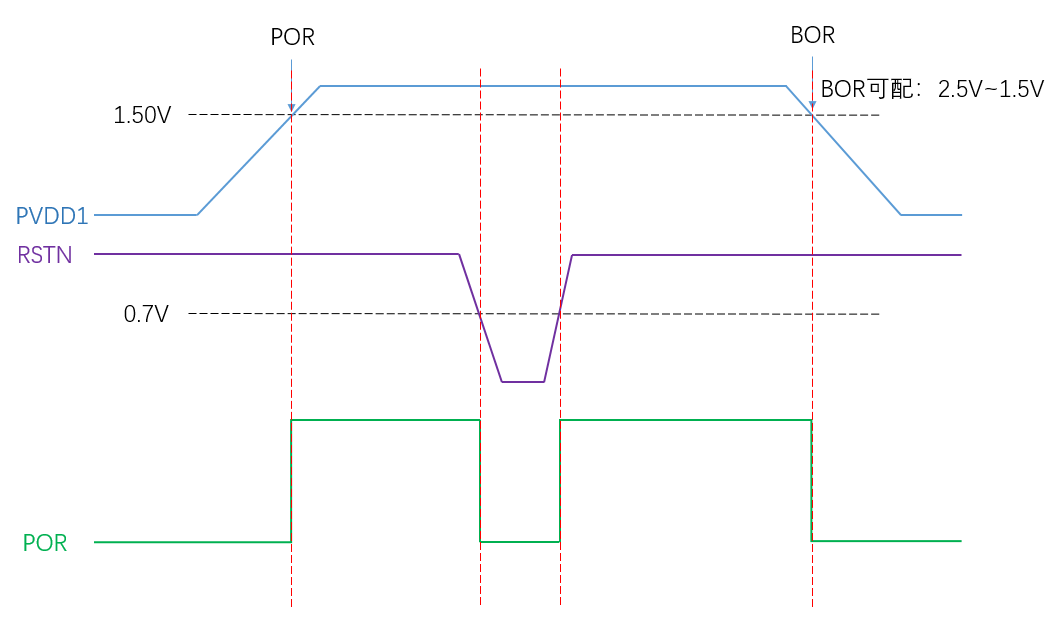

The SF32LB58x series chips include internal POR (Power-on Reset) and BOR (Brownout Reset) functions, and also support an external hardware reset signal RSTN. The specific requirements are shown in Figure 2.1.

Figure 2.1 Power-On/Power-Off Timing Diagram

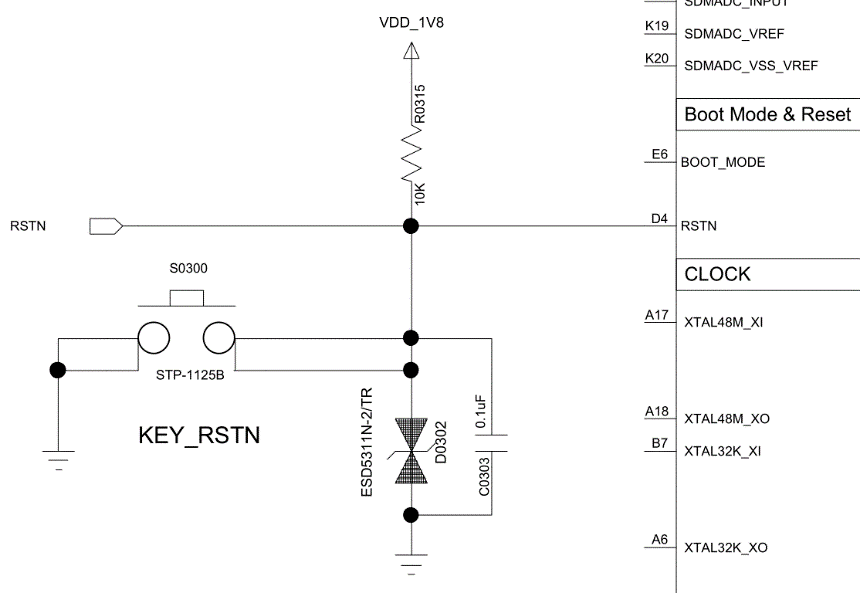

The RSTN reset signal of the SF32LB58x series chips must be pulled up to the PVDD1 input voltage domain and connected to ground through a 0.1 uF capacitor to implement an RC delayed reset, as shown in Figure 2.2.

Figure 2.2 Reset Circuit Diagram

Typical Power Supply Circuit

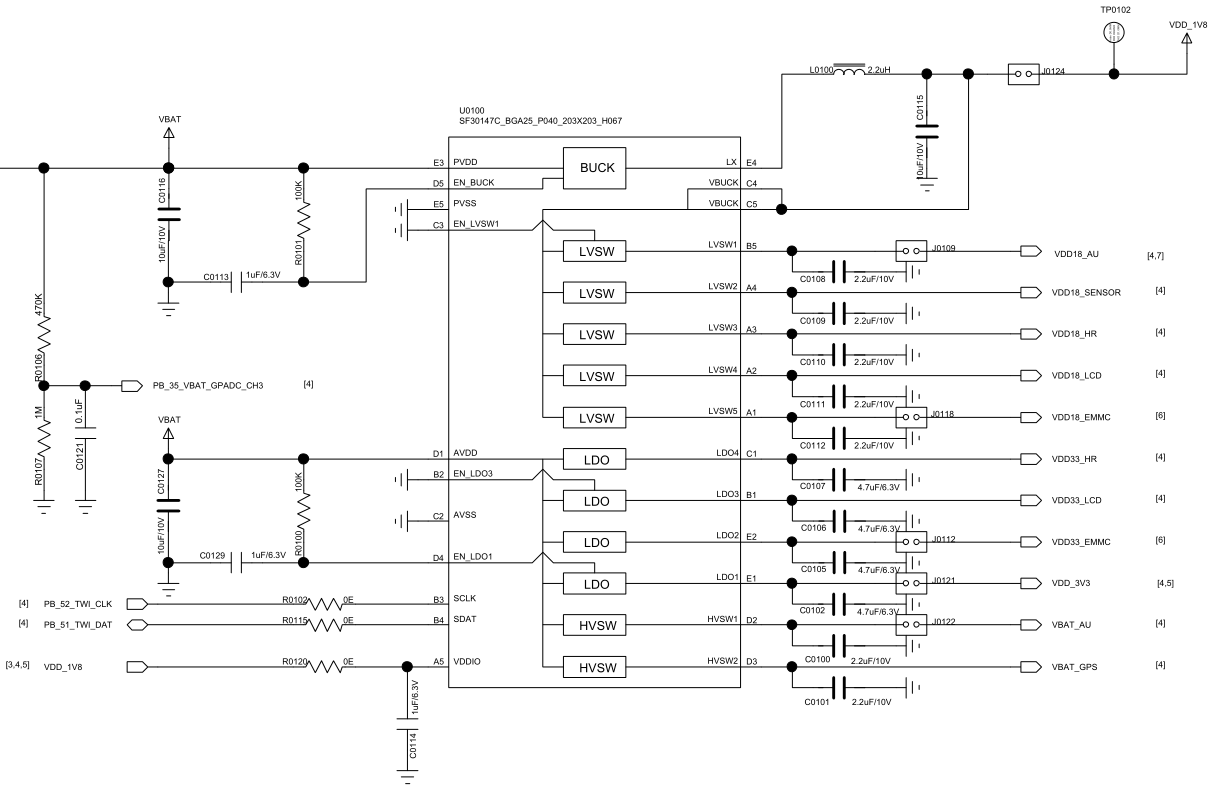

The SF32LB58x series chips can use SiFli Technology’s PMIC SF30147C to supply various power rails. The outputs are shown in Figure 2.3. For specific usage, see Table 2.1.

Figure 2.3 SF30147C Power Supply Diagram

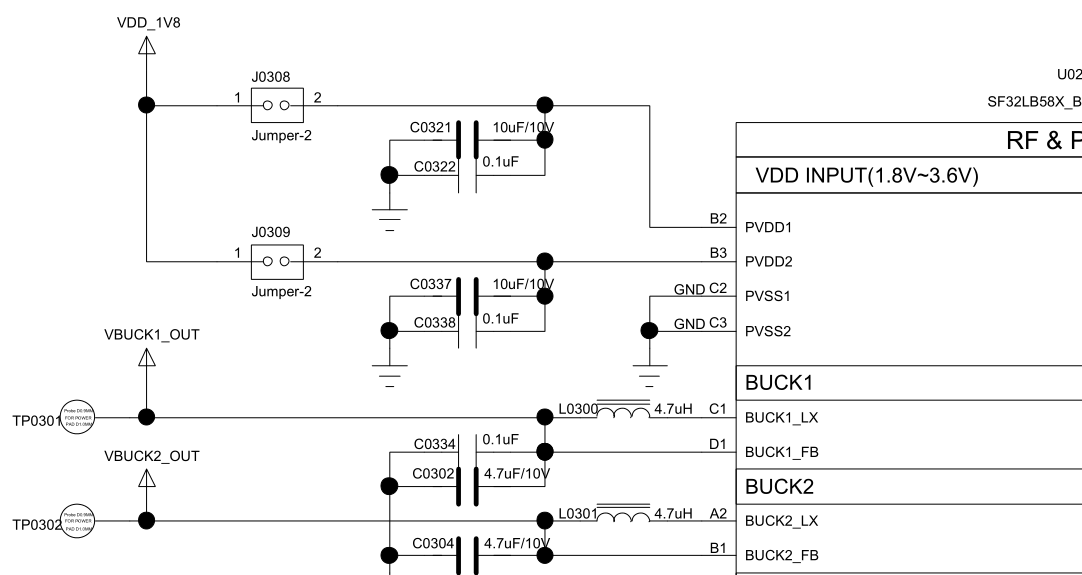

The SF32LB58x series chips have two BUCK outputs built into the package, as shown in Figure 2.4.

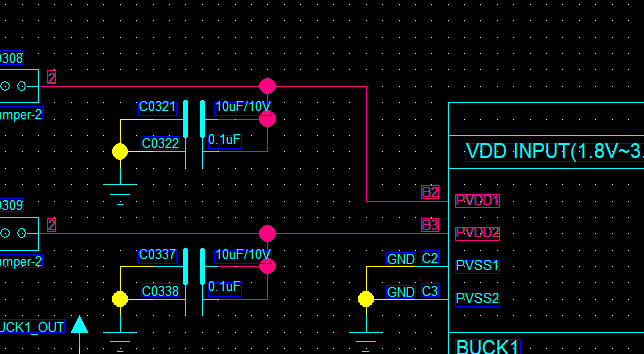

Figure 2.4 Built-in DCDC Circuit Diagram

BUCK Inductor Selection Requirements

Important

Key Parameters of the Power Inductor

L (inductance) = 4.7 uH, DCR (DC resistance) ≦ 0.4 ohm, Isat (saturation current) ≧ 500 mA

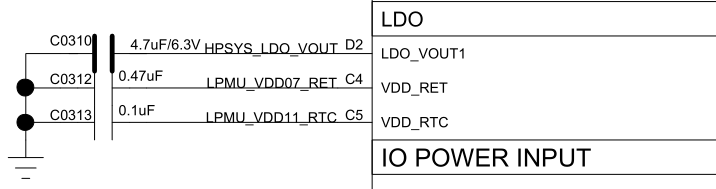

The SF32LB58x series chip package integrates three LDO outputs, as shown in Figure 2.5.

Figure 2.5 Built-in LDO Circuit Diagram

Boot Mode

The SF32LB58x series chips provide a Mode pin for configuring the boot mode, as shown in Table 2.5.

Table 2.5 Mode Description

Mode configuration	Detailed description
High	After the chip powers on and starts up, it enters download mode
Low	After the chip powers on and starts up, it jumps to the user program area to start

Note

Notes:

1. The voltage domain of Mode is the same as that of VDDIOA;

2. Mode must be connected externally through a 10K resistor to the power supply or GND to keep the level stable. It must not be left floating or be subject to toggle interference;

3. A test point must be reserved for the Mode pin on mass-production boards. It is used for program flashing or crystal calibration; a jumper does not need to be reserved;

4. It is recommended to reserve a jumper for the Mode pin on test boards, so that after a program crash, the board can be booted from download mode to download the program.

Clock

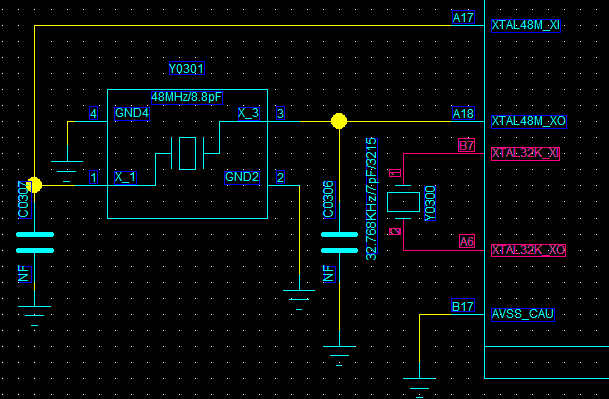

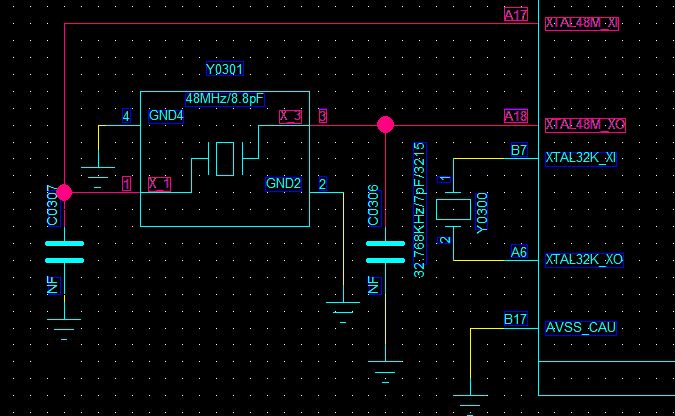

The SF32LB58x series chip requires two externally supplied clock sources: a 48 MHz main crystal and a 32.768 kHz RTC crystal. The specific requirements are shown in Table 2.6.

Table 2.6 Crystal Specification Requirements

Crystal	Crystal specification requirements	Detailed description
48MHz	7pF≦CL≦12pF (recommended value 8.8pF) △F/F0≦±10ppm ESR≦30 ohms (recommended value 22ohms)	Crystal oscillator power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use components with relatively smaller CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12pF, no capacitors need to be mounted
32.768KHz	CL≦12.5pF (recommended value 7pF) △F/F0≦±20ppm ESR≦80k ohms (recommended value 38Kohms)	Crystal power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power consumption performance, it is recommended to use components with relatively small CL and ESR values within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12.5pF, no capacitor needs to be soldered

Crystal Recommendation

Table 2.7 Certified Crystal Models

Model	Manufacturer	Parameters
E1SB48E001G00E	Hosonic	F0 = 48.000000MHz, △F/F0 = -6 ~ 8 ppm, CL = 8.8 pF, ESR = 22 ohms Max TOPR = -30 ~ 85℃, Package = (2016 metric)
ETST00327000LE	Hosonic	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)
SX20Y048000B31T-8.8	TKD	F0 = 48.000000MHz, △F/F0 = -10 ~ 10 ppm, CL = 8.8 pF, ESR = 40 ohms Max TOPR = -20 ~ 75℃, Package = (2016 metric)
SF32K32768D71T01	TKD	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)

Note

The ESR of the SX20Y048000B31T-8.8 is slightly higher, and its static power consumption will also be slightly higher.

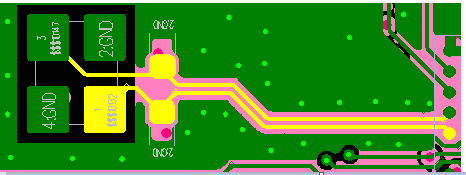

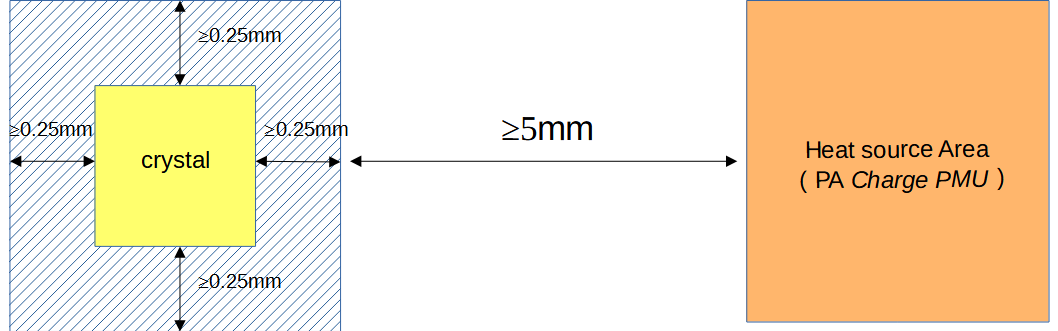

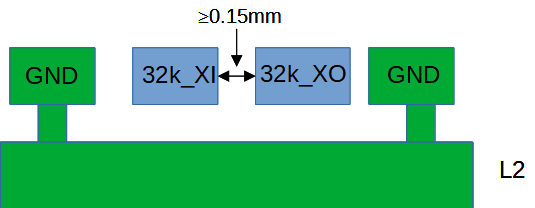

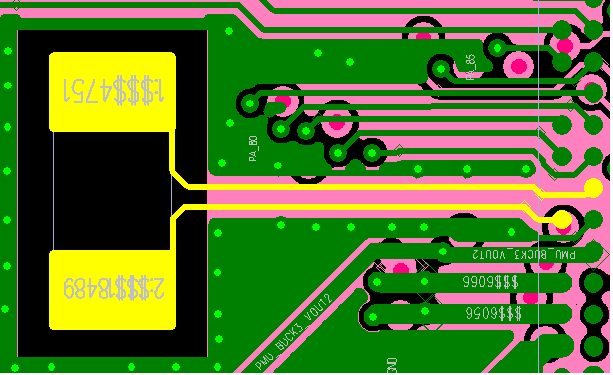

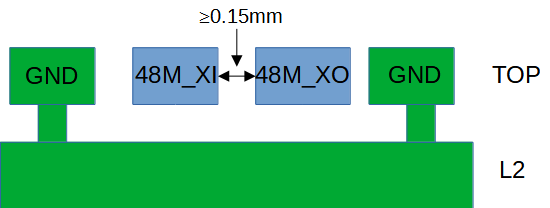

When routing the PCB, remove at least the second-layer GND copper under the crystal to reduce the parasitic load capacitance on the clock signal.

For detailed material certification information, refer to: SIFLI-MCU-AVL Certification List

RF

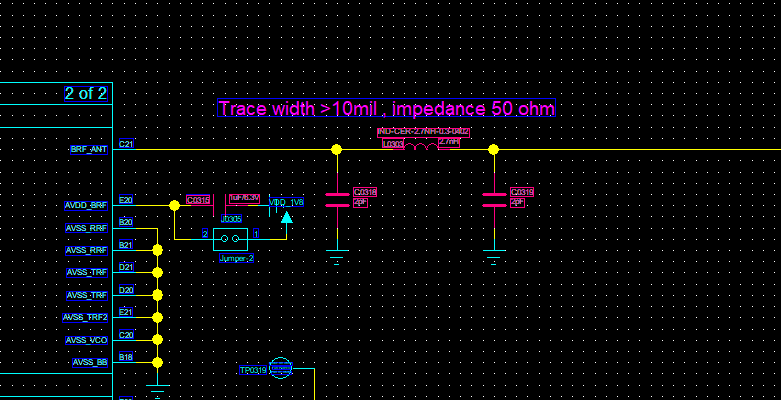

The RF section of the SF32LB58x series chip uses on-chip integrated broadband matching filter technology, so it is only necessary to ensure that the RF PCB trace has a 50-ohm characteristic impedance. During design, it is recommended to reserve a π-type matching network for spurious filtering and antenna matching. Refer to the circuit shown in Figure 2.6.

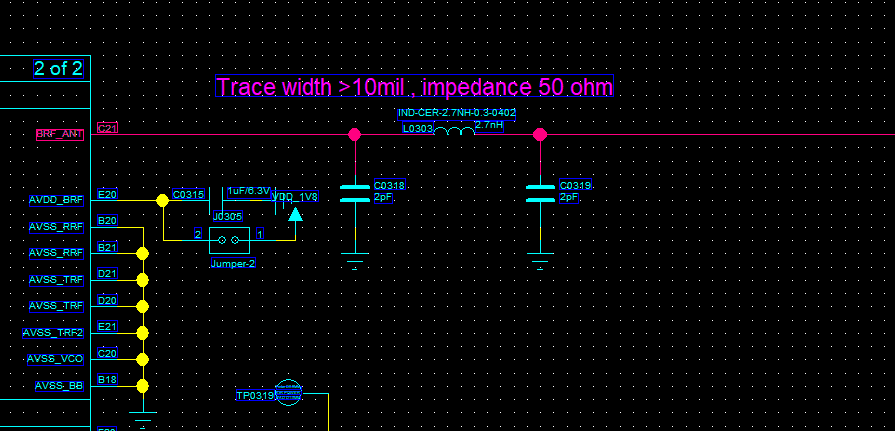

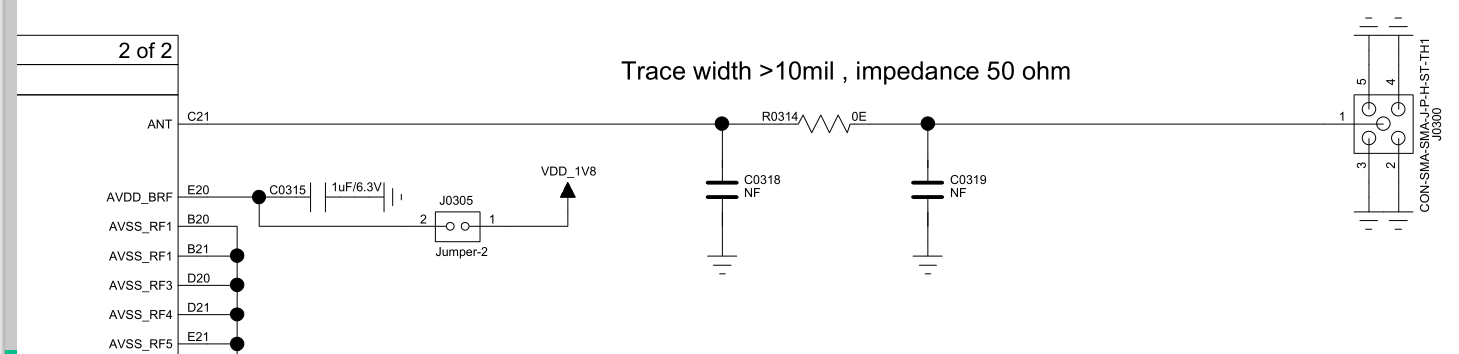

Figure 2.6 RF Schematic

Note

Note:

The component values of the matching network must be determined through testing based on the actual antenna and PCB layout.

External Memory Interface

The SF32LB58x series chip supports connecting external NOR FLASH and SPI NAND FLASH through the MPI3 or MPI4 interface, and connecting external SD NAND and EMMC through the SD1 interface.

QSPI NAND Flash Interface

The EVB validation board for the SF32LB58x series chip uses the ‘MPI4’ interface by default to connect to an external SPI NAND Flash device. For the signals used, see Table 2.8; for the specific circuit, refer to Figure 2.7.

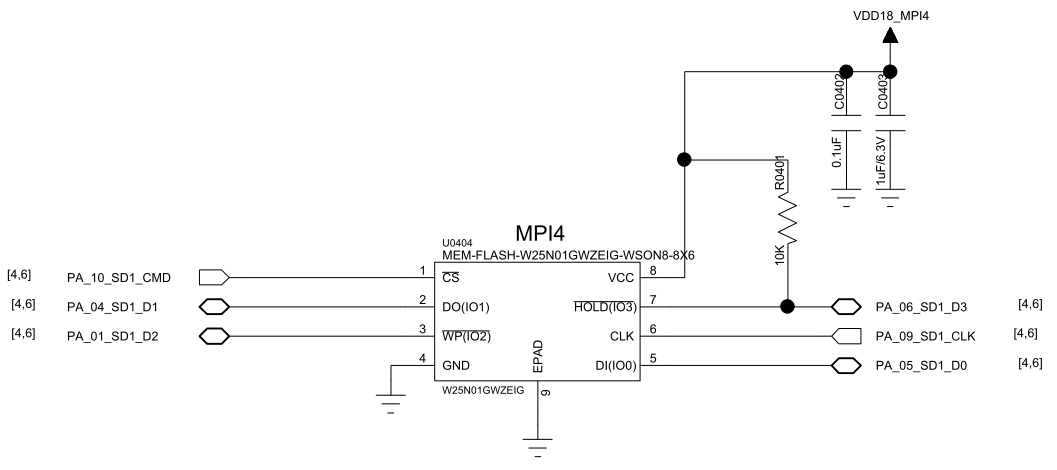

Figure 2.7 SPI NAND Flash Connection Reference Circuit

Table 2.8 MPI4 Signal Connections

Flash Signal	I/O Signal (MPI4)	Detailed Description
CS#	PA10	Chip select, active low.
SO	PA04	Data Input (Data Input Output 1)
WP#	PA01	Write Protect Output (Data Input Output 2)
SI	PA05	Data Output (Data Input Output 0)
SCLK	PA09	Serial Clock Output
Hold#	PA06	Data Output (Data Input Output 3)

Note

Note:

1. If the production line needs to flash a program to the external FLASH, set the external FLASH power control pin PA43 high in the download tool software to turn on the external FLASH power.

2. The Hold# pin of the SPI NAND Flash must be pulled up to the SPI NAND Flash power supply through a 10K resistor.

SDIO eMMC/Micro SD Interface

The SF32LB58x series chip supports two SDIO interfaces. On the EVB board, SD1 is connected to EMMC or SD NAND by default, and SD2 is connected to an SD card or WIFI chip. Refer to the circuits shown in Figures 2.8, 2.9, and 2.10.

The SD1 interface uses a total of 12 GPIOs, PA00–PA11. Their power domain is VDDIOA2, which supports 1.8 V and 3.3 V power supplies, and the input voltage can be set according to the interface level of the peripheral. It is recommended that SPI NAND FLASH and EMMC use a 1.8 V interface level. Since SD NAND FLASH dies support only a 3.3 V interface level, VDDIOA2 must be connected to 3.3 V.

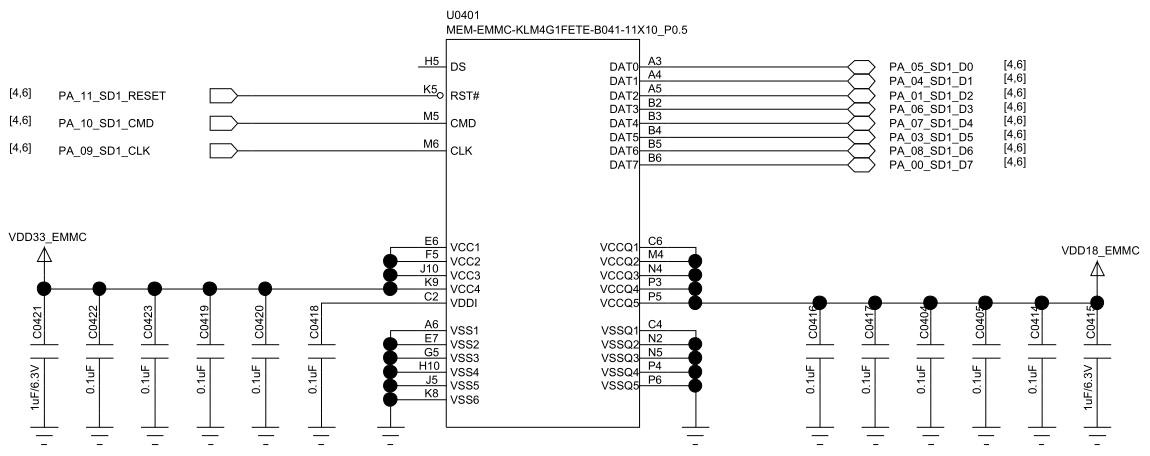

Figure 2.8 EMMC Connection Reference Circuit

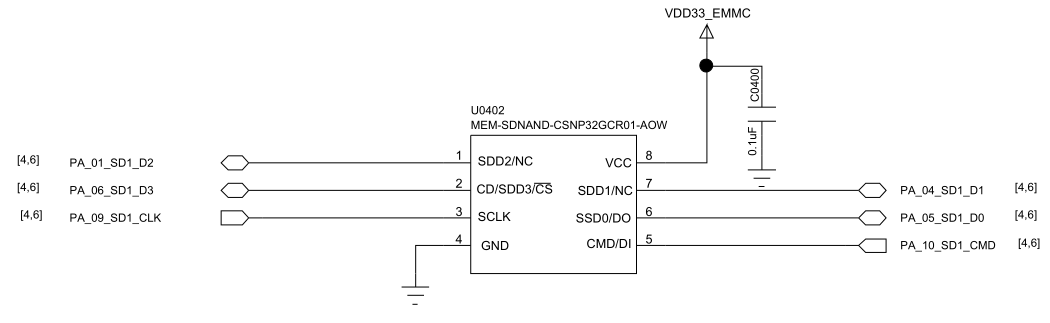

Figure 2.9 SD NAND Connection Reference Circuit

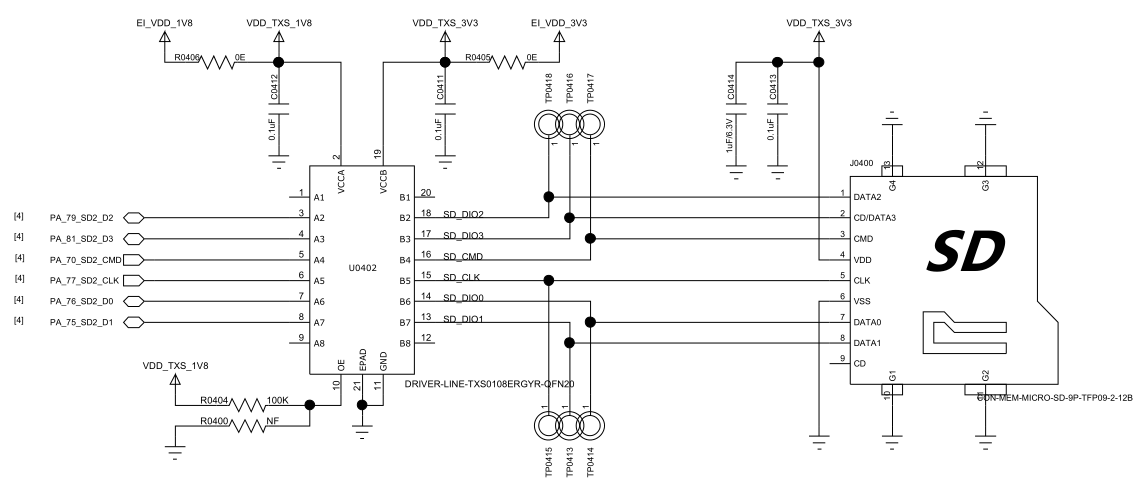

Figure 2.10 SD Card Connection Reference Circuit

The SD1 and SD2 signal connections of the SF32LB58x series chip are shown in Tables 2.9 and 2.10.

Table 2.9 SD1 Signal Connections

SD1 Signal	I/O Signal	Detailed Description
SD1_D7	PA00	Data 7
SD1_D2	PA01	Data 6
SD1_D5	PA03	Data 5
SD1_D1	PA04	Data 1
SD1_D0	PA05	Data 0
SD1_D3	PA06	Data 3
SD1_D4	PA07	Data 4
SD1_D6	PA08	Data 6
SD1_CLK	PA09	Clock Signal
SD1_CMD	PA10	Command Signal

Table 2.10 SD2 Signal Connections

SD2 Signal	I/O Signal	Detailed Description
SD2_CMD	PA70	Command Signal
SD2_D1	PA75	Data 1
SD2_D0	PA76	Data 0
SD2_CLK	PA77	Clock Signal
SD2_D2	PA79	Data 2
SD2_D3	PA81	Data 3

Display

MIPI DSI Display Interface

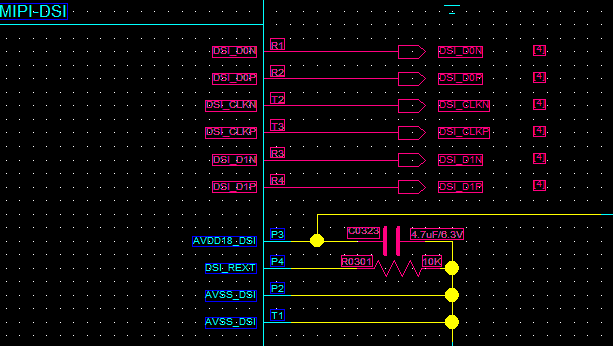

The SF32LB58x series chip supports a 2-lane MIPI DSI display interface, as shown in Table 2.11.

Table 2.11 MIPI-DSI Signal Connections

MIPI DSI signal	I/O	Description
CLKP	DSI_CLKP	MIPI Clock Signal+
CLKN	DSI_CLKN	MIPI Clock Signal-
D0P	DSI_D0P	MIPI Data Lane 0+
D0N	DSI_D0N	MIPI Data Lane 0-
D1P	DSI_D1P	MIPI Data Lane 1+
D1N	DSI_D1N	MIPI Data Lane 1-
-	AVDD18_DSI	MIPI Power Supply Input
-	DSI_REXT	Connect an external 10K resistor to ground
-	AVSS_DSI	Ground
TE	PB2	Tearing effect to MCU frame signal
RESET	PB5	Display panel reset signal

SPI/QSPI Display Interface

The SF32LB58x series chip supports 3/4-wire SPI and Quad-SPI interfaces for connecting LCD displays. The large core uses LCDC1 on PA, and the small core uses LCDC2 on PB, as shown in Table 2.12.

Table 2.12 SPI/QSPI Signal Connection Methods

SPI Signal	I/O (LCDC1)	I/O (LCDC2)	Detailed Description
CSX	PA44	PB08	Enable signal
WRX_SCL	PA46	PB10	Clock Signal
DCX	PA48	PB03	Data/command signal in 4-wire SPI mode; data 1 in Quad-SPI mode
SDI_RDX	PA50	PB09	Data input signal in 3/4-wire SPI mode; data 0 in Quad-SPI mode
SDO	PA50	PB09	Data output signal in 3/4-wire SPI mode; short it to SDI_RDX
D[0]	PA47	PB04	Data 2 in Quad-SPI mode
D[1]	PA45	PB06	Data 3 in Quad-SPI mode
REST	PA74	PB05	Display panel reset signal
TE	PA43	PB02	Tearing effect to MCU frame signal

MCU8080 Display Interface

The SF32LB58x series chip supports an MCU8080 interface for connecting LCD displays, as shown in Table 2.13.

Table 2.13 MCU8080 Display Signal Connection Methods

MCU8080 Signal	I/O	Detailed Description
CSX	PA44	Chip select
WRX	PA46	Writes strobe signal to write data
DCX	PA48	Display data / command selection
RDX	PA50	Reads strobe signal to write data
D[0]	PA47	Data 0
D[1]	PA45	Data 1
D[2]	PA26	Data 2
D[3]	PA27	Data 3
D[4]	PA42	Data 4
D[5]	PA51	Data 5
D[6]	PA52	Data 6
D[7]	PA58	Data 7
REST	PA24	Reset
TE	PA43	Tearing effect to MCU frame signal

DPI Display Interface

The SF32LB58x series chip supports a DPI interface for connecting LCD displays, as shown in Table 2.14.

Table 2.14 DPI Display Signal Connection Methods

DPI Signal	I/O	Detailed Description
CLK	PA12	Clock Signal
DE	PA13	Data enable signal
HSYNC	PA14	Horizontal sync signal
VSYNC	PA15	Vertical sync signal
SD	PA18	Controls Display shutdown
CM	PA19	Switches between Normal Color and Reduce Color Mode
R0	PA22	Pixel signal
R1	PA23	Pixel signal
R2	PA24	Pixel signal
R3	PA25	Pixel signal
R4	PA26	Pixel signal
R5	PA27	Pixel signal
R6	PA43	Pixel signal
R7	PA44	Pixel signal
G0	PA45	Pixel signal
G1	PA46	Pixel signal
G2	PA47	Pixel signal
G3	PA48	Pixel signal
G4	PA50	Pixel signal
G5	PA53	Pixel signal
G6	PA54	Pixel signal
G7	PA55	Pixel signal
B0	PA56	Pixel signal
B1	PA57	Pixel signal
B2	PA58	Pixel signal
B3	PA61	Pixel signal
B4	PA62	Pixel signal
B5	PA63	Pixel signal
B6	PA65	Pixel signal
B7	PA67	Pixel signal

JDI Display Interface

The SF32LB58x series chip supports parallel and serial JDI interfaces for connecting LCD displays, and supports multiplexing the corresponding signals to LCDC1 on PA or LCDC2 on PB. LCDC2 on the PB interface is recommended, as shown in Tables 2.15 and 2.16.

Table 2.15 Parallel JDI Display Signal Connection Methods

JDI Signal	I/O (LCDC1)	I/O (LCDC2)	Detailed Description
JDI_VCK	PA19	PB15	Shift clock for the vertical driver
JDI_VST	PA22	PB19	Start signal for the vertical driver
JDI_XRST	PA25	PB16	Reset signal for the horizontal and vertical driver
JDI_HCK	PA43	PB05	Shift clock for the horizontal driver
JDI_HST	PA44	PB10	Start signal for the horizontal driver
JDI_ENB	PA45	PB12	Write enable signal for the pixel memory
JDI_R1	PA46	PB09	Red image data (odd pixels)
JDI_R2	PA47	PB06	Red image data (even pixels)
JDI_G1	PA48	PB08	Green image data (odd pixels)
JDI_G2	PA50	PB04	Green image data (even pixels)
JDI_B1	PA65	PB02	Blue image data (odd pixels)
JDI_B2	PA67	PB03	Blue image data (even pixels)
JDI_XFRP	PBR1	PBR1	Liquid crystal driving signal (“On” pixel)
JDI_VCOM/FRP	PBR2	PBR2	Common electrode driving signal/ Liquid crystal driving signal (“Off” pixel)

Table 2.16 Serial JDI Display Signal Connection Methods

JDI Signal	I/O (LCDC1)	I/O (LCDC2)	Detailed Description
JDI_SCS	PA82	PB03	Chip Select Signal
JDI_SCLK	PA84	PB02	Serial Clock Signal
JDI_SO	PA86	PB06	Serial Data Output Signal
JDI_DISP	PA90	PB04	Display ON/OFF Switching Signal
JDI_EXTCOMIN	PA91	PB05	COM Inversion Polarity Input

Touch and Backlight Interfaces

The SF32LB58x series chip supports an I2C-format touchscreen control interface and touchscreen status interrupt input. It also supports one PWM signal to control the enable and brightness of the backlight power chip, as shown in Table 2.17.

Table 2.17 Touch and Backlight Control Connection Methods

Touchscreen and Backlight Signals	I/O	Detailed Description
Interrupt	PA69	Touch status interrupt signal (wake-up capable)
I2C1_SCL	PA17	Clock signal for touchscreen I2C
I2C1_SDA	PA16	Data signal for touchscreen I2C
BL_PWM	PB44	Backlight PWM control signal
Reset	PA15	Touch reset signal
Power Enable	PA12	Touchscreen Power Supply enable signal

Debug and Flashing Interface

The SF32LB58x series chip supports the Arm® standard SWD debug interface and can be connected to EDA tools for single-step debugging. As shown in Figure 2.11, when connecting a SEEGER® J-Link® tool, the power supply of the debug tool must be changed to external interface input, with the J-Link tool powered by the SF32LB58x circuit board.

SF32LB58x provides one SWD interface and six UART interfaces that can be selected for debug information output. For details, see Table 2.18.

Table 2.18 Debug Port Connection Methods

UART Signal	I/O	Detailed Description
TXD1	PA31	RXD signal of UART1, HCPU default print port
RXD1	PA32	TXD signal of UART1, HCPU default print port
TXD2	PA28	RXD signal of UART2
RXD2	PA29	TXD signal of UART2
TXD3	PA21	RXD signal of UART3
RXD3	PA20	TXD signal of UART3
TXD4	PB37	RXD signal of UART4, LCPU default print port
RXD4	PB36	TXD signal of UART4, LCPU default print port
TXD5	PB18	RXD signal of UART5
RXD5	PB17	TXD signal of UART5
TXD6	PB14	RXD signal of UART6
RXD6	PB13	TXD signal of UART6
SWCLK	PB07	JLINK Clock signal
SWDIO	PB11	JLINK data signal

Note

Note

The RXD signal of UARTx must not be left floating. Configure it as an internal pull-up during software initialization.

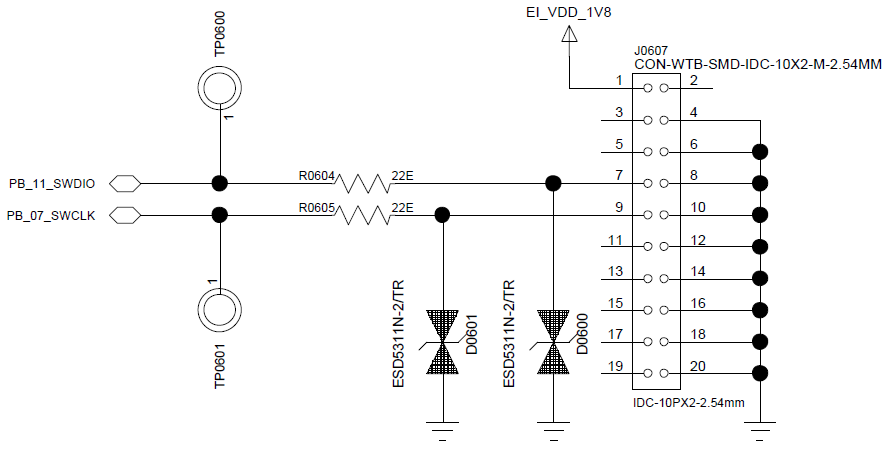

Figure 2.11 SWD Debug Interface Schematic

Button Interface

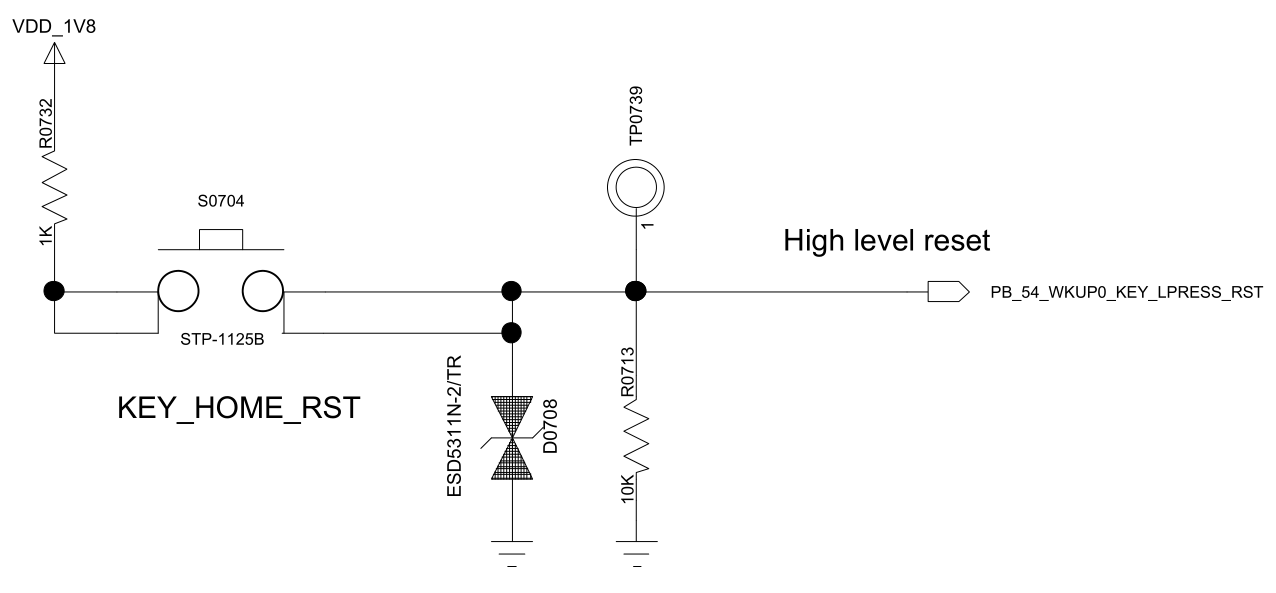

Power On/Off and Long-Press Reset Button

For the power on/off signal of the SF32LB58x series chip, PB54 is recommended. This allows the short-press power on/off function and the long-press reset function to be combined on one button. As shown in Figure 2-12, the design uses an active-high method. For the long-press reset function, the chip automatically resets after the button is held for more than 10s.

Figure 2.12 Power On/Off Button Circuit Diagram

Function Button or Rotary Encoder

The SF32LB58x series chip supports function button inputs and rotary encoder signal inputs. The button or rotary encoder signal must be pulled up. The button usage is shown in Figure 2.13. Optical tracking sensors are also supported; the I2C4 interface is recommended. The signal connections are shown in Table 2.19.

Table 2.19 Optical Tracking Sensor Signals

I2C Signal	I/O	Detailed Description
INT	PA58	Light tracking sensor interrupt signal input
SDA	PA59	Light tracking sensor I2C data signal
SCL	PA60	Light tracking sensor I2C Clock signal

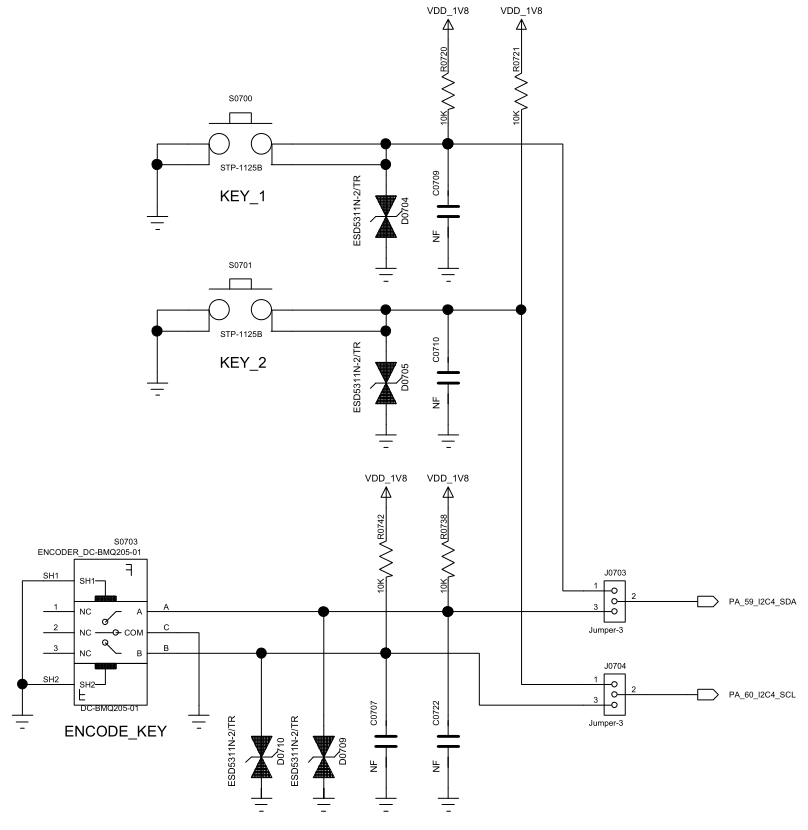

Figure 2.13 Function Button or Rotary Encoder Circuit Diagram

Vibration Motor Interface

The SF32LB58x series chip supports multiple PWM outputs, which can be used as drive signals for a vibration motor. Figure 2.14 shows the recommended circuit.

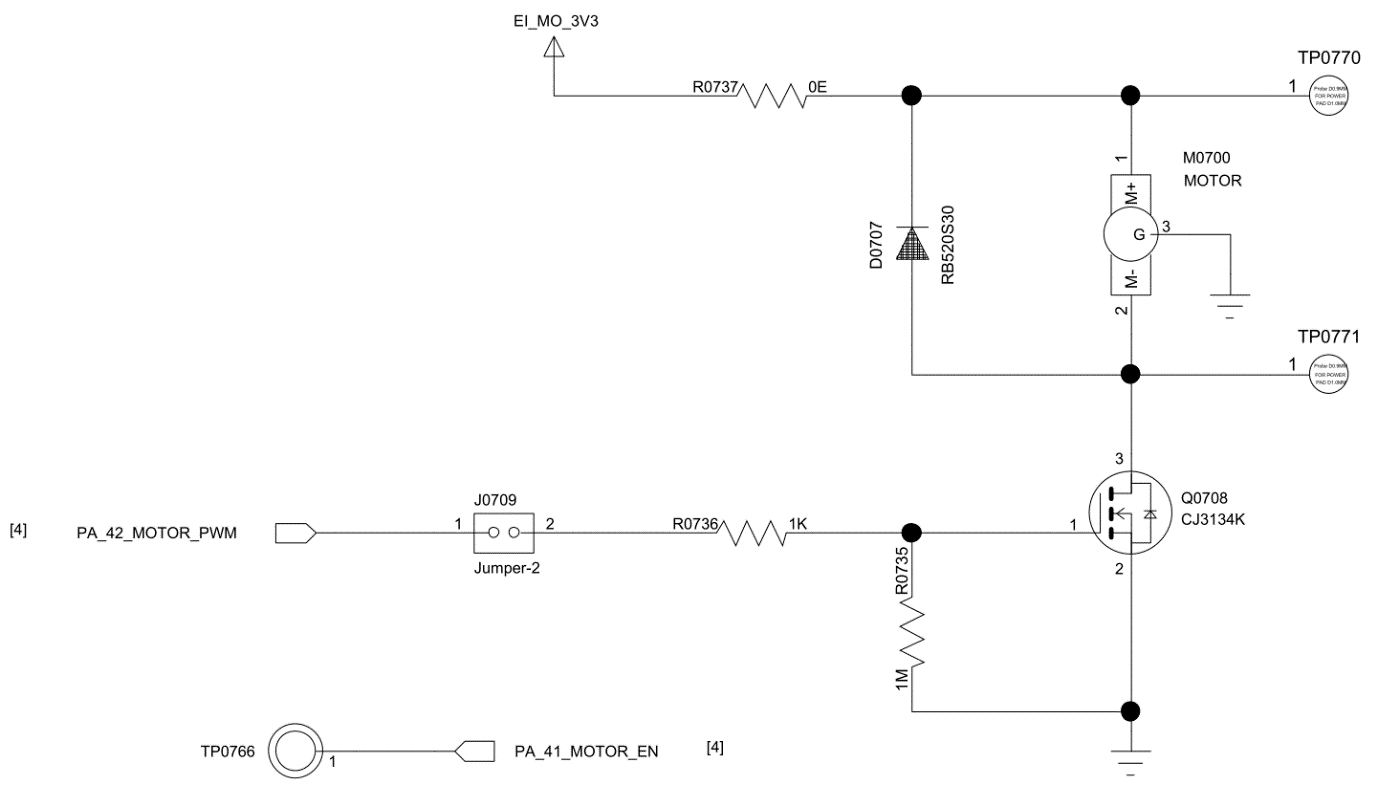

Figure 2.14 Vibration Motor Circuit Diagram

Important

If the software enables the HCPU main-frequency reduction macro definition #define BSP PM FREQ SCALING 1, after the HCPU enters the idle thread, the main frequency will decrease, and the PWM frequency of the corresponding Hcpu PA port will also change, Therefore, it is recommended to use the PB interface to output the PWM signal.

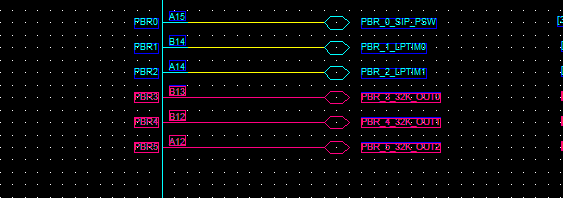

PBR Interface Description

The SF32LB58x series chip provides six PBR interfaces, with the following main features:

1. During power-on, PBR0 changes from 0 to 1 and can be used for certain external LSW control; PBR1-PBR5 output 0 by default;

2. PBR0-PBR5 can be used as outputs in both standby and hibernate;

3. PBR0-PBR5 can output LPTIM signals;

4. PBR0-PBR5 can output 32K clock signals;

5. PBR0-PBR3 can be configured as inputs for wake-up signal input. When the MCU is awake, no interrupt is received.

Wake-up Interrupt Sources

For the SF32LB58x series chip, all GPIOs support wake-up in light/deep sleep mode. In standby and Hibernate mode, 16 wake-up interrupt sources are supported, as shown in Table 2.20: 6 interrupt sources for PA and 10 interrupt sources for PB.

Table 2.20 Interrupt Source Connection Methods

Interrupt Source	I/O	Detailed Description
WKUP_PIN0	PB54	Interrupt signal 0
WKUP_PIN1	PB55	Interrupt signal 1
WKUP_PIN2	PB56	Interrupt signal 2
WKUP_PIN3	PB57	Interrupt signal 3
WKUP_PIN4	PB58	Interrupt signal 4
WKUP_PIN5	PB59	Interrupt signal 5
WKUP_PIN6	PA64	Interrupt signal 6
WKUP_PIN7	PA65	Interrupt signal 7
WKUP_PIN8	PA66	Interrupt signal 8
WKUP_PIN9	PA67	Interrupt signal 9
WKUP_PIN10	PA68	Interrupt signal 10
WKUP_PIN11	PA69	Interrupt signal 11
WKUP_PIN12	PBR0	Interrupt signal 12
WKUP_PIN13	PBR1	Interrupt signal 13
WKUP_PIN14	PBR2	Interrupt signal 14
WKUP_PIN15	PBR3	Interrupt signal 15

Audio Interface

The SF32LB58x series chip has various audio-related interfaces, as shown in Table 2.21. The audio interface signals have the following features:

1. Supports 3 sets of I2S. I2S1 can only be used for input, while I2S2 and I2S3 support both input and output. The 3 sets of I2S support only Master mode and do not support Slave mode;

2. I2S1 is recommended for connection to an I2S MIC input;

3. I2S2 is recommended for connection to an audio DAC;

4. I2S3 is recommended for connection to an audio codec;

5. Supports two PDM MIC inputs;

6. Supports two analog MIC inputs. A DC-blocking capacitor with a capacitance of at least 2.2 uF must be added in series, and the analog MIC power supply uses the SF32LB58x MIC_BIAS;

7. Supports an external analog audio PA. The traces for the two DAC outputs should both be routed as differential pairs with proper ground shielding. Also note: Trace Capacitance < 10 pF, Length < 2 cm.

8. Supports stereo analog headphone connection.

Table 2.21 Audio Signal Connection Methods

Audio Signal	I/O	Detailed Description
I2S1_LRCK	PA14	I2S1 frame Clock
I2S1_SDI	PA18	I2S1 data input
I2S1_BCK	PA23	I2S1 bit Clock
I2S2_LRCK	PA84	I2S2 frame Clock
I2S2_SDI	PA86	I2S2 data input
I2S2_SDO	PA82	I2S2 data output
I2S2_BCK	PA91	I2S2 bit Clock
I2S3_LRCK	PB31	I2S3 frame Clock
I2S3_SDI	PB27	I2S3 data input
I2S3_SDO	PB24	I2S3 data output
I2S3_BCK	PB30	I2S3 bit Clock
I2S3_MCLK	PB34	I2S3 master Clock
PDM1_CLK	PA23	PDM1Clock
PDM1_DATA	PA18	PDM1 data
PDM2_CLK	PA25	PDM2Clock
PDM2_DATA	PA22	PDM2 data
AU_ADC1P	ADC1P	analog input 1P
AU_ADC1N	ADC1N	analog input 1N
AU_ADC2P	ADC2P	analog input 2P
AU_ADC2N	ADC2N	analog input 2N
AU_DAC1P	DAC1P	analog output 1P
AU_DAC1N	DAC1N	analog output 1N
AU_DAC2P	DAC2P	analog output 2P
AU_DAC2N	DAC2N	analog output 2N

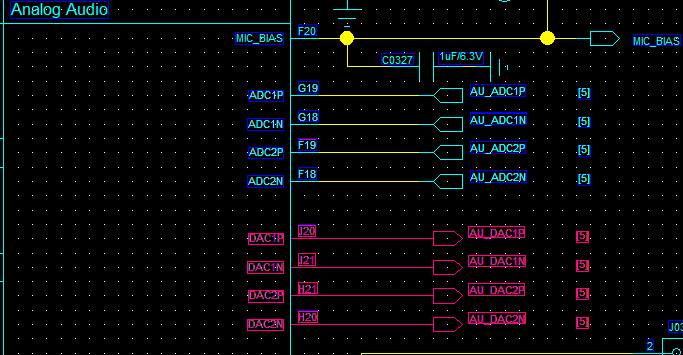

The SF32LB58x analog MIC supports single-ended and differential inputs, with a 2.2 uF capacitor connected in series in between. The differential input is shown in Figure 2.15, and the single-ended-to-differential input is shown in Figure 2.16. AU_ADC1P, AU_ADC1N, AU_ADC2P, and AU_ADC2N are connected to the SF32LB58x, and AU_ADC1P_IN and AU_ADC2P_IN are signals from the analog MIC or headphone audio input.

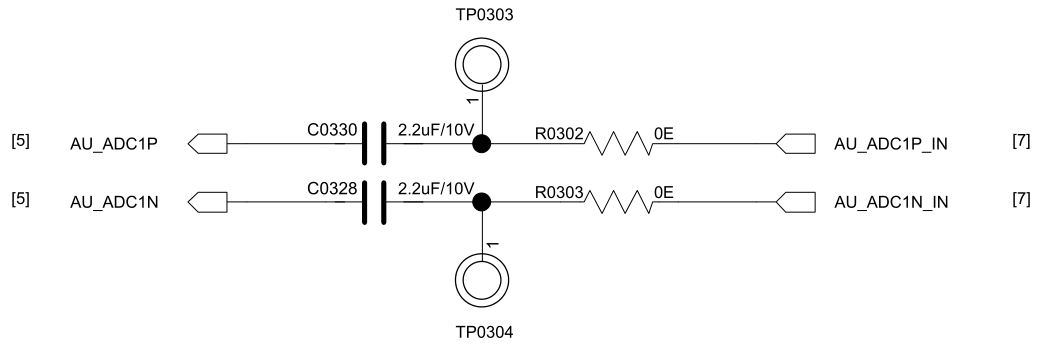

Figure 2.15 Differential Analog Audio Input Circuit Diagram

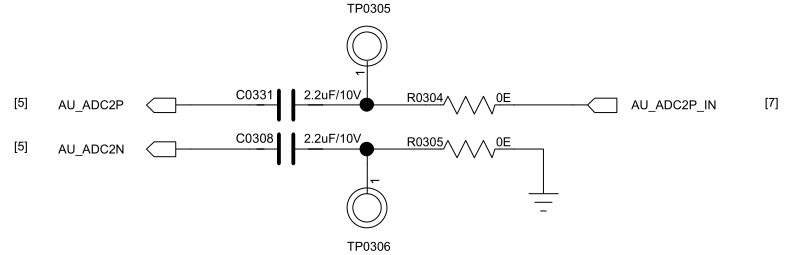

Figure 2.16 Single-Ended Analog Audio Input Circuit Diagram

The SF32LB58x analog audio output circuit diagram is shown in Figure 2.17. AU_DAC1P, AU_DAC1N, AU_DAC2P, and AU_DAC2N are SF32LB58x output signals; HP_DAC1P_OUT, HP_DAC1N_OUT, HP_DAC2P_OUT, and HP_DAC2N_OUT are connected to the stereo headphone PA input pins; and SPK_DAC1P_OUT and SPK_DAC1N_OUT are connected to the analog audio PA input pins.

Figure 2.17 Analog Audio Output Circuit Diagram

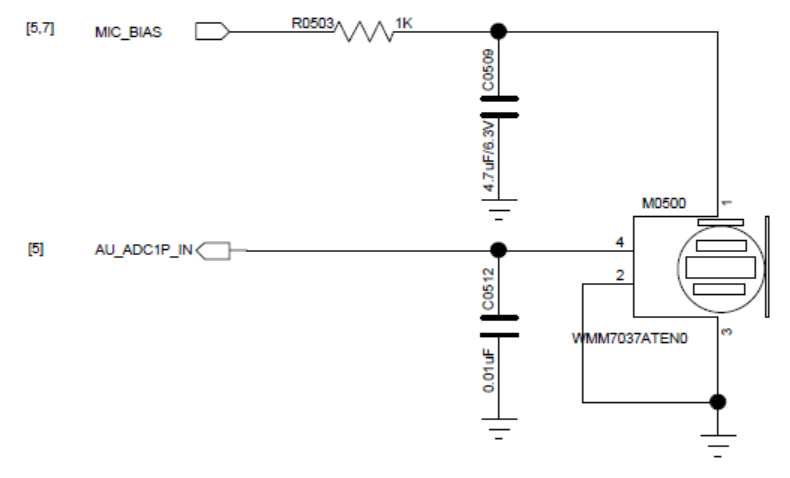

The circuit diagram for the analog MIC input connection is shown in Figure 2.18.

Figure 2.18 Analog MIC Circuit Diagram

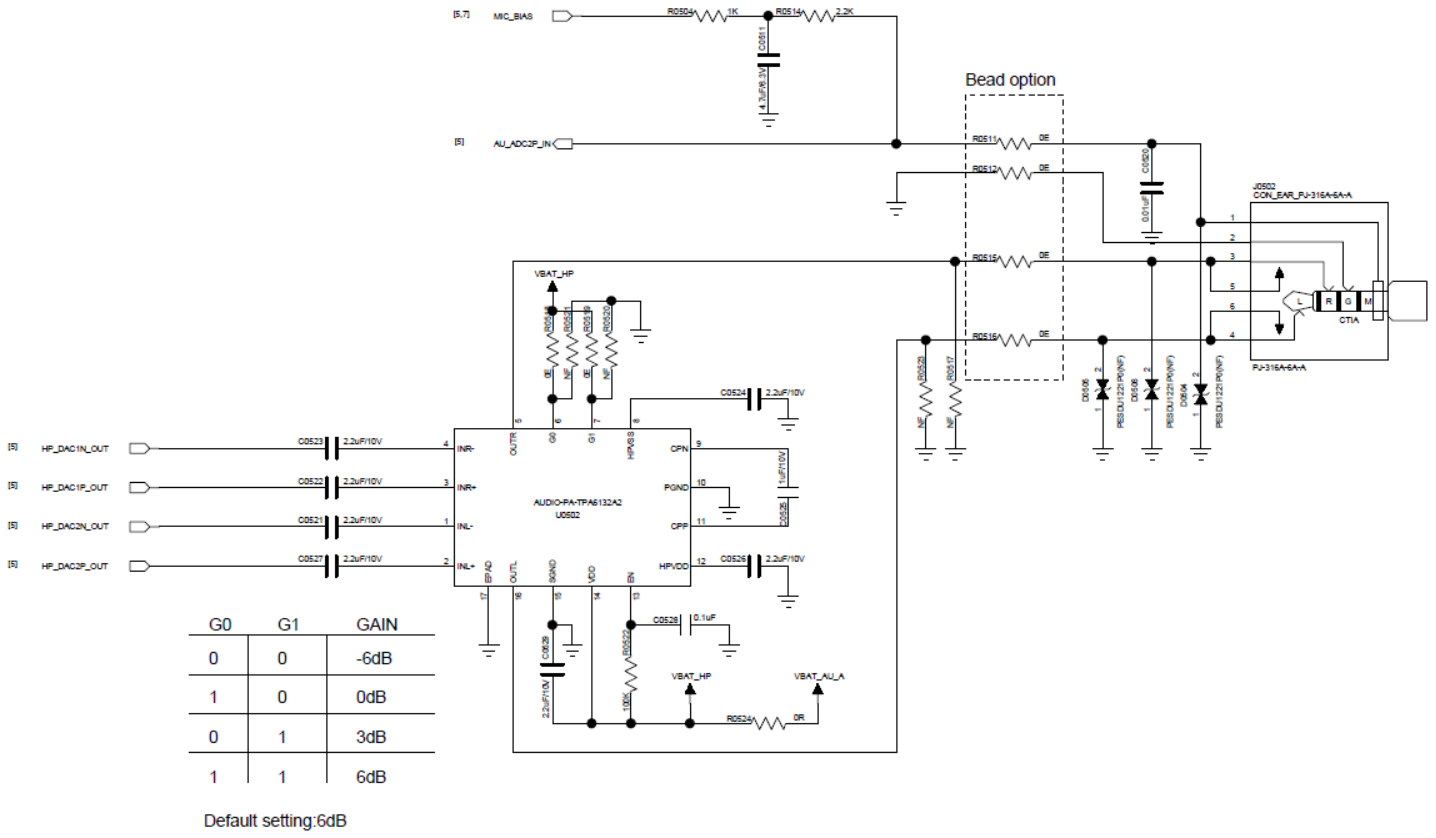

The stereo headphone connection circuit diagram is shown in Figure 2.19.

Figure 2.19 Stereo Headphone Circuit Diagram

The analog audio PA connection circuit diagram is shown in Figure 2.20. I2C3 is used to configure the registers of the analog audio PA.

Figure 2.20 Analog Audio PA Circuit Diagram

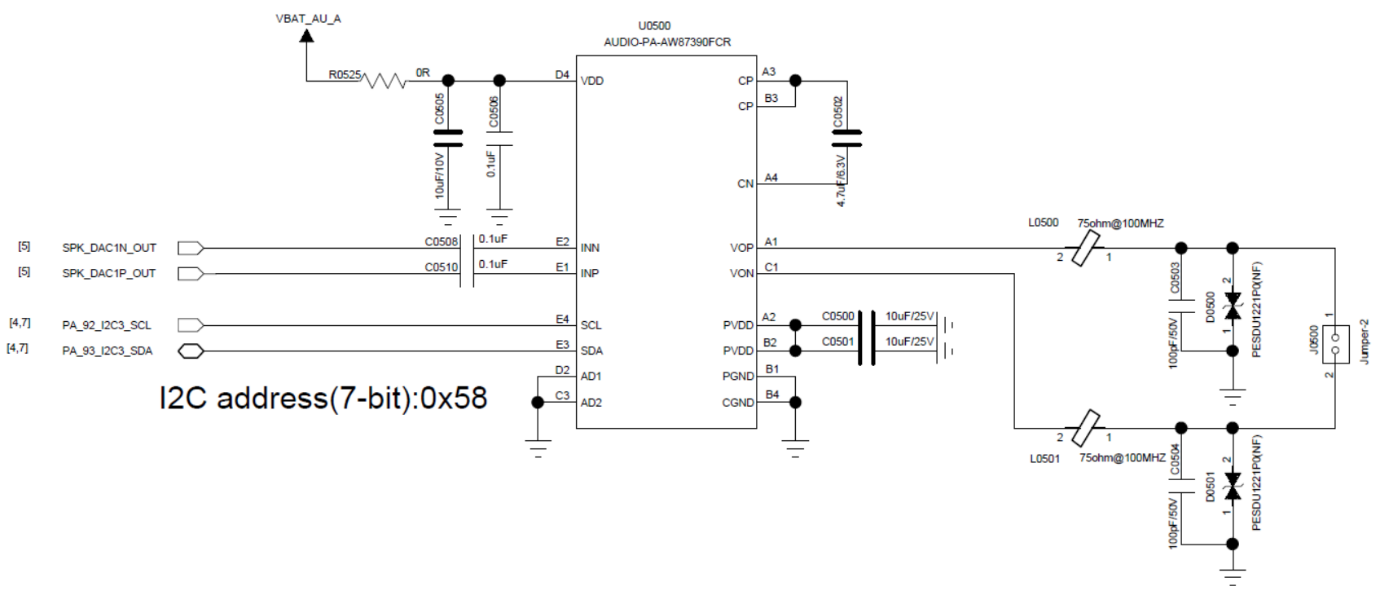

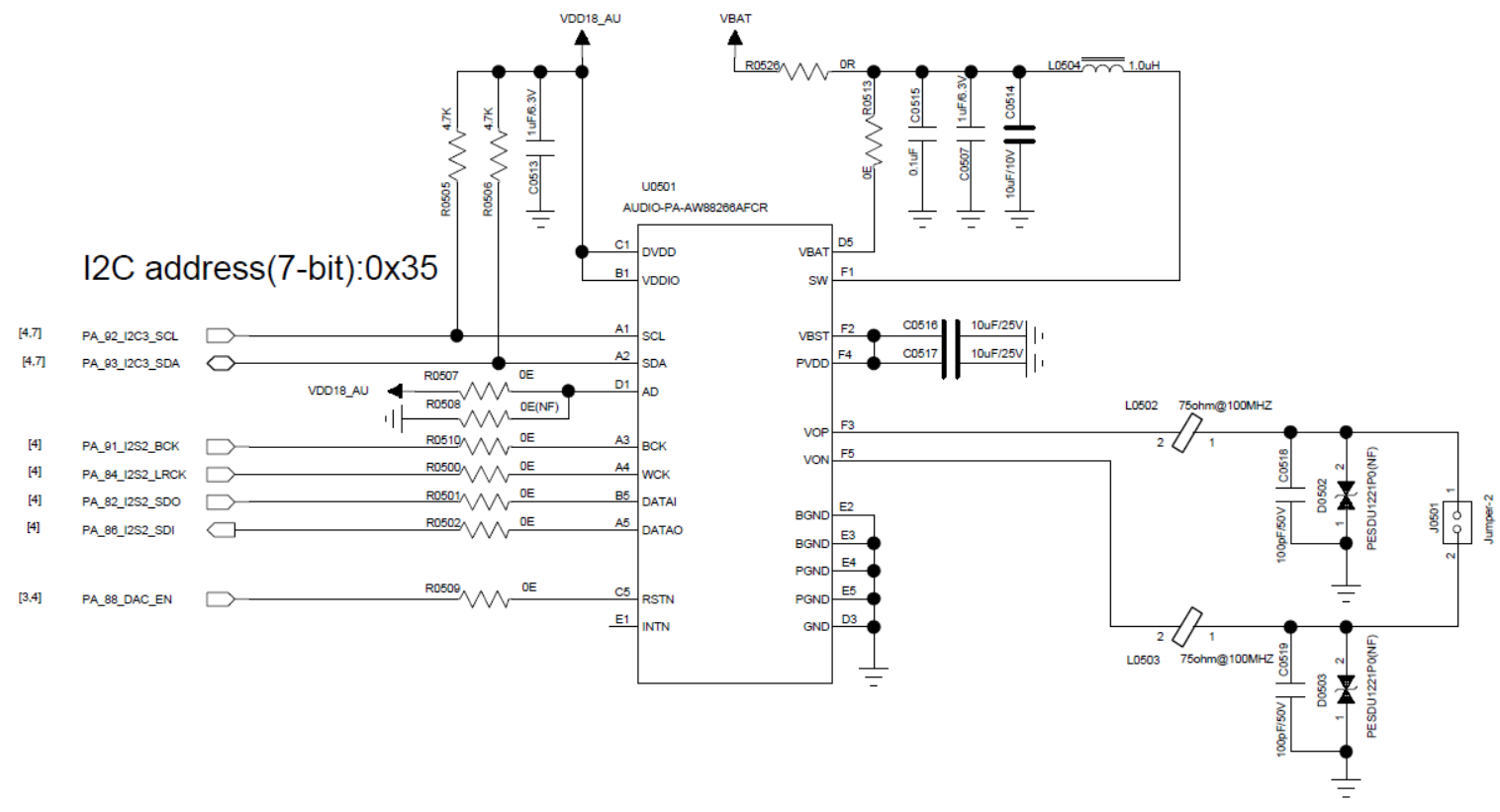

The I2S audio PA connection circuit diagram is shown in Figure 2.21. I2C3 is used to configure the registers of the I2S audio PA.

Figure 2.21 I2S Audio PA Circuit Diagram

USB Interface

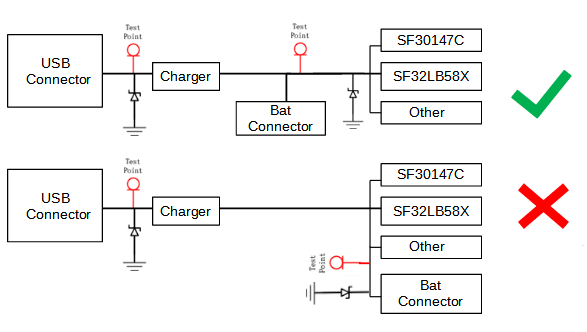

The USB interface of the SF32LB58x series chip supports USB 2.0 HS and supports Host and Device modes. TVS diodes must be connected in parallel from USB DP and DM to ground, and the junction capacitance of the TVS diodes must be less than 5 pF. In addition, the DP and DM PCB traces must be impedance-controlled as a 90-ohm differential pair. The USB interface connection diagram is shown in Figure 2.22.

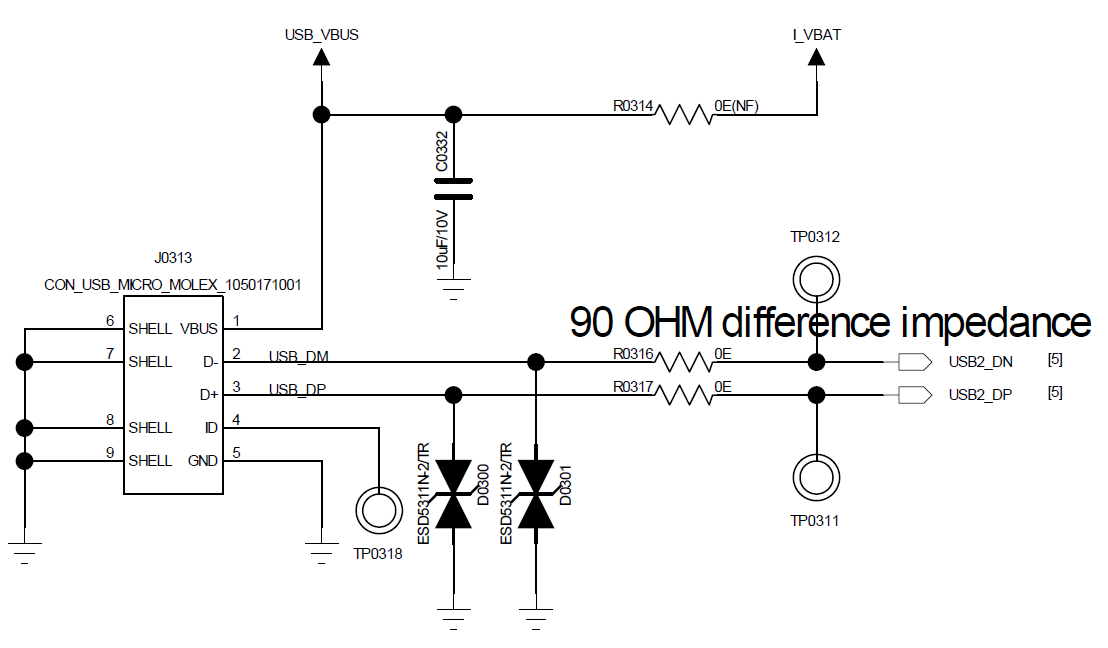

Figure 2.22 USB Interface Circuit Diagram

PCB Design Guidelines

PCB Footprint Design

Package Dimensions

The SF32LB58x series chip is packaged in BGA256, 8.5 mm x 6.5 mm x 0.94 mm, with a 0.4 mm pitch. The detailed dimensions are shown in Figure 3.1.

Figure 3.1 BGA256 Package Dimensions

Package Shape

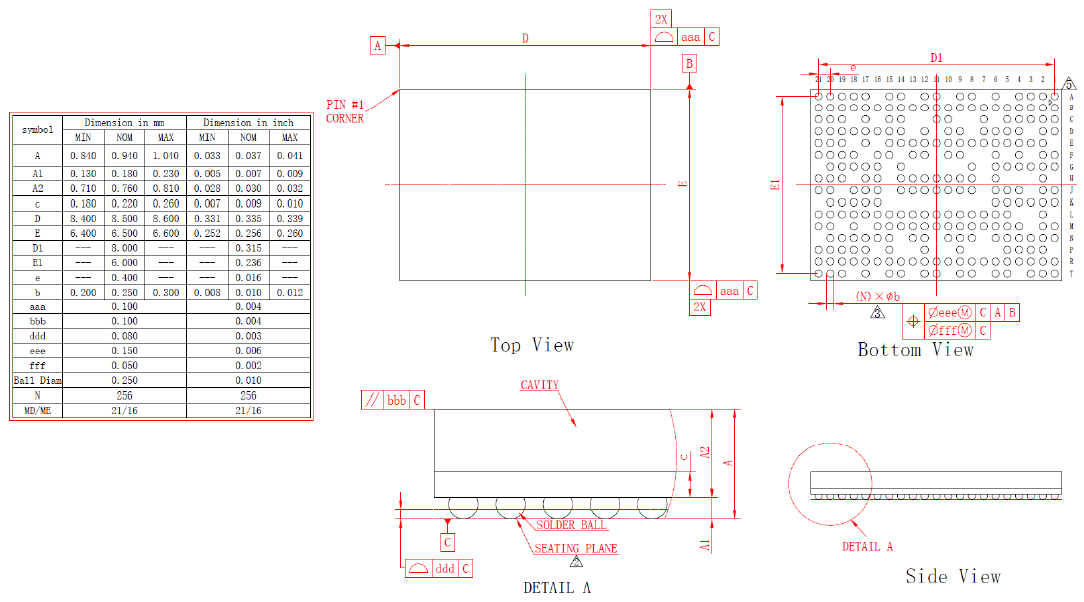

The package outline is shown in Figure 3.2.

Figure 3.2 Package Outline Drawing

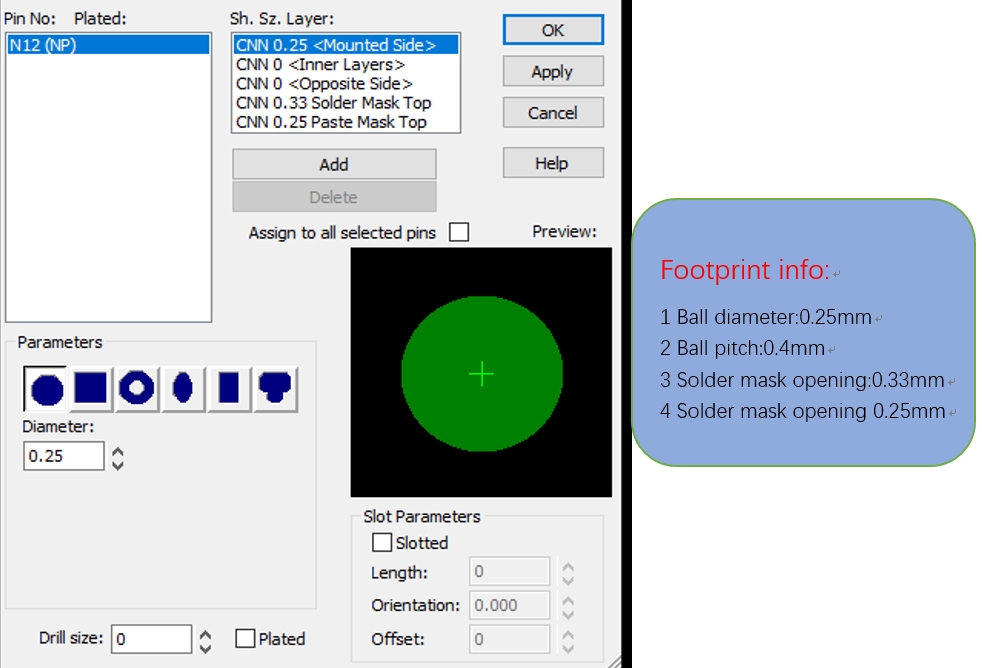

Pad Design

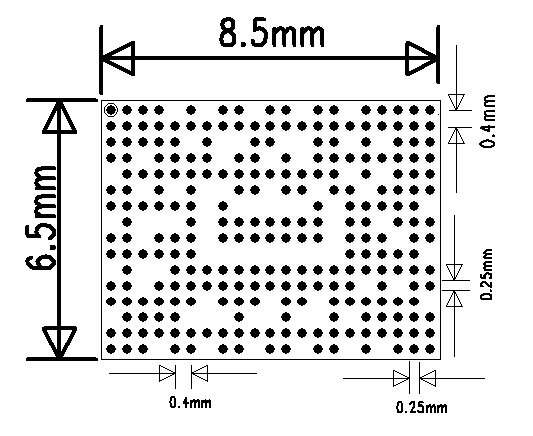

PCB pad design information is shown in Figure 3.3.

Figure 3.3 PCB Pad Design Reference

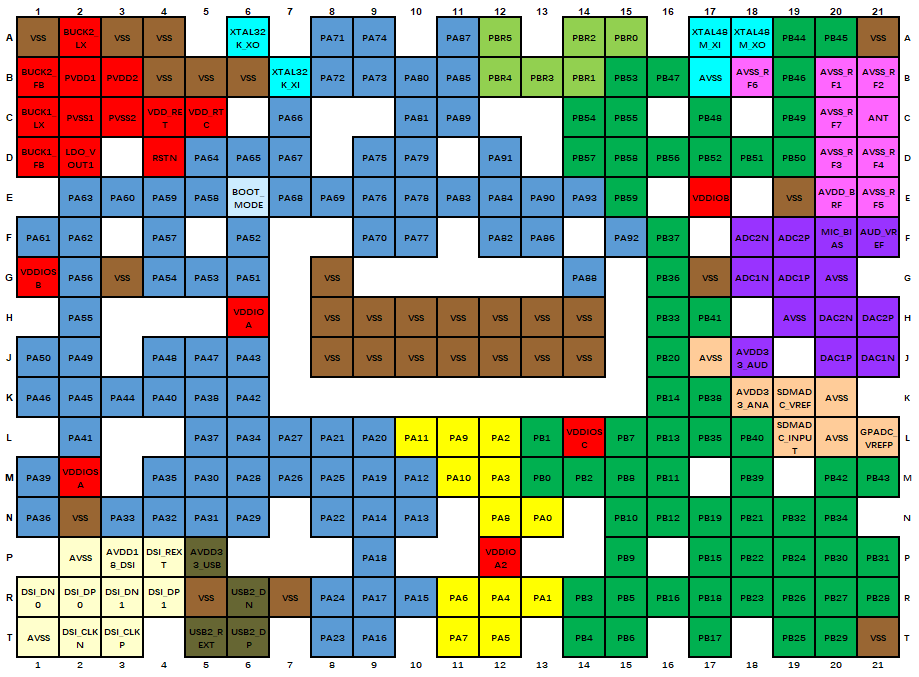

Package BALLMAP

Package BALLMAP information is shown in Figure 3.4.

Figure 3.4 Package BALLMAP Information

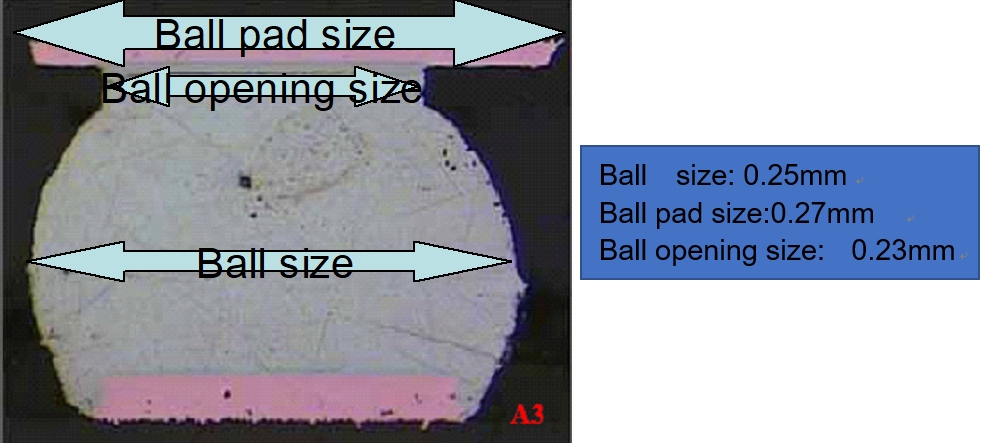

Package Substrate

Package Substrate BALL Information is shown in Figure 3.5. ​

Figure 3.5 Package Substrate BALL Information

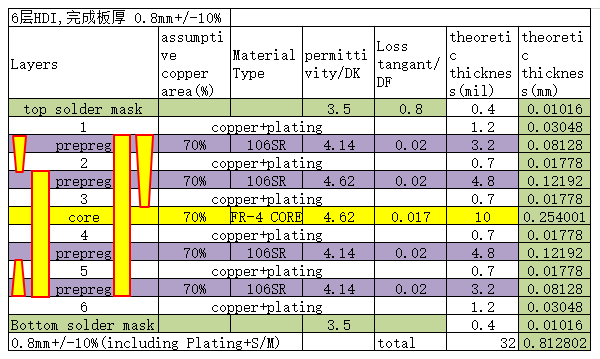

PCB Stackup Design

The SF32LB58x series chip layout supports single-sided and double-sided placement. The PCB supports only HDI boards and does not support PTH boards. 6HDI-2 is recommended. The recommended reference stack-up structure is shown in Figure 3.6.

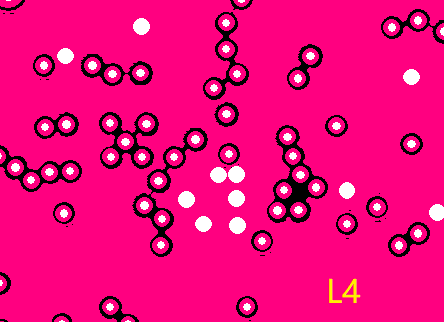

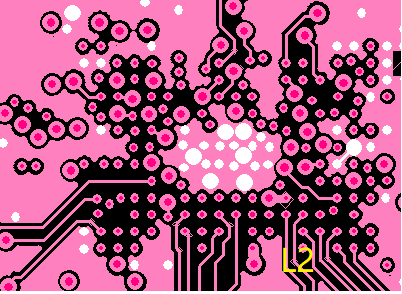

Figure 3.6 Reference Stack-up Structure Diagram

General PCB Design Rules

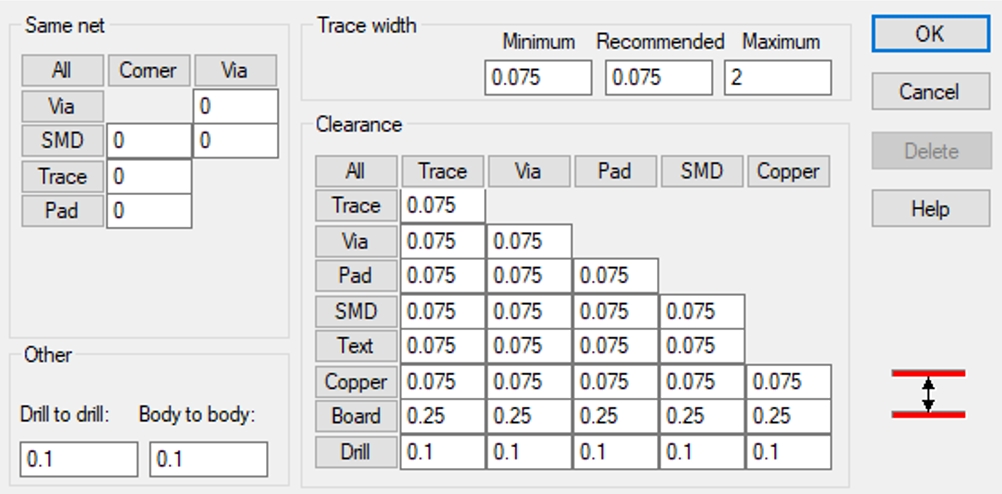

The general PCB design rules are shown in Figure 3.7, with units in mm.

Figure 3.7 General Design Rules

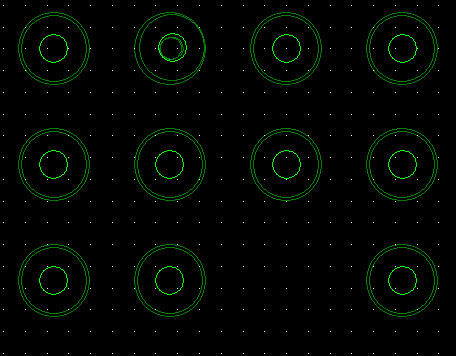

Blind Via Design

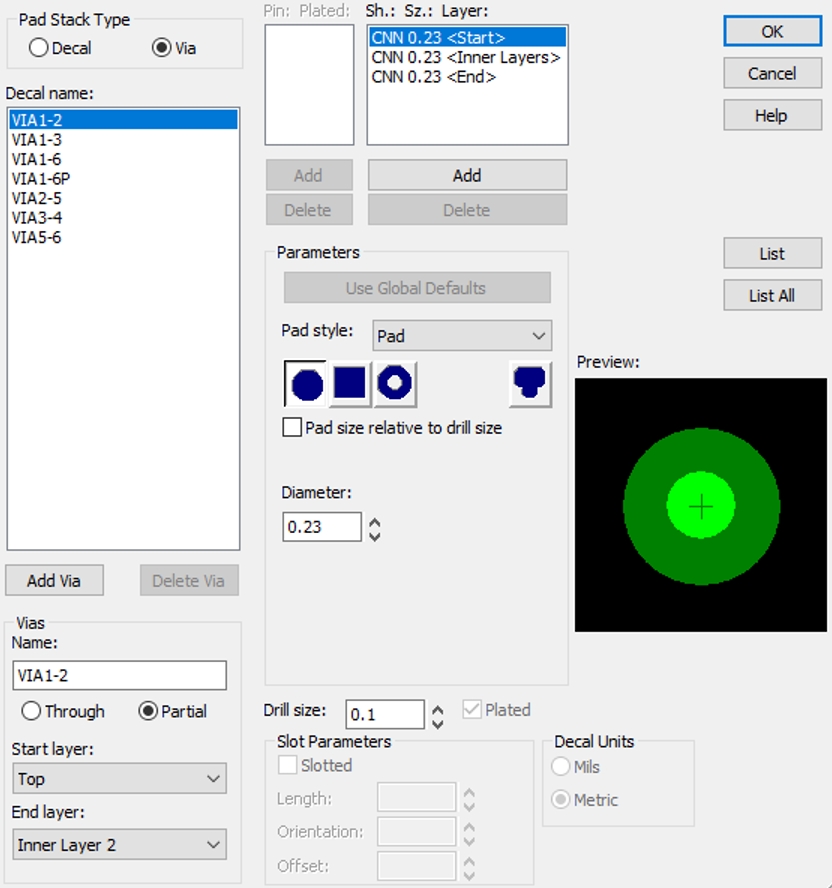

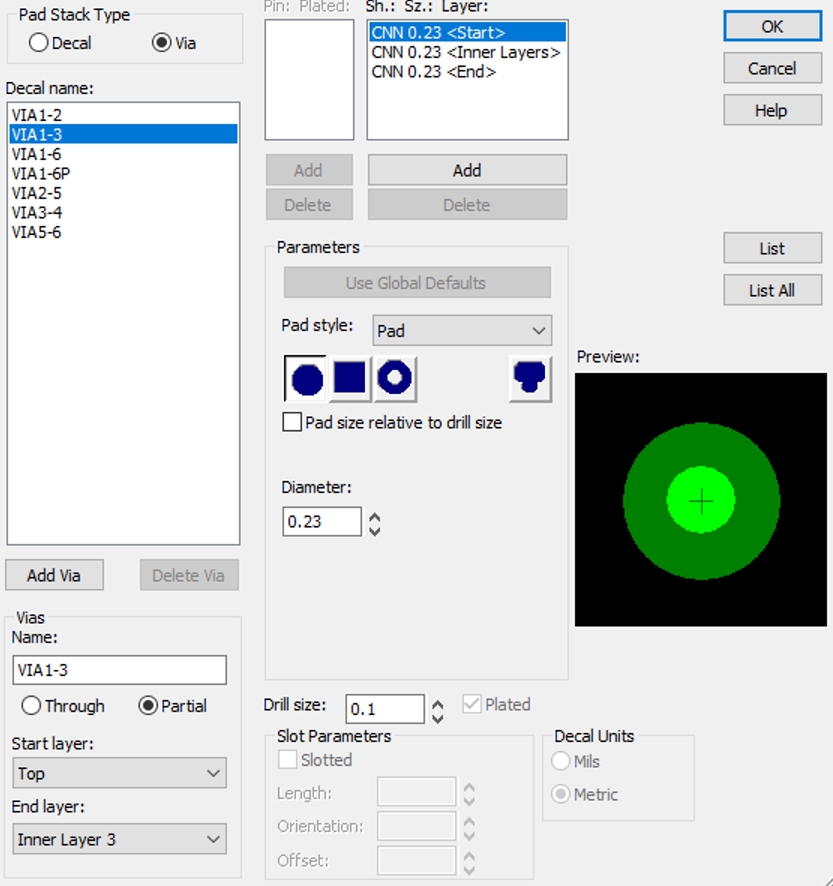

The PCB blind via design is shown in Figures 3.8 and 3.9, with units in mm.

Figure 3.8 1-2 Blind Via Design

Figure 3.9 1-3 Blind Via Design

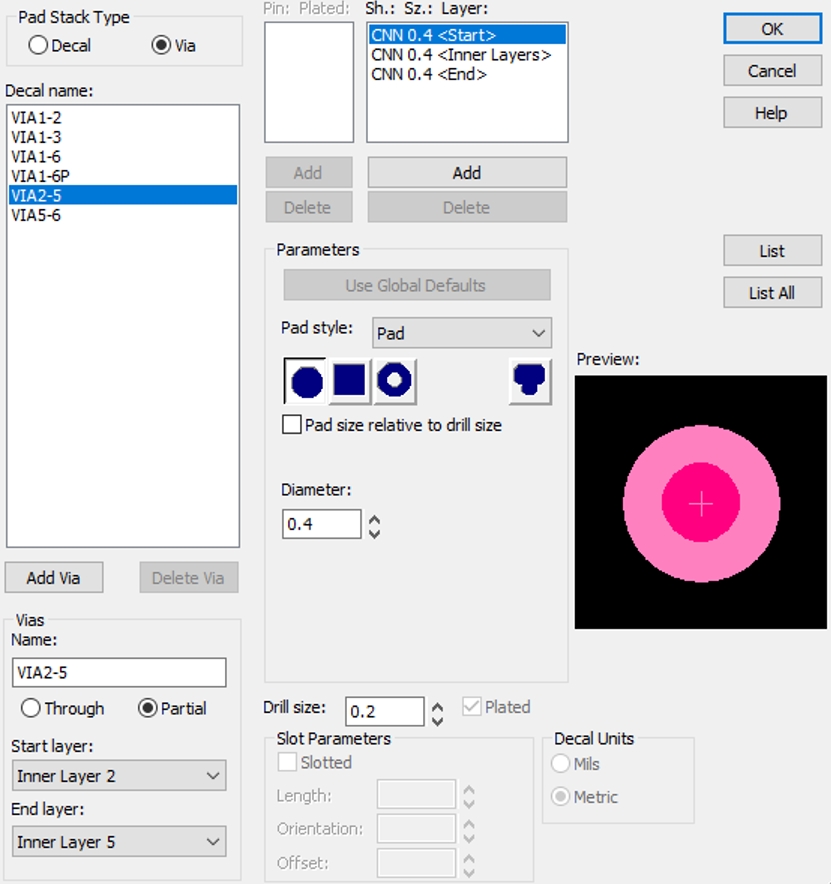

Buried Via Design

The PCB buried via design is shown in Figure 3.10, with units in mm.

Figure 3.10 Buried Via Design

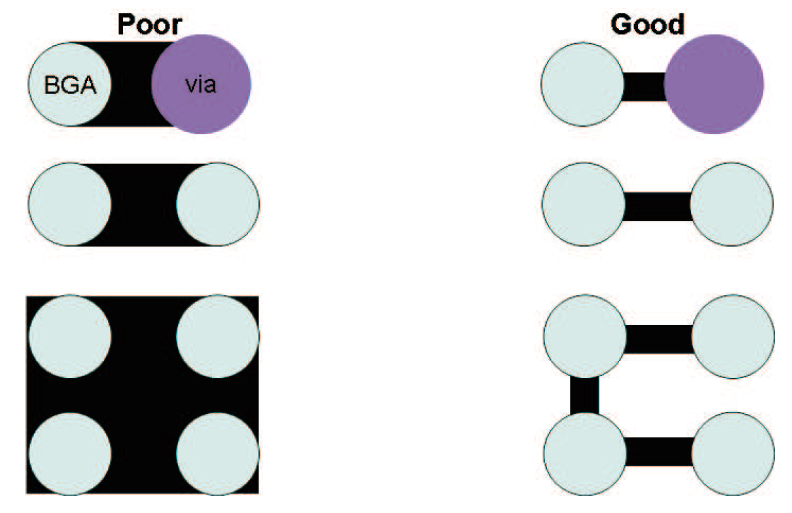

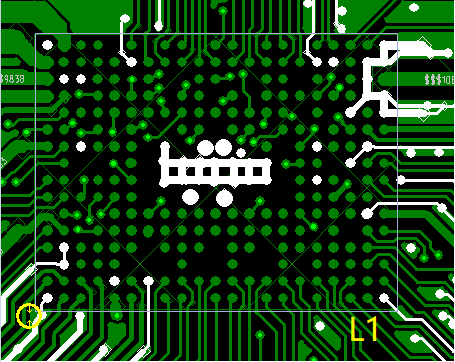

SF32LB58x Chip Trace Fanout

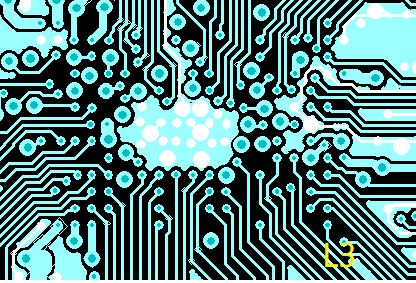

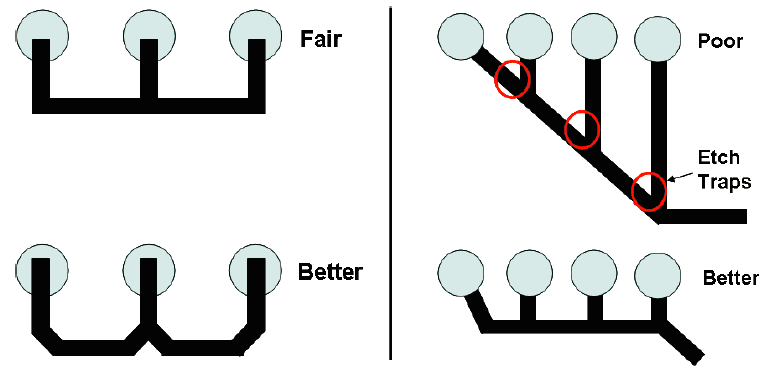

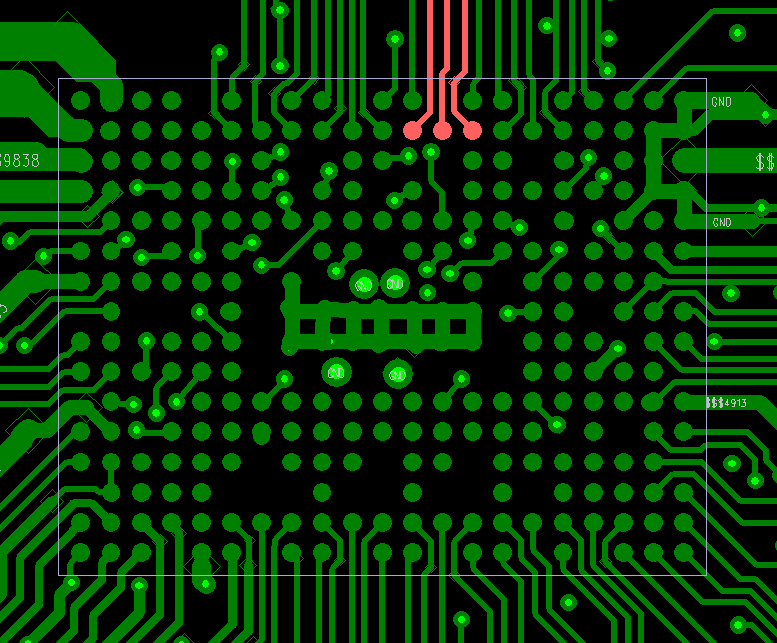

The balls in the first two rows and columns of the BGA are fanned out on the surface layer, while the other balls are fanned out to inner layers through vias, as shown in Figures 3.11 and 3.12.

Figure 3.11 Surface-Layer Fanout Reference Diagram

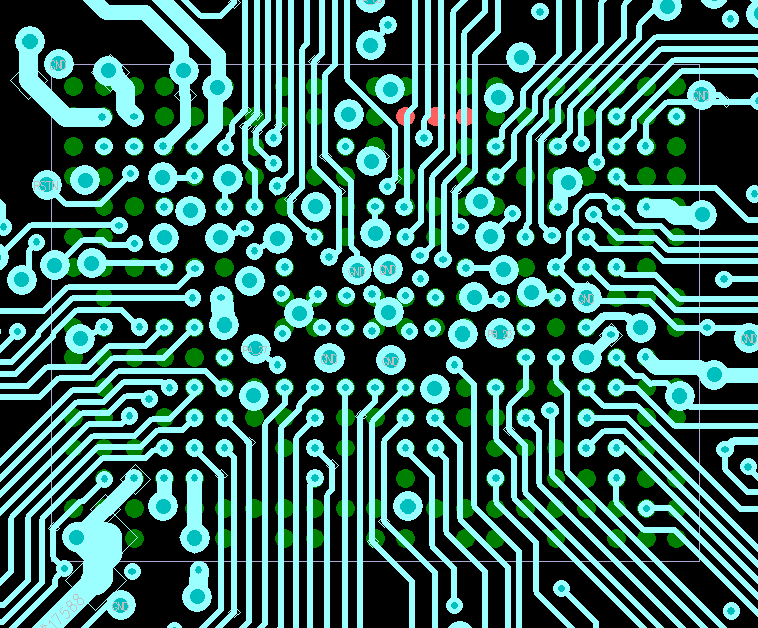

Figure 3.12 Inner-Layer Fanout Reference Diagram

Clock Interface Routing

The crystal must be placed inside the shield can, with a clearance of more than 1 mm from the PCB board outline. Keep it as far away as possible from components that generate significant heat, such as PA, Charge, and PMU circuit components; a distance of more than 5 mm is preferred to avoid affecting the crystal frequency deviation. The keep-out clearance for the crystal circuit must be greater than 0.25 mm to avoid other metal and components, as shown in Figure 3.13.

Figure 3.13 Crystal Layout Diagram

The 48 MHz crystal traces are recommended to be routed on the surface layer, with the trace length controlled within 3–10 mm and a trace width of 0.075 mm. Three-dimensional ground shielding must be applied, and the traces must be kept away from VBAT, DC/DC, and high-speed signal lines. Keep-out treatment must be applied to the surface layer and adjacent layers below the 48 MHz crystal area, and other traces are prohibited from passing through this area, as shown in Figures 3.14, 3.15, and 3.16.

Figure 3.14 48 MHz Crystal Schematic

Figure 3.15 48 MHz Crystal Routing Model

Figure 3.16 48 MHz Crystal Routing Reference

The 32.768 kHz crystal traces are recommended to be routed on the surface layer, with the trace length controlled to ≤10 mm and a trace width of 0.075 mm. The spacing between the parallel 32K_XI/32_XO traces must be ≥0.15 mm. Three-dimensional ground shielding must be applied. Keep-out treatment must be applied to the surface layer and adjacent layers below the crystal area, and other traces are prohibited from passing through this area, as shown in Figures 3.17, 3.18, and 3.19.

Figure 3.17 32.768 kHz Crystal Schematic

Figure 3.18 32.768 kHz Crystal Routing Model

Figure 3.19 32.768 kHz Crystal Routing Reference

RF Interface Routing

The RF matching circuit should be placed as close as possible to the chip side, not close to the antenna side. For the AVDD_BRF RF power supply, its filter capacitor should be placed as close as possible to the chip pin. The capacitor ground pin should be connected directly to the main ground through a via. The schematic and PCB layout of the π-type network for the RF signal are shown in Figures 3.20 and 3.21, respectively.

Figure 3.20 π-Type Network and Power Supply Circuit Schematic

Figure 3.21 π-Type Network and Power Supply PCB Layout

The RF trace is recommended to be routed on the surface layer to avoid vias and layer transitions that could affect RF performance. The trace width should preferably be greater than 10 mil. 3D ground shielding is required. Avoid acute-angle and right-angle routing. Add multiple shielding ground vias on both sides of the RF trace. The RF trace requires 50-ohm impedance control, as shown in Figures 3.22 and 3.23.

Figure 3.22 RF Signal Circuit Schematic

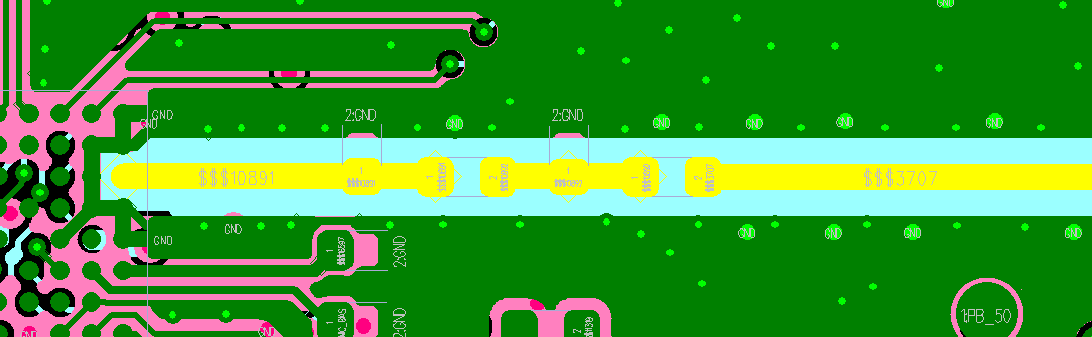

Figure 3.23 RF Signal PCB Routing

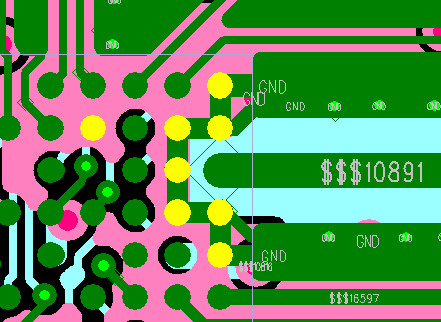

For RF circuit routing, DC-DC, VBAT, and high-speed digital signals are prohibited from passing through the RF area, such as crystal oscillators, high-frequency Clock, and digital interface signals (I2C,SPI,SDIO,I2S, UART, etc.). AVSS_RRF, AVSS_TRF, AVSS_TRF2, AVSS_VCO, and AVSS_BB are the RF circuit ground pins. They must be well grounded. It is recommended to place blind vias directly on their pads and connect them to the main ground, as shown in Figure 3.24a and Figure 3.24b.

Figure 3.24a RF Circuit Ground Signal Schematic

Figure 3.24b PCB Diagram of RF Circuit Ground Signals

Audio Interface Routing

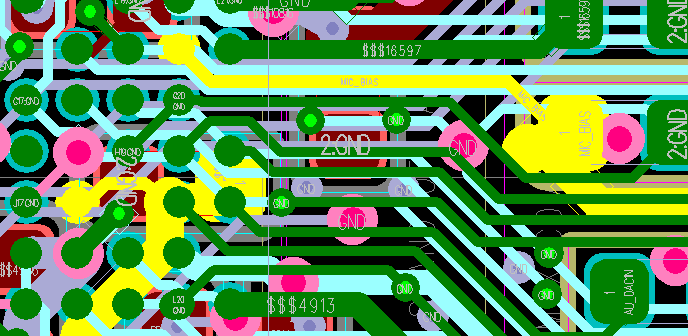

AVDD33_AUD is the pin that supplies power to the audio interface. Its filter capacitor should be placed close to the corresponding pin, and the ground terminal of the filter capacitor should be well connected to the main ground. MIC_BIAS is the power supply circuit for the microphone of the audio interface. Its corresponding filter capacitor should be placed close to the corresponding pin, and the ground terminal of the filter capacitor should be well connected to the main ground. The AUD_VREF filter capacitor should be placed close to the pin, as shown in Figures 3.25a and 3.25b.

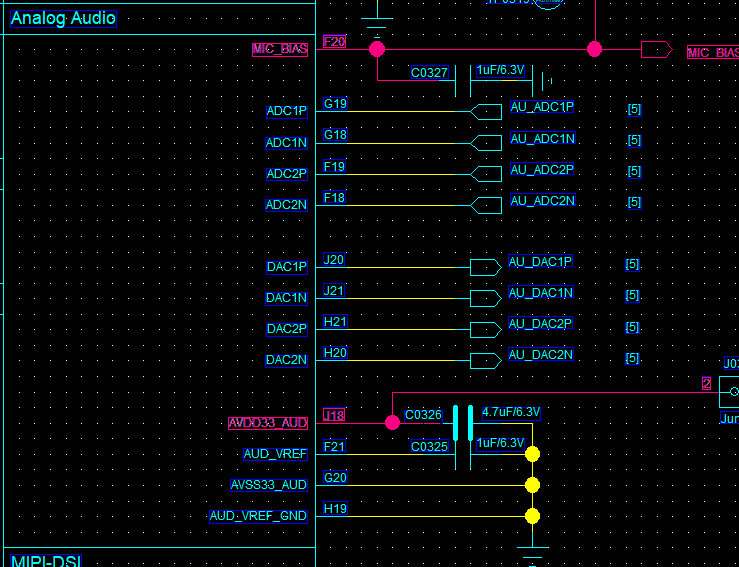

Figure 3.25a Audio Circuit Power Supply Schematic

Figure 3.25b PCB Design of the Audio Circuit Power Supply Filter Circuit

AU_ADC1P/AU_ADC1N and AU_ADC2P/AU_ADC2N are two analog signal inputs. The corresponding circuit components should be placed as close as possible to the corresponding pins. The P/N pair of each channel should be routed as differential traces, with trace lengths kept as short as possible. The differential pair traces should use 3D ground shielding. Strong interference signals from other interfaces should be kept away from these traces, as shown in Figures 3.26a and 3.26b.

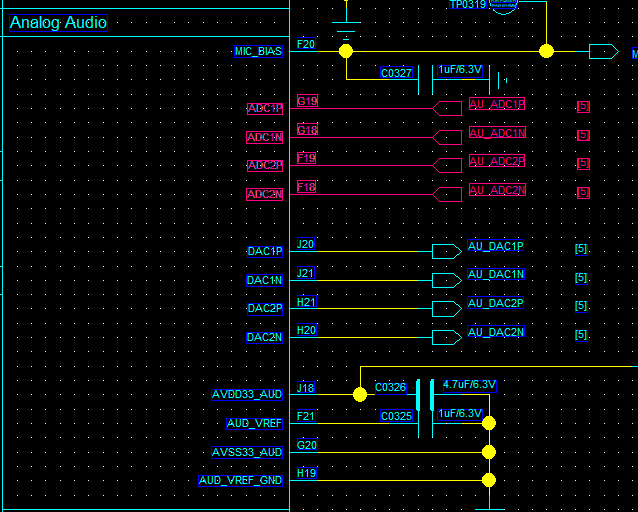

Figure 3.26a Analog Audio Input Schematic

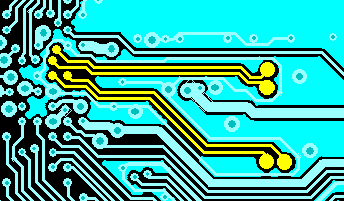

Figure 3.26b Analog Audio Input PCB Design

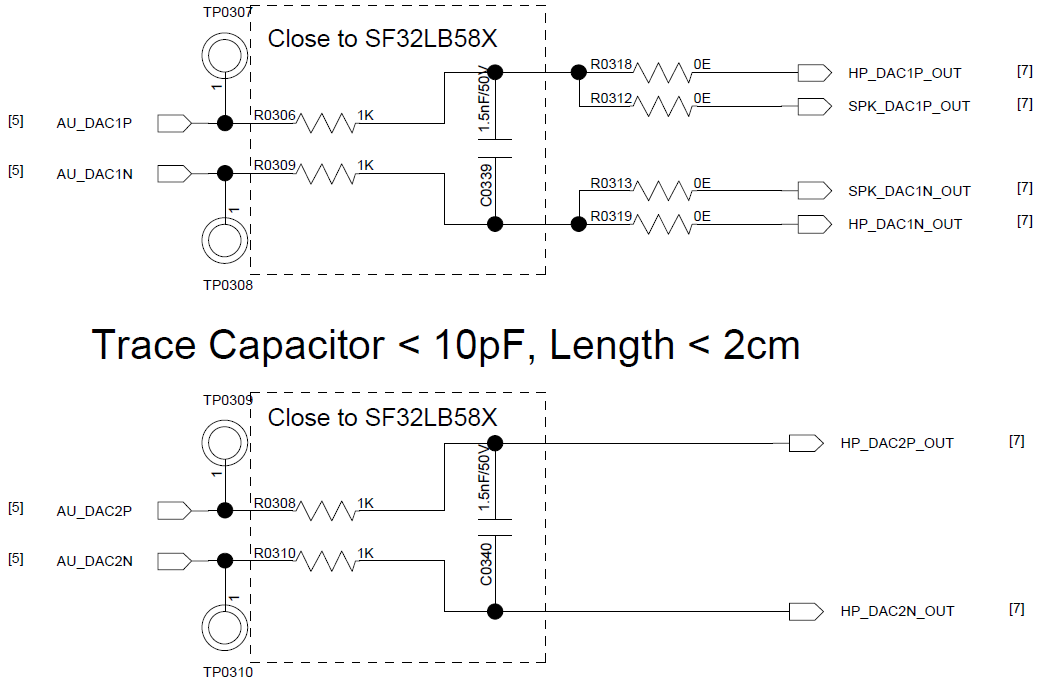

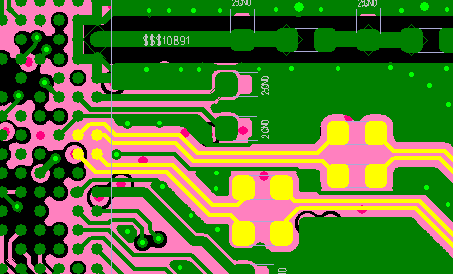

AU_DAC1P/AU_DAC1N and AU_DAC2P/AU_DAC2N are two analog signal outputs. The corresponding circuit components should be placed as close as possible to the corresponding pins. The P/N pair of each channel should be routed as differential traces, with trace lengths kept as short as possible and less than 2 mm, trace parasitic capacitance less than 10 pF, and differential trace width of 0.075 mm. The differential pair traces should use 3D ground shielding. Strong interference signals from other interfaces should be kept away from these traces, as shown in Figures 3.27a and 3.27b.

Figure 3.27a Analog Audio Output Schematic

Figure 3.27b Analog Audio Output PCB Design

USB Interface Routing

AVDD33_USB is the power supply pin for the USB interface. Its filter capacitor should be placed close to the pin, and the calibration resistor connected to USB2_REXT should be placed close to the pin. The USB traces must first pass through the ESD device pins and then go to the chip side. Ensure that the ground pin of the ESD device is well connected to the main ground. USB DP/DN should be routed as differential traces, controlled to a 90-ohm differential impedance, and provided with 3D ground shielding, as shown in Figures 3.28a and 3.28b. Figure 2.29a is a component placement reference diagram for USB signals, and Figure 3.29b is the PCB trace model.

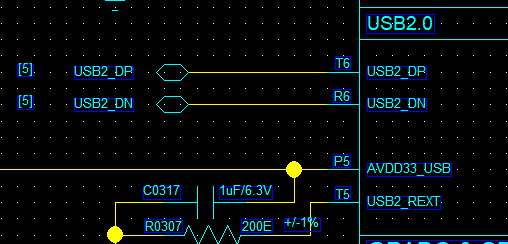

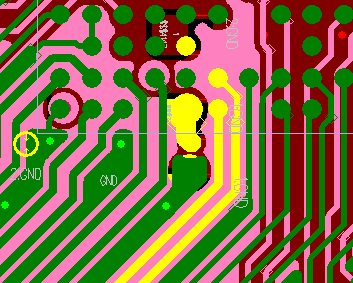

Figure 3.28a USB Signal Schematic

Figure 3.28b USB Signal PCB Design

Figure 3.29a USB Signal Component Placement Reference

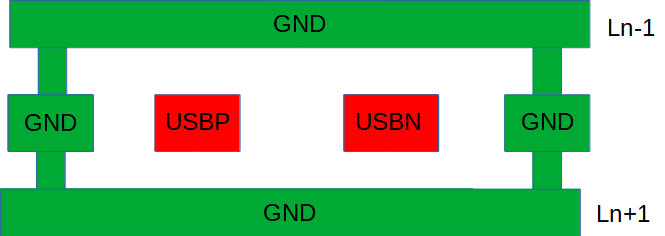

Figure 3.29b USB Signal Trace Model

SDIO Interface Routing

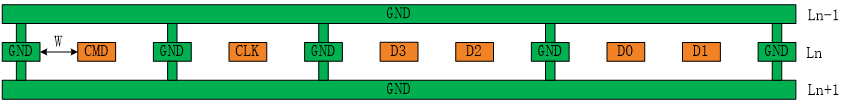

The SF32LB58X provides two SDIO interfaces: SDIO1 and SDIO2. All SDIO signal traces should be routed together and should not be separated. The total trace length should be ≤50 mm, and the intra-group length mismatch should be controlled to ≤6 mm. The clock signal of the SDIO interface must use three-dimensional ground shielding, and the DATA and CM signals also require ground shielding, as shown in Figures 3.30a and 3.30b.

Figure 3.30a SDIO1 Interface Circuit Diagram

Figure 3.30b SDIO1 PCB Trace Model

DSI Interface Routing

AVDD18_DSI is the power supply pin for the DSI interface. Its filter capacitor should be placed close to the pin, and the DSI_REXT calibration resistor should also be placed close to the pin. DSI interface traces should be routed as differential traces, with 100-ohm differential impedance control. The clock and data traces must be length-matched, with intra-pair length mismatch controlled to ≤0.5 mm and inter-pair length mismatch controlled to ≤2 mm. Each differential pair must use three-dimensional ground shielding, as shown in Figures 3.31a and 3.31b.

Figure 3.31a DSI Signal Circuit Diagram

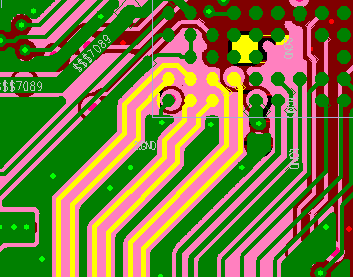

Figure 3.31b DSI Signal PCB Routing

DC-DC Circuit Routing

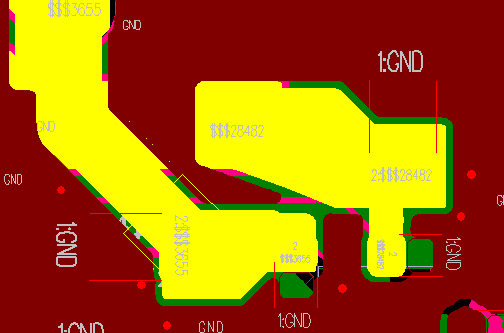

The power inductor and filter capacitors of the DC-DC circuit must be placed close to the chip pins. The BUCK_LX trace should be as short and wide as possible to ensure low loop inductance for the entire DC-DC circuit. The ground terminals of all DC-DC output filter capacitors should be connected to the main ground plane with multiple vias. The feedback trace for the BUCK_FB pin must not be too narrow and must be greater than 0.25 mm. Copper pour is prohibited on the top layer in the power inductor area, and the adjacent layer must be a complete reference ground. Avoid routing other traces through the inductor area, as shown in Figures 3.32a and 3.32b.

Figure 3.32a Schematic of Key DC-DC Components

Figure 3.32b PCB Layout of Key DC-DC Components

Power Supply Routing

PVDD1 and PVDD2 are the power input pins for the chip’s built-in PMU module. The corresponding capacitors must be placed close to the pins, and the traces should be as wide as possible and no less than 0.5 mm. PVSS1 and PVSS2 are the ground pins for the PMU module and must be connected to the main ground through vias. Avoid leaving them floating, as this would affect the overall PMU performance, as shown in Figures 3.33a and 3.33b.

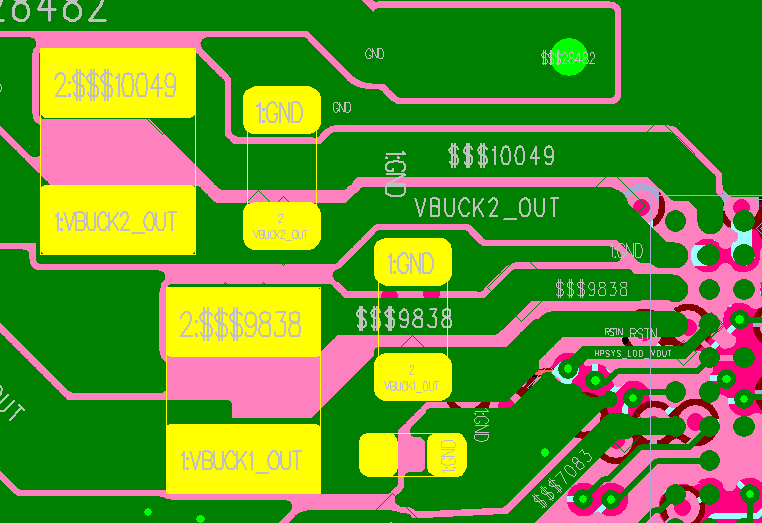

Figure 3.33a DC-DC Circuit Diagram

Figure 3.33b DC-DC PCB Routing

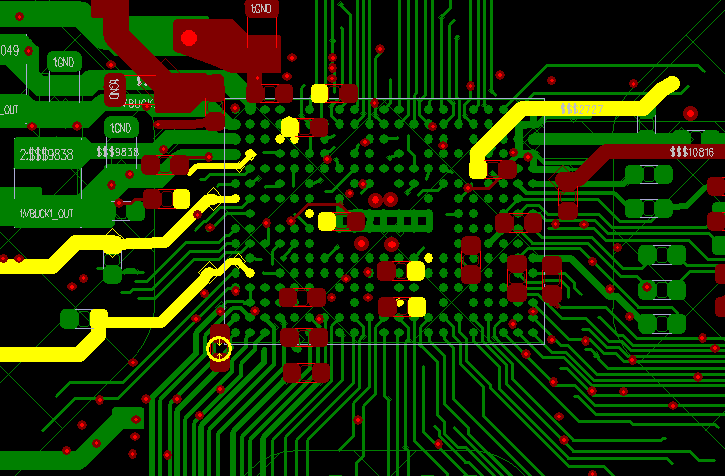

LDO and I/O power input routing

The filter capacitors for all LDO outputs and IO power input pins should be placed close to the corresponding pins. Their trace width must meet the input current requirements, and the traces should be as short and wide as possible to reduce power supply ripple and improve system stability, as shown in Figure 3.14.

Figure 3.34 LDO and I/O Input Power Routing Diagram

Other Interface Routing

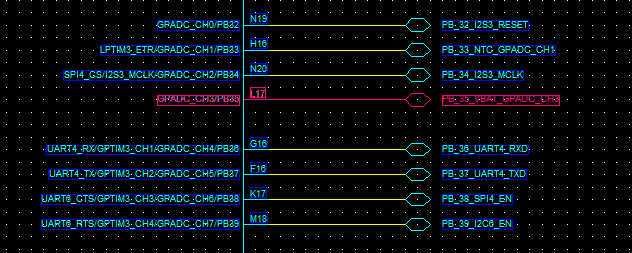

For pins configured as GPADC signal pins, three-dimensional ground shielding is required, and they must be kept away from other interfering signals, such as battery level circuits and temperature detection circuits, as shown in Figure 3.35.

Figure 3.35 GPADC Circuit Diagram

For signal networks of pins configured as clock input/output pins, three-dimensional ground shielding is required, and they must be kept away from other interfering signals, such as the 32K output, as shown in Figure 3.36.

Figure 3.36 32K Clock Output Circuit Diagram

SF32LB58X Chip Ground Routing

The ground networks in the center area of the SF32LB58X chip must all be connected with traces to ensure a sufficient ground plane and must be connected to the main ground plane through blind and buried vias, as shown in Figures 3.37a, 3.37b, 3.37c, and 3.37d.

Figure 3.37a Ground Signals on the TOP Layer Under the Chip

Figure 3.37b Ground Signals on the Second Layer Under the Chip

Figure 3.37c Ground Signals on the Third Layer Under the Chip

Figure 3.37d Ground Signals on the Fourth Layer Under the Chip

EMI&ESD routing

Avoid long-distance routing on the top layer outside the shielding cover. In particular, interfering signals such as clocks and power supplies should be routed on inner layers whenever possible and are prohibited from being routed on the top layer. ESD protection devices must be placed close to the corresponding connector pins. Signal traces should first pass through the pins of the ESD protection device to avoid signal branching that does not pass through the ESD protection pins. The ground pins of ESD devices must be connected to the main ground through vias. Ensure that the ground pad traces are short and wide to reduce impedance and improve the performance of the ESD devices.

Other

The test point for the USB charging line must be placed before the TVS diode. The TVS diode for the battery connector should be placed before the platform, and the routing must ensure that the trace passes through the TVS diode first and then goes to the chip end, as shown in Figure 3.38.

Figure 3.38 Power Supply TVS Layout Reference

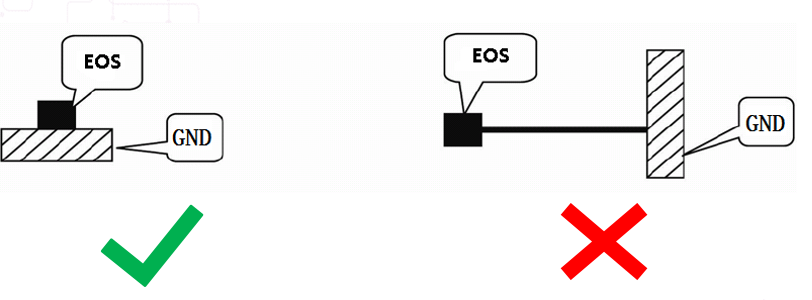

Avoid routing a long trace from the ground pin of the TVS diode before connecting it to ground, as shown in Figure 3.39.

Figure 3.39 TVS Routing Reference

To prevent the solder mask from covering the pads and affecting soldering reliability, vias on BGA pads must be placed in the center area of the BGA balls. Avoid offset drilling, as shown in Figure 3.40.

Figure 3.40 BGA Via Placement Diagram

To improve manufacturability and yield, optimize the PCB design with reference to Figures 3.41a and 3.41b.

Figure 3.41a BGA Ball Routing Reference Diagram 1

Figure 3.41b BGA Ball Routing Reference Diagram 2

Revision History

Version	Date	Release Notes
0.0.1	1/2025	Draft version
