SiFli Chip Model Guide

Chip Numbering Rule: SF32LB5xyZxYx6

Prefix: SF32LB5xy

  • SF: Chip Series

    • SiFli, company logo

    • Other series such as SSxxxx are not included here

  • 32: Chip Series

    • 32: 32-bit MCU series

    • 30: PMU series, all subsequent numbers, e.g., SF30147, do not follow the numbering rule below

  • LB: Series Attributes

    • LB: Low-power Bluetooth MCU

    • VB: Bluetooth MCU with RISC-V processor

  • 5: Processor Series

    • 5: Based on 32-bit Arm Cortex-M33 Star-MC1 processor or similar RISC-V processor

    • 0: Based on 32-bit Arm Cortex-M0+ processor

  • x: High, Medium, or Low Positioning

    • 8: Flagship product of the 5x series

    • 6/5: Mid-range product of the 5x series

    • 2: Cost-effective product of the 5x series

  • y: Product Positioning within the Series

    • Generally determined by the internal PSRAM capacity, specific numbers vary by specific chip

Suffix: ZxYx6

  • Z: Package

    • U: QFN package

    • V: BGA package

  • xYx: Internal NOR Flash or PSRAM capacity code, the number of digits and combination depend on the specific package

    • x as a number: Internal NOR Flash capacity

      • 1: 2Mb

      • 2: 4Mb

      • 3: 8Mb

      • 4: 16Mb

      • 5: 32Mb

      • 6: 64Mb

    • X as a letter: Internal PSRAM capacity

      • A: 16Mb QPI-PSRAM

      • B: 32Mb OPI-PSRAM

      • C: 64Mb OPI-PSRAM

      • D: 128Mb OPI/HPI-PSRAM

      • E: 256Mb HPI-PSRAM

  • 6: Temperature Range

    • 5: -20~70°C

    • 6: -40~85°C

Important

Note that the official company name is SiFli, with S and F in uppercase and the rest in lowercase, meaning Silicon Fli (Fly); Sifli, sifli, SiFLi are all incorrect spellings.

Note

Abbreviations Explanation

  • NOR:   QSPI NOR Flash

  • QPI-P:   x4-PSRAM

  • OPI-P:   x8-PSRAM

  • HPI-P:   x16-PSRAM

SF32LB52x/X Series Main Models List

  • SF32LB52x/X:

    • x as a number: Lithium-ion Battery Powered series, such as SF32LB520/3/5/7, mutually pin-to-pin compatible

    • X as some letters: Standard 3.3V powered series, including SF32LB52B/E/G/J, mutually pin-to-pin compatible

    • X as some letters: Special 1.8V powered series, including SF32LB52D, for ultra-low power scenarios

    • x as a number and X as a letter are two independent series, not pin-to-pin compatible; although 3.3V models and 1.8V models can be pin-to-pin aligned, they are not voltage compatible, thus not compatible; the corresponding relationship from the package content is:

      • Lithium-ion  3.3V  1.8V

      • 520 – 52B

      • 523 – 52E – 52D

      • 525 – 52G

      • 527 – 52J

  • The SF32LB52x series supports the following display interfaces

    • SPI/DSPI/QSPI, including e-ink SPI interface

    • 8080-8bit

Part #

520U36

523UB6

525UC6

527UD6

52BU36

52BU56

52DUB6

52EUB6

52GUC6

52JUD6

Package

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

QFN68L

Sizes

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

7x7x0.85 mm

Pitch

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

0.35mm

# of GPIOs

44

44

44

44

45

45

45

45

45

45

MPI1 SiP

1MB NOR

4MB OPI-P

8MB OPI-P

16MB OPI-P

1MB NOR

4MB NOR

4MB OPI-P

4MB OPI-P

8MB OPI-P

16MB OPI-P

Power Supply

3.2~4.7V

3.2~4.7V

3.2~4.7V

3.2~4.7V

3.3V

3.3V

1.8V

3.3V

3.3V

3.3V

I/O Voltage

3.3V

3.3V

3.3V

3.3V

3.3V/1.8V

3.3V/1.8V

3.3V/1.8V

3.3V/1.8V

3.3V/1.8V

3.3V/1.8V

Temperature

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

-40~85C

SF32LB55x Main Model List

  • The SF32LB55x series, defined earlier, does not fully follow the above suffix rules, only 557V3DA6 follows the suffix naming rules

  • Identical packages are pin-to-pin compatible

  • The SF32LB55x series supports the following display interfaces based on different packages, either in full or in part

    • MIPI-DSI, CMD mode

    • DPI/RGB888, RGB565

    • SPI/DSPI/QSPI, including e-ink screen SPI interface

    • 8080-8bit

    • JDI/Sharp MIP screen interface (557VD3A6)

    • Supports MIPI-DSI + SPI/DSPI dual-screen display (557VD3A6)

Part #

SS6600A8

551U4O5

555V4O6

555V436

557VD3A6

Package

QFN68L

QFN68L

BGA145

BGA145

BGA169

Sizes

7x7x0.75 mm

7x7x0.75 mm

7x7x0.94 mm

7x7x0.94 mm

7x7x0.94 mm

Pitch

0.35mm

0.35mm

0.5mm

0.5mm

0.5mm

HCPU GPIOs

28

28

52

52

71

LCPU GPIOs

21

21

40

40

42

QSPI1-L Boot SiP

4MB NOR

4MB NOR

4MB NOR

4MB NOR

1MB NOR

QSPI1-H SiP

4MB NOR

n/a

n/a

n/a

n/a

PSRAM SiP

n/a

4MB OPI-P

4MB OPI-P

8MB OPI-P

16MB OPI-P

QSPI4 SiP

n/a

n/a

n/a

n/a

2MB QPI-P

Display Interface

QSPI/8080

QSPI/8080

MIPI/QSPI/8080

MIPI/QSPI/8080

MIPI/QSPI/8080/JDI

Power Supply

2.97V~3.63V

1.71~3.63V

1.71~3.63V

1.71~3.63V

1.71~3.63V

Temperature

-20~70C

-20~70C

-40~85C

-40~85C

-40~85C

Note

  • SS6600A8 contains two 4MB QSPI-NOR chips, which are configured to operate as a single 8MB OSPI-NOR.

Chip Model Comparison Table

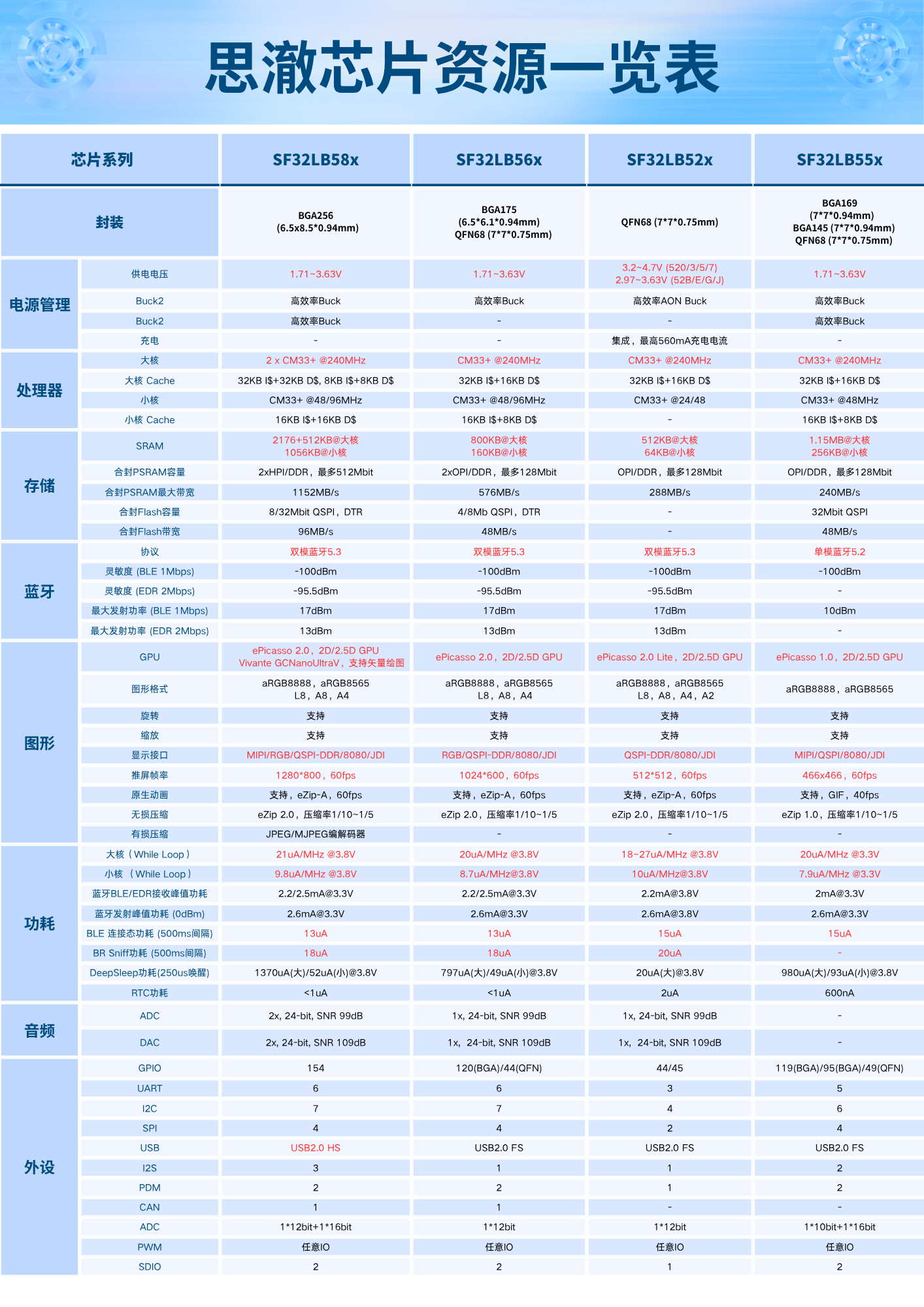

../_images/silicon.png

Sample Acquisition

Retail samples and small quantities can be purchased directly from Taobao. For bulk orders, please send an email to sales@sifli.com or contact customer service on Taobao to obtain sales contact information.

Participating in open source can allow you to apply for free samples. You can join QQ group 674699679 for communication.
