SF32LB52X - Hardware Design Guide¶

Attention

This document is applicable to chips with suffix letters B, E, G, J, which are powered by 3.3V; chips with suffix letter D are powered by 1.8V.

For chips with suffix numbers 0, 3, 5, 7, which belong to the SF32LB52x series, they are powered by a lithium battery and support USB charging. Please refer to the Hardware Design Guide

Introduction¶

The primary purpose of this document is to assist developers in completing the development of watch solutions based on the SF32LB52X series of chips. This document focuses on hardware design considerations during the development process, aiming to reduce the workload of developers and shorten the product’s time to market.

The SF32LB52X is a series of highly integrated, high-performance MCU chips designed for ultra-low-power AIoT (Artificial Intelligence of Things) scenarios. The chip employs a big.LITTLE architecture based on the Arm Cortex-M33 STAR-MC1 processor, integrating a high-performance 2D/2.5D graphics engine, an AI neural network accelerator, dual-mode Bluetooth 5.3, and an audio CODEC. It can be widely used in various applications, including wearable electronic devices, smart mobile terminals, and smart home devices.

Attention

The SF32LB52X is the standard power supply version of the SF32LB52 series, with a supply voltage of 2.97~3.63V (except for 52D, which is 1.71~1.98V) and does not support charging. It includes the following models:
SF32LB52BU36, with 1MB QSPI-NOR Flash
SF32LB52DUB6, with 4MB OPI-PSRAM
SF32LB52EUB6, with 4MB OPI-PSRAM
SF32LB52GUC6, with 8MB OPI-PSRAM
SF32LB52JUD6, with 16MB OPI-PSRAM

The processor’s peripheral resources are as follows:

45x GPIO
3x UART
4x I2C
2x GPTIM
2x SPI
1x I2S audio interface
1x SDIO storage interface
1x PDM audio interface
1x differential analog audio output
1x single-ended analog audio input
Supports single, dual, and quad data line SPI display interfaces, and serial JDI mode display interfaces
Supports both GRAM and non-GRAM displays
Supports UART download and software debugging

Packaging¶

Table 2-1 Packaging Information

Package Name	Dimensions	Pin Pitch
QFN68L	7x7x0.85 mm	0.35 mm

../_images/sf32lb52X-B-package-layout.png

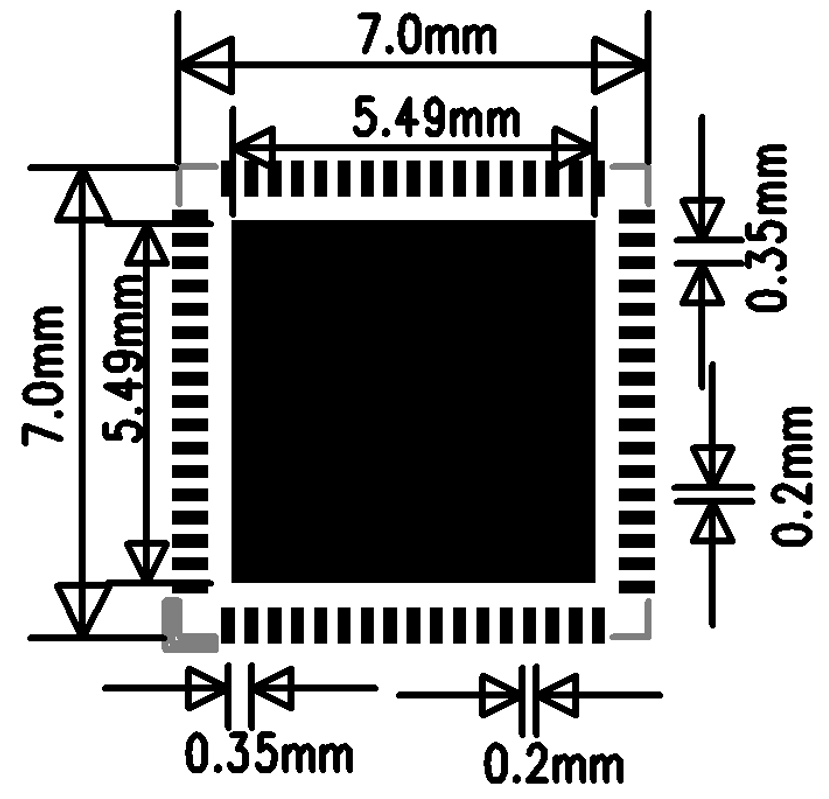

Figure 2-1 QFN68L Pin Distribution

Typical Application Schemes¶

The following diagram is a typical block diagram of an SF32LB52X sports watch, which includes display, storage, sensors, vibration motor, and audio input and output functions.

../_images/sf32lb52X-B-watch-app-diagram-52X.png

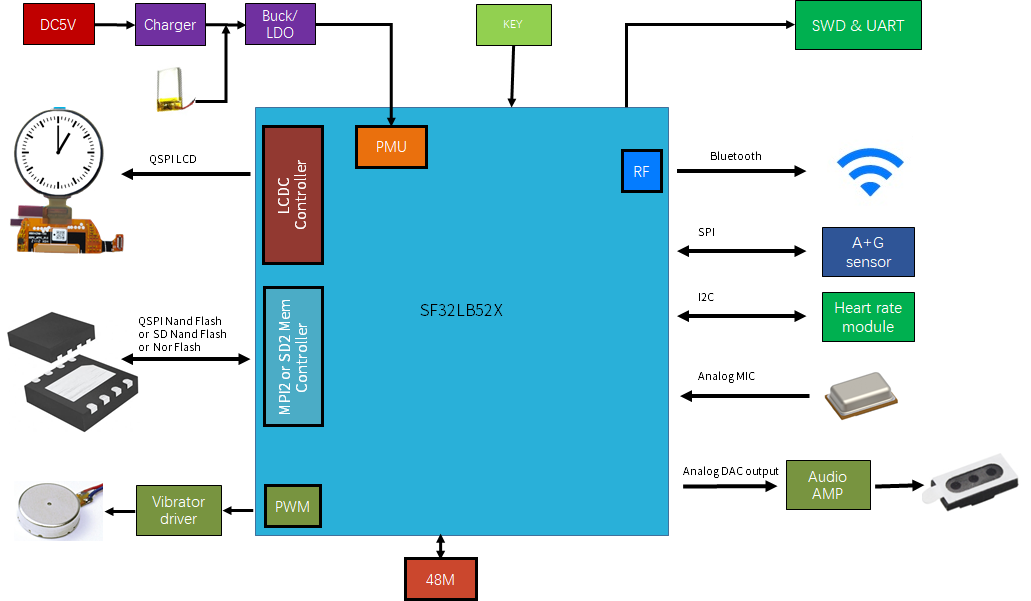

Figure 3-1 Sports Watch Block Diagram

Note

Big.LITTLE dual-CPU architecture, balancing high performance and low power design requirements
Integrated PMU module
Supports TFT or AMOLED displays with QSPI interface, with a maximum resolution of 512*512
Supports PWM backlight control
Supports external QSPI NOR/NAND Flash and SD NAND Flash storage chips
Supports dual-mode Bluetooth 5.3
Supports analog audio input
Supports analog audio output
Supports PWM vibration motor control
Supports SPI/I2C interface accelerometer/magnetometer/gyroscope sensors
Supports SPI/I2C interface heart rate/blood oxygen/EKG/magnetometer sensors
Supports UART debugging and programming interfaces
Supports Bluetooth HCI debugging interface
Supports mass production programming
Supports crystal calibration function
Supports OTA online upgrade function

Schematic Design Guidelines¶

Power Supply¶

Processor Power Supply Requirements¶

Table 4-1 Power Supply Requirements

Power Supply Pin	Minimum Voltage(V)	Typical Voltage(V)	Maximum Voltage(V)	Maximum Current(mA)	Detailed Description
PVDD	2.97	3.3	3.63	150	PVDD system power input, connect a 10uF capacitor

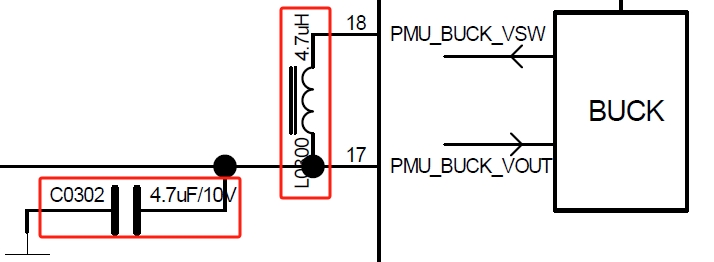

BUCK_LX	-	1.25	-	50	BUCK output pin, connect a 4.7uH inductor
BUCK_FB	-	1.25	-	50	BUCK feedback and internal power input pin, connect to the other end of the inductor, and an external 4.7uF capacitor
VDD_VOUT1	-	1.1	-	50	Internal LDO, connect an external 4.7uF capacitor, internal power, does not supply power to peripherals
VDD_VOUT2	-	0.9	-	20	Internal LDO, connect an external 4.7uF capacitor, internal power, does not supply power to peripherals
VDD_RET	-	0.9	-	1	Internal LDO, connect an external 0.47uF capacitor, internal power, does not supply power to peripherals
VDD_RTC	-	1.1	-	1	Internal LDO, connect an external 1uF capacitor, internal power, does not supply power to peripherals
VDDIOA	1.71	1.8/3.3	3.63	-	GPIO power input, connect an external 1uF capacitor
AVDD33	2.97	3.3	3.63	100	3.3V analog power input, connect an external 4.7uF capacitor
AVDD33_AUD	2.97	3.3	3.63	50	3.3V audio power input, connect an external 2.2uF capacitor
VDD_SIP	1.71	1.8/3.3	3.63	30	Internal LDO, or external power input⁽¹⁾ , connect an external 1uF capacitor
AVDD_BRF	2.97	3.3	3.63	100	Analog power input, connect an external 4.7uF capacitor
MIC_BIAS	1.4	-	2.8	-	MIC power output, connect an external 1uF capacitor

Note

⁽¹⁾

SF32LB52BU36, requires external 1.8V or 3.3V
SF32LB52BU56, requires external 3.3V
SF32LB52DUB6, requires external 1.8V
SF32LB52E/G/JUx6, internal LDO directly powers, no external power required

Important

When the system is in Hibernate mode, the VDD_SIP power supply must be turned off, otherwise there is a risk of leakage current on the I/O of the integrated storage. The power control signal for VDD_SIP should use the dedicated PA21 pin.

Processor BUCK Inductor Selection Requirements¶

Power Inductor Key Parameters

Important

L(Inductance) = 4.7uH ± 20%, DCR(DC Resistance) ≦ 0.4 ohm, Isat(Saturation Current) ≧ 450mA.

How to Reduce Standby Power Consumption¶

To meet the long battery life requirements of watch products, it is recommended to use load switches for dynamic power management of various functional modules in hardware design; if the module or path is always on, select appropriate components to reduce the static current.

When designing, pay attention to the hardware default state of the GPIO pins controlling the power switches, and add pull-up or pull-down resistors with M-level resistance to ensure that the load switches are default off.

In terms of power component selection, choose LDOs and Load Switch chips with low static current Iq and low shutdown current Istb, especially for always-on power chips, pay attention to the Iq parameter.

Processor Operating Modes and Wake-up Sources¶

Table 4-4 CPU Mode Table

Operating Mode	CPU	Peripherals	SRAM	IO	LPTIM	Wake-up Source	Wake-up Time
Active	Run	Run	Accessible	Flippable	Run	-	-
Sleep	Stop	Run	Accessible	Flippable	Run	Any Interrupt	<0.5us
DeepSleep	Stop	Stop	Not Accessible, Fully Retained	Level Held	Run	RTC, Wake-up IO, GPIO, LPTIM, Bluetooth	250us
Standby	Reset	Reset	Not Accessible, Fully Retained	Level Held	Run	RTC, Wake-up IO, LPTIM, Bluetooth	1ms
Hibernate	Reset	Reset	Not Accessible, Not Retained	High Impedance	Reset	RTC, Wake-up IO	>2ms

As shown in Table 4-5, the entire series of chips supports 15 wake-up interrupt sources in Standby and Hibernate modes.

Table 4-5 Interrupt Wake-up Source Table

Interrupt Source	Pin	Detailed Description
LWKUP_PIN0	PA24	Interrupt Signal 0
LWKUP_PIN1	PA25	Interrupt Signal 1
LWKUP_PIN2	PA26	Interrupt Signal 2
LWKUP_PIN3	PA27	Interrupt Signal 3
LWKUP_PIN10	PA34	Interrupt Signal 10
LWKUP_PIN11	PA35	Interrupt Signal 11
LWKUP_PIN12	PA36	Interrupt Signal 12
LWKUP_PIN13	PA37	Interrupt Signal 13
LWKUP_PIN14	PA38	Interrupt Signal 14
LWKUP_PIN15	PA39	Interrupt Signal 15
LWKUP_PIN16	PA40	Interrupt Signal 16
LWKUP_PIN17	PA41	Interrupt Signal 17
LWKUP_PIN18	PA42	Interrupt Signal 18
LWKUP_PIN19	PA43	Interrupt Signal 19
LWKUP_PIN20	PA44	Interrupt Signal 20

Clock¶

The chip requires two external clock sources, a 48MHz main crystal and a 32.768KHz RTC crystal. The specific specifications and selection criteria for the crystals are as follows:

Important

Table 4-6 Crystal Specifications

```

Crystal	Crystal Specification Requirements	Detailed Description
48MHz	7pF≦CL≦12pF (recommended value 8.8pF) △F/F0≦±10ppm ESR≦30 ohms (recommended value 22ohms)	Crystal power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use materials with relatively smaller CL and ESR within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12pF, no capacitors need to be soldered.

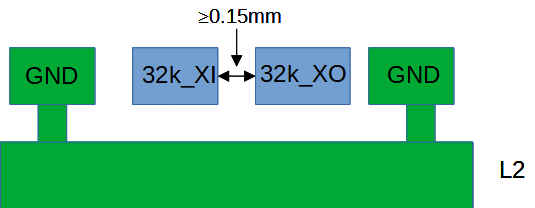

32.768KHz	CL≦12.5pF (recommended value 7pF) △F/F0≦±20ppm ESR≦80k ohms (recommended value 38Kohms)	Crystal power consumption is related to CL and ESR. The smaller the CL and ESR, the lower the power consumption. For optimal power performance, it is recommended to use materials with relatively smaller CL and ESR within the required range. Reserve parallel matching capacitors next to the crystal. When CL<12.5pF, no capacitors need to be soldered.

Table 4-7 Recommended Crystal List

Model	Manufacturer	Parameters
E1SB48E001G00E	Hosonic	F0 = 48.000000MHz, △F/F0 = -6 ~ 8 ppm, CL = 8.8 pF, ESR = 22 ohms Max TOPR = -30 ~ 85℃, Package = (2016 metric)
ETST00327000LE	Hosonic	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)
SX20Y048000B31T-8.8	TKD	F0 = 48.000000MHz, △F/F0 = -10 ~ 10 ppm, CL = 8.8 pF, ESR = 40 ohms Max TOPR = -20 ~ 75℃, Package = (2016 metric)
SF32K32768D71T01	TKD	F0 = 32.768KHz, △F/F0 = -20 ~ 20 ppm, CL = 7 pF, ESR = 70K ohms Max TOPR = -40 ~ 85℃, Package = (3215 metric)

For detailed material certification information, please refer to: SIFLI-MCU-AVL-Certification Table

RF¶

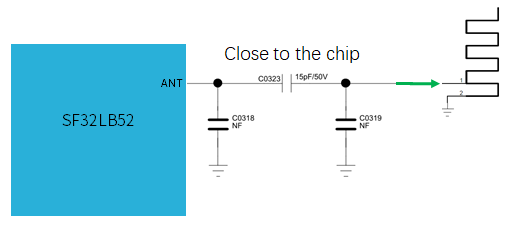

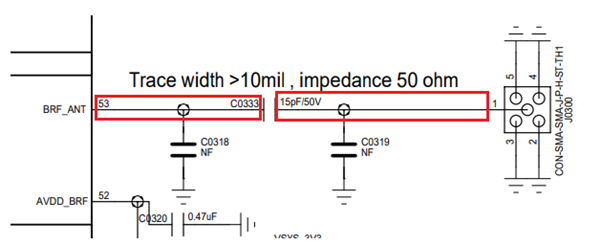

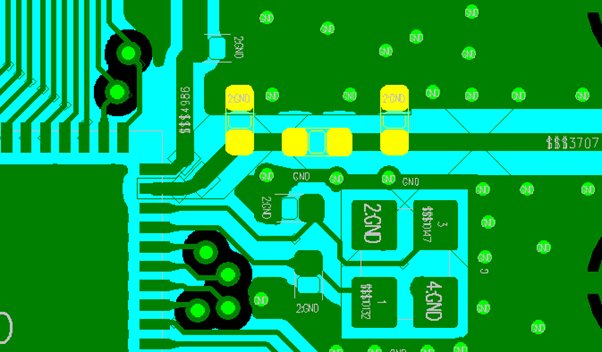

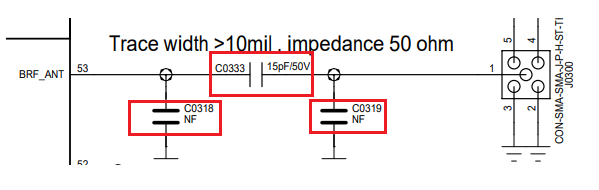

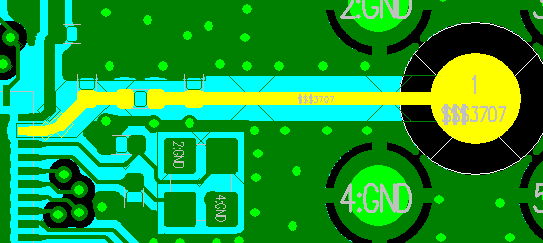

The RF trace requirement is a 50ohms characteristic impedance. If the antenna is well-matched, no additional components are required on the RF line. It is recommended to reserve a π-type matching network for stray filtering or antenna matching.

Figure 4-7 RF Circuit Diagram

Display¶

The chip supports 3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, and serial JDI interfaces. It supports 16.7M-colors (RGB888), 262K-colors (RGB666), 65K-colors (RGB565), and 8-color (RGB111) color depth modes. The maximum supported resolution is 512RGBx512.

Table 4-8 Supported LCD Driver List

Model	Manufacturer	Resolution	Type	Interface
RM69090	Raydium	368*448	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, MIPI-DSI
RM69330	Raydium	454*454	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, 8-bits 8080-Series MCU, MIPI-DSI
ILI8688E	ILITEK	368*448	Amoled	Quad data SPI, MIPI-DSI
SH8601A	Shenghe Technology	454*454	Amoled	3-Line SPI, 4-Line SPI, Dual data SPI, Quad data SPI, 8-bits 8080-Series MCU, MIPI-DSI
SPD2012	Solomon	356*400	TFT	Quad data SPI
GC9C01	Galaxycore	360*360	TFT	Quad data SPI
GC9B71	Galaxycore	320*380	TFT	Quad data SPI
ST77903	Sitronix	400*400	TFT	Quad data SPI
ICNA3311	Chipone	454*454	Amoled	Quad data SPI
FT2308	FocalTech	410*494	Amoled	Quad data SPI

SPI/QSPI Display Interface¶

The chip supports 3/4-wire SPI and Quad-SPI interfaces to connect to LCD displays. The signal descriptions are shown in the table below.

Table 4-9 SPI/QSPI Signal Connection Methods

spi signal	Pin	Detailed Description
CSx	PA03	Enable signal
WRx_SCL	PA04	Clock signal
DCx	PA06	Data/command signal in 4-wire SPI mode; Data1 in Quad-SPI mode
SDI_RDx	PA05	Data input signal in 3/4-wire SPI mode; Data0 in Quad-SPI mode
SDO	PA05	Data output signal in 3/4-wire SPI mode; Please connect to SDI_RDx
D[0]	PA07	Data2 in Quad-SPI mode
D[1]	PA08	Data3 in Quad-SPI mode
RESET	PA00	Reset display signal
TE	PA02	Tearing effect to MCU frame signal

JDI Display Interface¶

The chip supports a parallel JDI interface to connect to an LCD display, as shown in the following table.

Table 4-10 Parallel JDI Display Signal Connections

JDI Signal	I/O	Detailed Description
JDI_VCK	PA39	Shift clock for the vertical driver
JDI_VST	PA08	Start signal for the vertical driver
JDI_XRST	PA40	Reset signal for the horizontal and vertical driver
JDI_HCK	PA41	Shift clock for the horizontal driver
JDI_HST	PA06	Start signal for the horizontal driver
JDI_ENB	PA07	Write enable signal for the pixel memory
JDI_R1	PA05	Red image data (odd pixels)
JDI_R2	PA42	Red image data (even pixels)
JDI_G1	PA04	Green image data (odd pixels)
JDI_G2	PA43	Green image data (even pixels)
JDI_B1	PA03	Blue image data (odd pixels)
JDI_B2	PA02	Blue image data (even pixels)

EPD Display Interface¶

The chip supports an 8-bit parallel EPD display interface, as shown in the following table.

EDP Signal	I/O	Detailed Description
CLK	PA04	Clock source driver
CKV/CPV	GPIO	Clock gate driver
SPH	PA06	Start pulse source driver
SPV/STV	GPIO	Start pulse gate driver
LE	GPIO	Latch enable source driver
OE	GPIO	Output enable source driver
D0	PA07	Data signal source driver bit0
D1	PA08	Data signal source driver bit1
D2	PA37	Data signal source driver bit2
D3	PA39	Data signal source driver bit3
D4	PA40	Data signal source driver bit4
D5	PA41	Data signal source driver bit5
D6	PA42	Data signal source driver bit6
D7	PA43	Data signal source driver bit7
GMODE	GPIO	Output mode selection gate driver
VPOS	TPS	Positive power supply source driver
VNEG	TPS	Negative power supply source driver
VGH	TPS	Positive power supply gate driver
VGL	TPS	Negative power supply gate driver
VCOM	TPS	Common connection
TPS_WAKEUP	GPIO	TPS pmic wake up
TPS_PWRUP	GPIO	TPS pmic power up
TPS_SDA	I2C	TPS pmic I2C sda
TPS_SCL	I2C	TPS pmic I2C scl
TPS_PWRCOM	GPIO	TPS pmic VCOM_CTRL, vcom enable
TPS_GOOD	GPIO	TPS pmic power good output

:::{note}

In the table above, in the I/O column:
- Marked 'PA**' indicates that the IO must be allocated in this way
- Marked GPIO indicates that the IO can be allocated arbitrarily
- Marked TPS refers to the IO output from the TPS pmic chip to the screen
- Marked I2C indicates that the IO must be allocated for I2C functionality

:::


#### Touch and Backlight Interfaces

The chip supports an I2C format touch screen control interface and a touch status interrupt input, and also supports one PWM signal to control the enablement and brightness of the backlight power supply, as shown in the table below.

<div align="center"> Table 4-11 Touch and Backlight Control Connections </div>

```{table}
:align: center
| Touch and Backlight Signal | Pin | Detailed Description                   |
| ---------------- | ---- | -------------------------- |
| Interrupt        | PA43 | Touch status interrupt signal (can wake up) |
| I2C1_SCL         | PA42 | Touch screen I2C clock signal        |
| I2C1_SDA         | PA41 | Touch screen I2C data signal        |
| BL_PWM           | PA01 | Backlight PWM control signal            |
| Reset            | PA44 | Touch reset signal               |

Storage¶

Storage Interface Description¶

The chip supports four types of external storage media: SPI NOR Flash, SPI NAND Flash, SD NAND Flash, and eMMC.

Table 4-12 SPI NOR/NAND Flash Signal Connections

Flash Signal	I/O Signal	Detailed Description
CS#	PA12	Chip select, active low.
SO	PA13	Data Input (Data Input Output 1)
WP#	PA14	Write Protect Output (Data Input Output 2)
SI	PA15	Data Output (Data Input Output 0)
SCLK	PA16	Serial Clock Output
Hold#	PA17	Data Output (Data Input Output 3)

Table 4-13 SD NAND Flash and eMMC Signal Connections

Flash Signal	I/O Signal	Detailed Description
SD2_CMD	PA15	Command signal
SD2_D1	PA17	Data 1
SD2_D0	PA16	Data 0
SD2_CLK	PA14	Clock signal
SD2_D2	PA12	Data 2
SD2_D3	PA13	Data 3

Important

NOR Flash: No external pull-up resistors required.
Nand Flash: PA17 (Hold#) requires a pull-up resistor.
SD Nand Flash: PA13 (D3) and PA15 (CMD) require pull-up resistors.
eMMC: PA17 (D1), PA13 (D3), and PA15 (CMD) require pull-up resistors.
Pull-up resistors are recommended to be 7.5K.

Boot Configuration¶

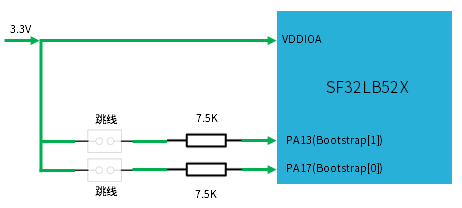

The chip supports booting from internal integrated Spi NOR Flash, external Spi NOR Flash, external Spi NAND Flash, external SD NAND Flash, and external eMMC. Specifically:

SF32LB52AUx6 has an internal integrated flash and boots from the internal integrated flash by default.
SF32LB52D/F/HUx6 has an internal integrated PSRAM and must boot from an external storage medium.

Figure 4-8 Recommended Bootstrap Pin Circuit Diagram

Table 4-14 Boot Option Settings

Bootstrap[1] (PA13)	Bootstrap[0] (PA17)	Boot From External Memory
L	L	SPI NOR Flash
L	H	SPI NAND Flash
H	X	SD NAND Flash
H	H	eMMC

Power Control for Boot Storage Medium¶

The chip supports power switch control for the boot storage medium to reduce power consumption during shutdown. The power switch enable pin must be controlled using PA21, and the enable level requirement is [high to turn on, low to turn off].

Important

For SF32LB52AUx6, which has an internal integrated flash, add a power switch to VDD_SIP.
For SF32LB52D/F/HUx6, which has an internal integrated PSRAM:
- If PVDD = 3.3V and VDD_SIP is powered by the internal LDO, a power switch for VDD_SIP is not required.
- If PVDD = 1.8V, a power switch for VDD_SIP is required.
The power supply for the external storage medium is independent of VDD_SIP and should have a separate power switch.

eMMC has two power domains, VCC and VCCQ. Method 1: Both power supplies can be controlled together, which reduces shutdown power consumption but results in slower eMMC recovery from sleep and higher average CPU power consumption. Method 2: VCC can be controlled separately, while VCCQ remains powered, which increases shutdown power consumption but results in faster eMMC recovery from sleep and lower average CPU power consumption.
All power switches for storage media related to booting must be controlled by PA21.
When an external NOR Flash of 32MB or larger is connected to the MPI, the Flash must be controlled by PA21 to allow power-off, ensuring that the Flash can exit 4BYTE Mode when the MCU restarts or enters Hibernate. For external NOR Flash of 16MB or smaller, the Flash can be powered continuously.
In the reference design, pull-up resistor positions are reserved for PA13 and PA17. Select the pull-up resistor based on the storage medium type, with a recommended value of 7.5K.

Buttons¶

Power On/Off Button¶

PA34 of the chip supports long-press reset functionality and can be designed as a button to achieve power on/off and long-press reset functions. The long-press reset function requires a high level to be effective, so it is designed to be pulled low by default, and the level becomes high when the button is pressed, as shown in Figure {number}.

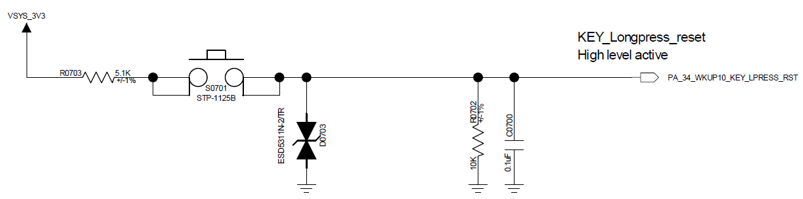

Figure 4-9 Power On/Off Button Circuit Diagram

Mechanical Knob Button¶

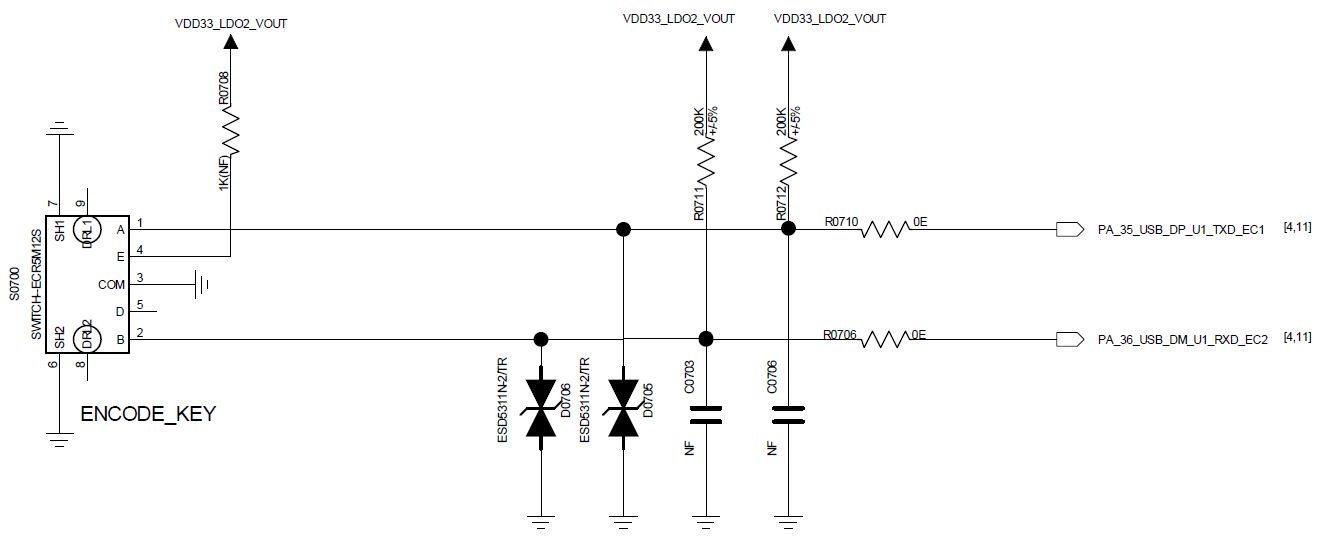

Figure 4-10 Mechanical Knob Button Circuit Diagram

Vibration Motor¶

The chip supports PWM output to control the vibration motor.

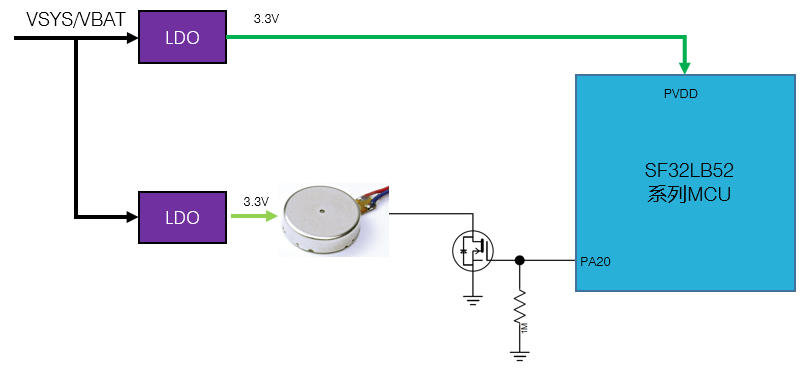

Figure 4-11 Vibration Motor Circuit Diagram

Audio Interface¶

The audio-related interfaces of the chip, as shown in Table 4-15, have the following characteristics:

Supports one single-ended ADC input, connected to an external analog MIC, with a coupling capacitor of at least 2.2uF added in between, and the power supply for the analog MIC is connected to the chip’s MIC_BIAS power output pin;
Supports one differential DAC output, connected to an external analog audio PA. The DAC output traces should be routed as differential lines with proper ground shielding, and the following should be noted: Trace Capacitance < 10pF, Length < 2cm.

Table 4-15 Audio Signal Connection Methods

Audio Signal	Pin	Detailed Description
BIAS	MIC_BIAS	Microphone Power
AU_ADC1P	ADCP	Single-ended Analog MIC Input
AU_DAC1P	DACP	Differential Analog Output P
AU_DAC1N	DACN	Differential Analog Output N

The recommended circuit for an analog MEMS MIC is shown in Figure 4-12, and the recommended circuit for an analog ECM MIC single-ended input is shown in Figure 4-13. The MEMS_MIC_ADC_IN and ECM_MIC_ADC_IN are connected to the ADCP input pin of the SF32LB52x.

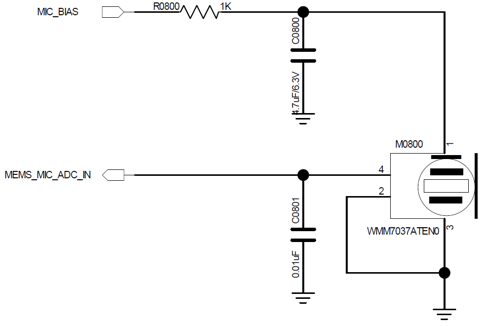

Figure 4-12 Analog MEMS MIC Single-ended Input Circuit Diagram

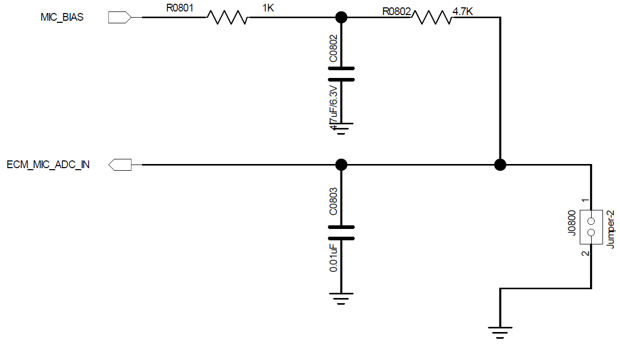

Figure 4-13 Analog ECM Single-ended Input Circuit Diagram

The recommended circuit for analog audio output is shown in Figure 4-14. Note that the differential low-pass filter within the dashed line should be placed close to the chip.

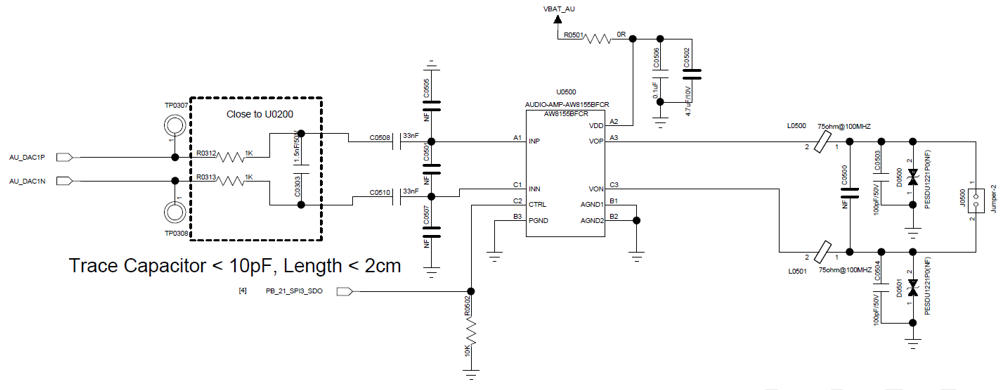

Figure 4-14 Analog Audio PA Circuit Diagram

Sensors¶

The chip supports heart rate, accelerometer, and magnetometer sensors. The power supply for the sensors should be controlled using a Load Switch with a low Iq.

UART and I2C Pin Configuration¶

The chip supports arbitrary pin mapping for UART and I2C functions, and all PA interfaces can be mapped to UART or I2C function pins.

GPTIM Pin Configuration¶

The chip supports arbitrary pin mapping for GPTIM functions, and all PA interfaces can be mapped to GPTIM function pins.

Debug and Download Interface¶

The chip supports the DBG_UART interface for downloading and debugging, using a UART-to-USB dongle with a 3.3V interface connected to a PC.

Table 4-16 Debug Port Connection Methods

DBG Signal	Pin	Detailed Description
DBG_UART_RXD	PA18	Debug UART Receive
DBG_UART_TXD	PA19	Debug UART Transmit

Production Programming and Crystal Calibration¶

Sichip Technology provides an offline programmer to complete production programming and crystal calibration. When designing the hardware, please ensure that at least the following test points are reserved: PVDD, GND, AVDD33, DB_UART_RXD, DB_UART_RXD, PA01.

For detailed programming and crystal calibration, refer to the “**_Offline Programmer User Guide.pdf” document, which is included in the development package.

Schematic and PCB Layout Checklists¶

Refer to the “Schematic checklist.xlsx” and “PCB checklist.xlsx” documents, which are included in the development package.

PCB Design Guidelines¶

PCB Package Design¶

The QFN68L package dimensions for the SF32LB52X series chips are: 7mm x 7mm x 0.85mm; number of pins: 68; pin pitch: 0.35mm. Detailed dimensions are shown in Figure 5-1.

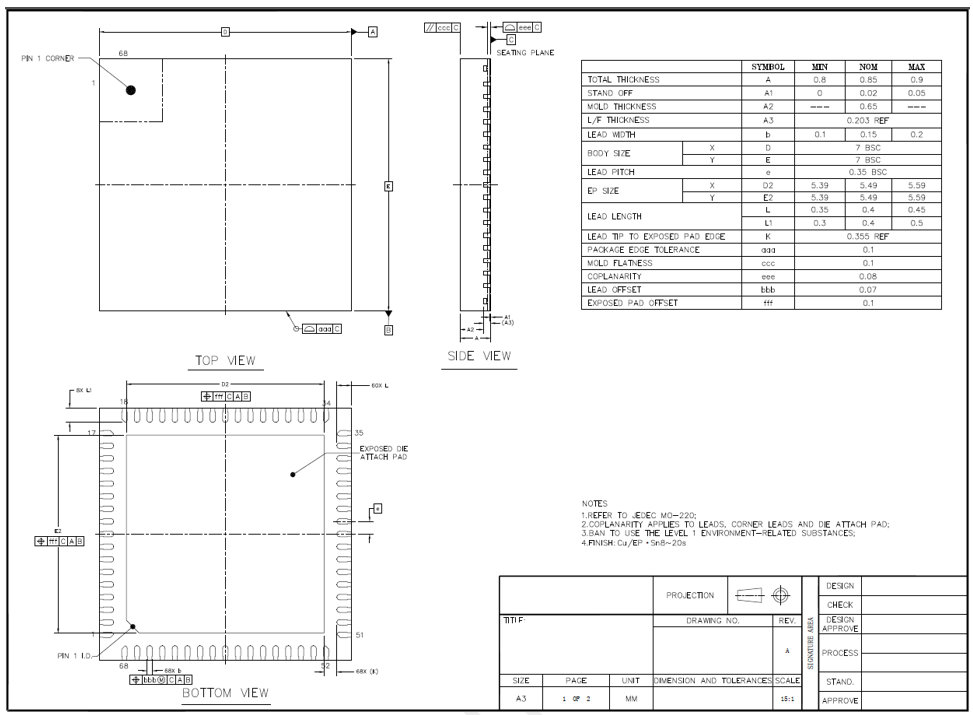

Figure 5-1 QFN68L Package Dimensions

Figure 5-2 QFN68L Package Shape

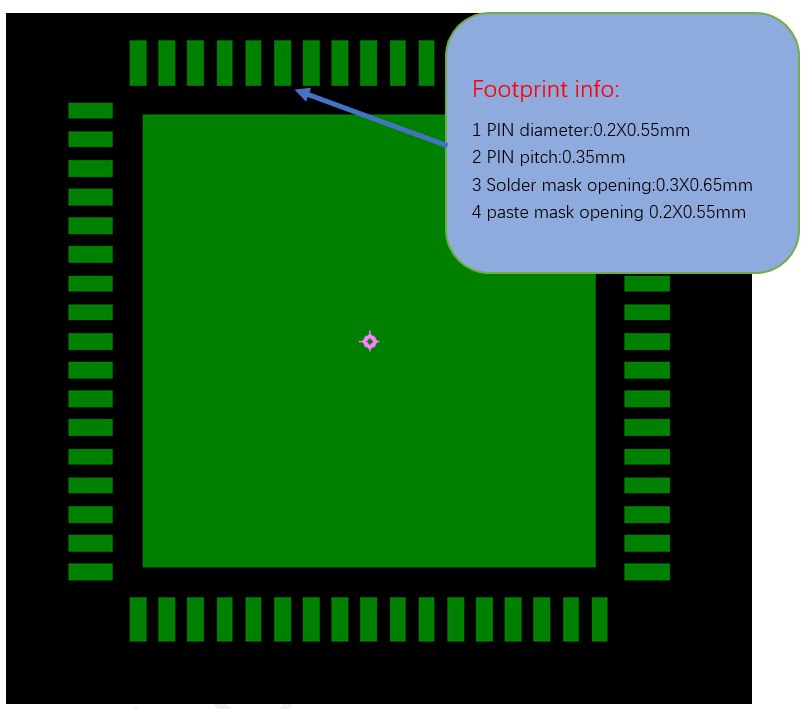

Figure 5-3 QFN68L Package PCB Pad Design Reference

PCB Stack-up Design¶

The SF32LB52X series chips support single and double-sided layouts, with components placed on a single side or capacitors and other components placed on the back of the chip. The PCB supports PTH (Plated Through Hole) design, and a 4-layer PTH is recommended. The recommended stack-up structure is shown in Figure 5-4.

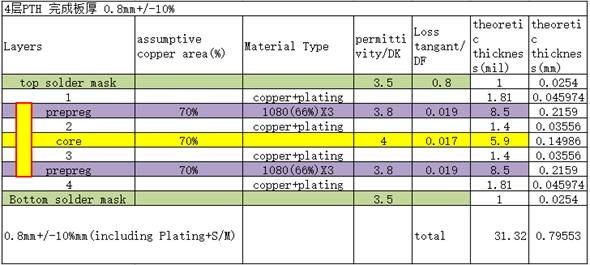

Figure 5-4 Recommended Stack-up Structure

General PCB Design Rules¶

General PCB design rules for PTH boards are shown in Figure 5-5.

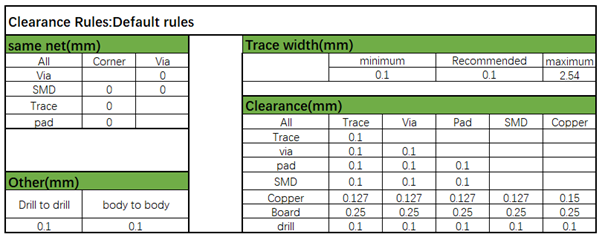

Figure 5-5 General Design Rules

PCB Trace Fan-out¶

For QFN package signal fan-out, all pins should be fanned out through the top layer, as shown in Figure 5-6.

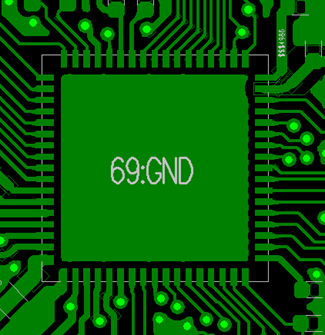

Figure 5-6 QFN Package Signal Fan-out

Figure 5-6 Surface Fanout Reference Diagram

Clock Interface Routing¶

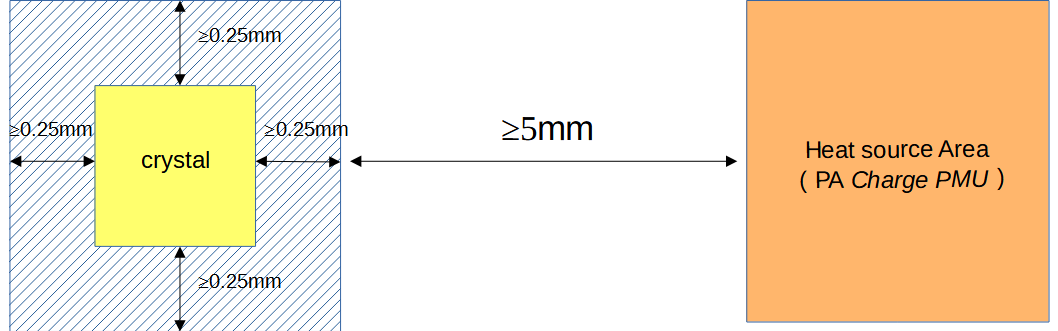

The crystal should be placed inside the shield, with a distance greater than 1mm from the PCB edge. It should be placed as far as possible from heat-generating components such as PA, Charge, and PMU circuits, with a preferred distance of more than 5mm to avoid affecting the crystal frequency. The crystal circuit should have a clearance of more than 0.25mm to avoid any other metal or components, as shown in Figure 5-7.

Figure 5-7 Crystal Layout Diagram

The 48MHz crystal routing is recommended to be on the surface layer, with a length controlled between 3-10mm and a line width of 0.1mm. It must be surrounded by a ground plane and kept away from VBAT, DC/DC, and high-speed signal lines. The surface layer and adjacent layers below the 48MHz crystal area should be kept clear of other routing, as shown in Figures 5-8, 5-9, and 5-10.

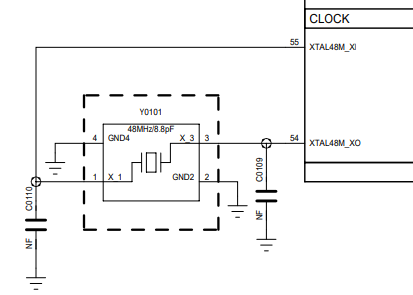

Figure 5-8 48MHz Crystal Schematic

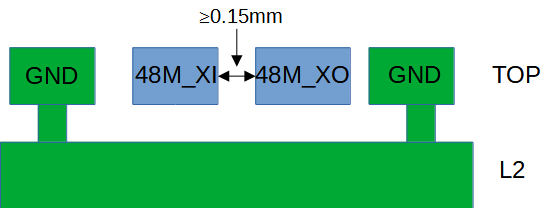

Figure 5-9 48MHz Crystal Routing Model

../_images/sf32lb52X-B-PCB-48M-ROUTE-REF.png

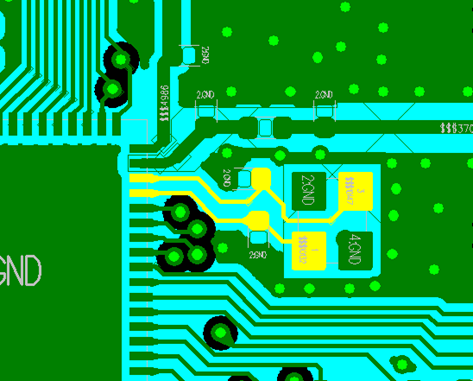

Figure 5-10 48MHz Crystal Routing Reference

The 32.768KHz crystal routing is recommended to be on the surface layer, with a length controlled to ≤10mm and a line width of 0.1mm. The parallel routing distance between 32K_XI and 32K_XO should be ≥0.15mm and must be surrounded by a ground plane. The surface layer and adjacent layers below the 32.768KHz crystal area should be kept clear of other routing, as shown in Figures 5-11, 5-12, and 5-13.

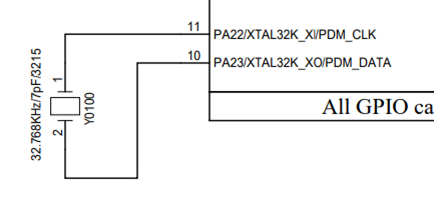

Figure 5-11 32.768KHz Crystal Schematic

Figure 5-12 32.768KHz Crystal Routing Model

../_images/sf32lb52X-B-PCB-32K-ROUTE-REF.png

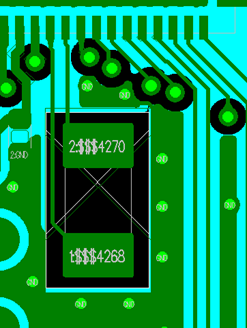

Figure 5-13 32.768KHz Crystal Routing Reference

RF Interface Routing¶

The RF matching circuit should be placed as close as possible to the chip end, not near the antenna end. The filter capacitors for the AVDD_BRF RF power supply should be placed as close as possible to the chip pins, with the capacitor ground pins connected directly to the main ground. The schematic and PCB layout of the π network and power circuit are shown in Figures 5-14 and 5-15.

Figure 5-14 π Network and Power Circuit Schematic

Figure 5-15 π Network and Power PCB Layout

The RF routing is recommended to be on the surface layer to avoid vias that can affect RF performance. The line width should be greater than 10mil and must be surrounded by a ground plane. Avoid sharp and right angles. The RF line should be controlled to 50 ohms, with additional ground vias on both sides, as shown in Figures 5-16 and 5-17.

Figure 5-16 RF Signal Circuit Schematic

Figure 5-17 RF Signal PCB Routing Diagram

Audio Interface Routing¶

AVDD33_AUD is the power supply pin for audio, and its filter capacitors should be placed close to the corresponding pins to ensure good grounding to the main ground of the PCB. MIC_BIAS is the power output pin for the microphone peripheral, and its corresponding filter capacitors should be placed close to the corresponding pins. Similarly, the filter capacitors for the AUD_VREF pin should also be placed close to the pins, as shown in Figures 5-18a and 5-18b.

../_images/sf32lb52X-B-SCH-AUDIO-PWR.png

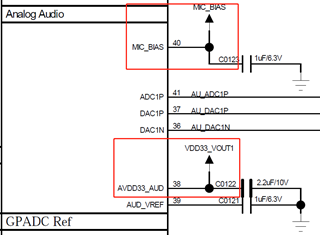

Figure 5-18a Audio Power Filter Circuit

../_images/sf32lb52X-B-PCB-AUDIO-PWR.png

Figure 5-18b Audio Power Filter Circuit PCB Reference Routing

The analog signal input to the ADCP pin should have the corresponding circuit components placed as close as possible to the chip pins, with the routing length kept as short as possible. The routing should be surrounded by a ground plane and kept away from other strong interference signals, as shown in Figures 5-19a and 5-19b.

hardware/assets/52xB/sf32lb52X-B-SCH-ADCP.png

Figure 5-19a ADCP Input Circuit Schematic

hardware/assets/52xB/sf32lb52X-B-PCB-ADCP.png

Figure 5-19b ADCP Input Circuit PCB Reference Routing

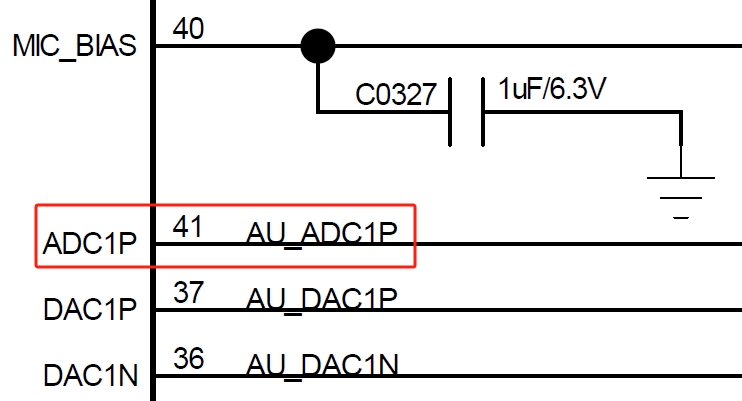

../_images/sf32lb52X-B-SCH-AUDIO-ADC.png

Figure 5-19a Analog Audio Input Schematic

../_images/sf32lb52X-B-PCB-AUDIO-ADC.png

Figure 5-19b Analog Audio Input PCB Design

The DACP/DACN pins for analog signal output should be placed as close as possible to the corresponding chip pins. Each P/N pair should be routed as differential lines, with the trace length as short as possible, parasitic capacitance less than 10pf, and a 3D ground plane should be implemented. The traces should be kept away from other strong interference signals, as shown in Figures 5-20a and 5-20b.

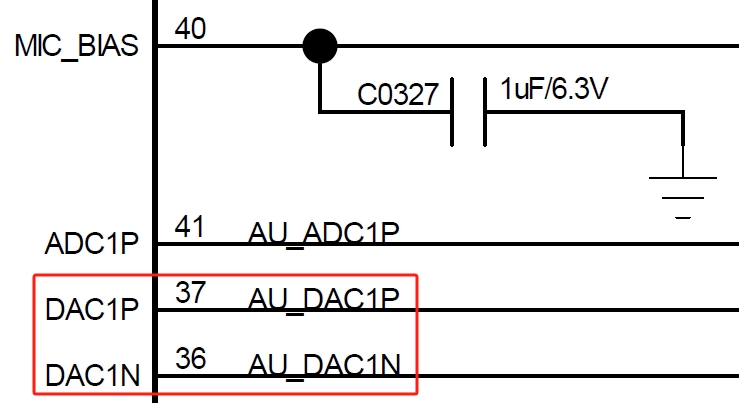

../_images/sf32lb52X-B-SCH-AUDIO-DAC.png

Figure 5-20a Analog Audio Output Schematic

../_images/sf32lb52X-B-PCB-AUDIO-DAC.png

Figure 5-20b Analog Audio Output PCB Design

USB Interface Routing¶

The USB traces PA35 (USB DP) / PA36 (USB_DN) must first pass through the ESD device pins before connecting to the chip. Ensure that the ESD device ground pins are well connected to the main ground. The traces should be routed as differential pairs, with a 90 ohm differential impedance control, and a 3D ground plane should be implemented, as shown in Figures 5-21a and 5-21b.

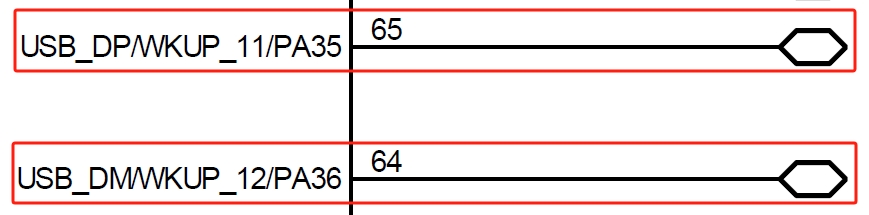

Figure 5-21a USB Signal Schematic

Figure 5-21b USB Signal PCB Design

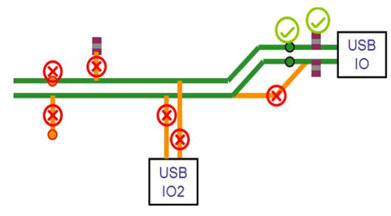

Figure 5-22a shows the component layout reference for USB signals, and Figure 5-22b shows the PCB routing model.

../_images/sf32lb52X-B-PCB-USB-LAYOUT.png

Figure 5-22a USB Signal Component Layout Reference

../_images/sf32lb52X-B-PCB-USB-ROUTE.png

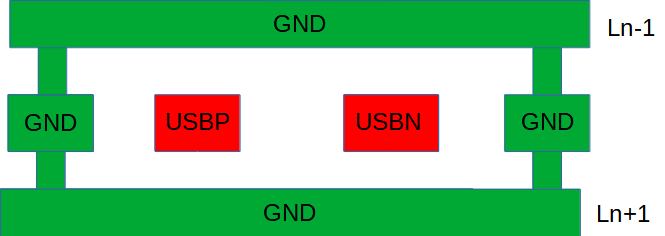

Figure 5-22b USB Signal Routing Model

SDIO Interface Routing¶

SDIO signal traces should be routed together as much as possible, avoiding separate routing. The total trace length should be ≤50mm, and the length difference within the group should be ≤6mm. The SDIO interface clock signal should be routed with a 3D ground plane, and the DATA and CMD signals should also be routed with a ground plane, as shown in Figures 5-23a and 5-23b.

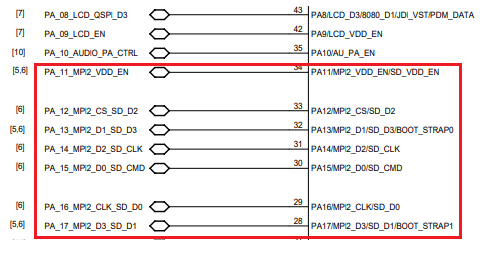

Figure 5-23a SDIO Interface Schematic

Figure 5-23b SDIO PCB Routing Model

DCDC Circuit Routing¶

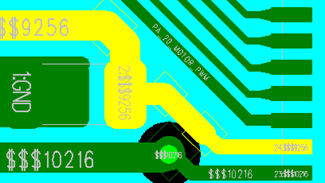

The power inductor and filter capacitors for the DC-DC circuit must be placed as close as possible to the chip pins. The BUCK_LX trace should be as short and wide as possible to ensure a low inductance in the entire DC-DC circuit loop. The BUCK_FB pin feedback trace should not be too thin and must be greater than 0.25mm. All DC-DC output filter capacitors should have multiple vias connecting their ground pins to the main ground plane. The power inductor area should not have copper pours on the top layer, and the adjacent layer must be a complete reference ground to avoid other traces passing through the inductor area, as shown in Figures 5-24a and 5-24b.

Figure 5-24a DC-DC Key Components Schematic

Figure 5-24b DC-DC Key Components PCB Layout

Power Supply Routing¶

PVDD is the power input pin for the built-in PMU module of the chip. The corresponding capacitors must be placed as close as possible to the pin, and the traces should be as wide as possible, not less than 0.4mm, as shown in Figure 5-25.

Figure 5-25 PVDD Power Routing Diagram

The filter capacitors for AVDD33, VDDIOA, VDD_SIP, AVDD33_AUD, and AVDD_BRF pins should be placed as close as possible to the corresponding pins. The trace width must meet the input current requirements, and the traces should be as short and wide as possible to reduce power ripple and improve system stability.

Other Interface Routing¶

Pins configured as GPADC signal pins must be routed with a 3D ground plane and kept away from other interference signals, such as battery level circuits and temperature check circuits.

EMI&ESD¶

Avoid long-distance routing on the top layer of the shield, especially for clock and power signals, which should be routed on inner layers and not on the top layer.
ESD protection devices must be placed as close as possible to the corresponding connector pins. Signal traces should first pass through the ESD protection device pins to avoid signal branching before passing through the ESD protection device.
The ground pins of the ESD device must be connected to the main ground via vias, ensuring that the ground plane traces are short and wide to reduce impedance and improve ESD device performance.

Other¶

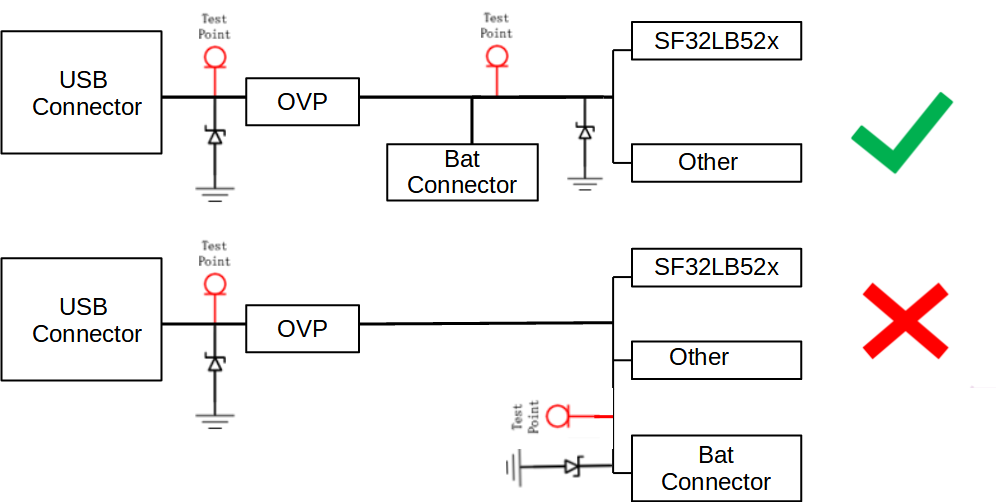

The USB charging cable test points must be placed in front of the TVS diode, and the TVS diode for the battery holder must be placed in front of the platform. The wiring must ensure that it passes through the TVS first and then to the chip end, as shown in Figure 5-27.

Figure 5-27 Power TVS Layout Reference

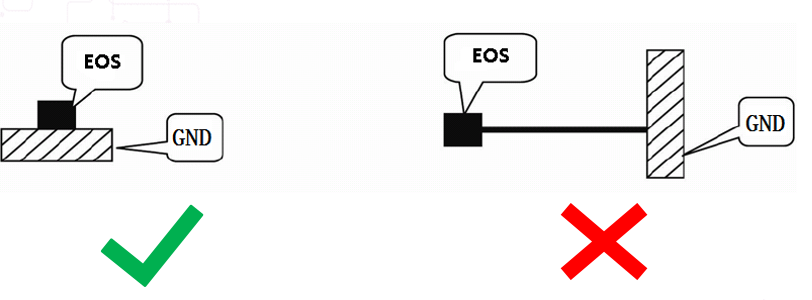

Figure 5-28 TVS Wiring Reference

The ground pin of the TVS diode should avoid long traces before connecting to ground, as shown in Figure 5-28.

Revision History¶

Version	Date	Release Notes
0.0.1	10/2024	Initial version

SF32LB52X - Hardware Design Guide¶

Introduction¶

Packaging¶

Typical Application Schemes¶

Schematic Design Guidelines¶

Power Supply¶

Processor Power Supply Requirements¶

Processor BUCK Inductor Selection Requirements¶

How to Reduce Standby Power Consumption¶

Processor Operating Modes and Wake-up Sources¶

Clock¶

RF¶

Display¶

SPI/QSPI Display Interface¶

JDI Display Interface¶

EPD Display Interface¶

Storage¶

Storage Interface Description¶

Boot Configuration¶

Power Control for Boot Storage Medium¶

Buttons¶

Power On/Off Button¶

Mechanical Knob Button¶

Vibration Motor¶

Audio Interface¶

Sensors¶

UART and I2C Pin Configuration¶

GPTIM Pin Configuration¶

Debug and Download Interface¶

Production Programming and Crystal Calibration¶

Schematic and PCB Layout Checklists¶

PCB Design Guidelines¶

PCB Package Design¶

PCB Stack-up Design¶

General PCB Design Rules¶

PCB Trace Fan-out¶

Clock Interface Routing¶

RF Interface Routing¶

Audio Interface Routing¶

USB Interface Routing¶

SDIO Interface Routing¶

DCDC Circuit Routing¶

Power Supply Routing¶

Other Interface Routing¶

EMI&ESD¶

Other¶

Related Documents¶

Revision History¶
